Ubiquiti airMAX Antenna AM‑5AC21‑60 5GHz BaseStation, 21dBi, 60
Merek: Ubiquiti Networks | Lihat selengkapnya produk Komputer & Aksesoris dari Ubiquiti NetworksDeskripsi singkat
Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > Ubiquiti airMAX Antenna AM‑5AC21‑60 5GHz BaseStation, 21dBi, 60
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Ubiquiti airMAX Antenna AM‑5AC21‑60 5GHz BaseStation, 21dBi, 60
Terima kasih Sudah berkunjung di ma-mai.Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
5GHz AirMax BaseStation, 21dBi, 60 deg, AC
AM-5AC21-60
airMAX® ac 2x2 BaseStation Sector Antenna The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
AM-5AC21-60
Dimensions (mm) 750 x 173 x 78
Weight 4.8 kg
Frequency Range 5.10 - 5.85 GHz
Gain 21 dBi
HPOL Beamwidth 60° (6 dBi)
VPOL Beamwidth 60° (6 dBi)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 391 N @ 200 km/h (88 lbf @ 125 mph)
Polarization Dual-Linear
Cross-pol Isolation 25 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Include

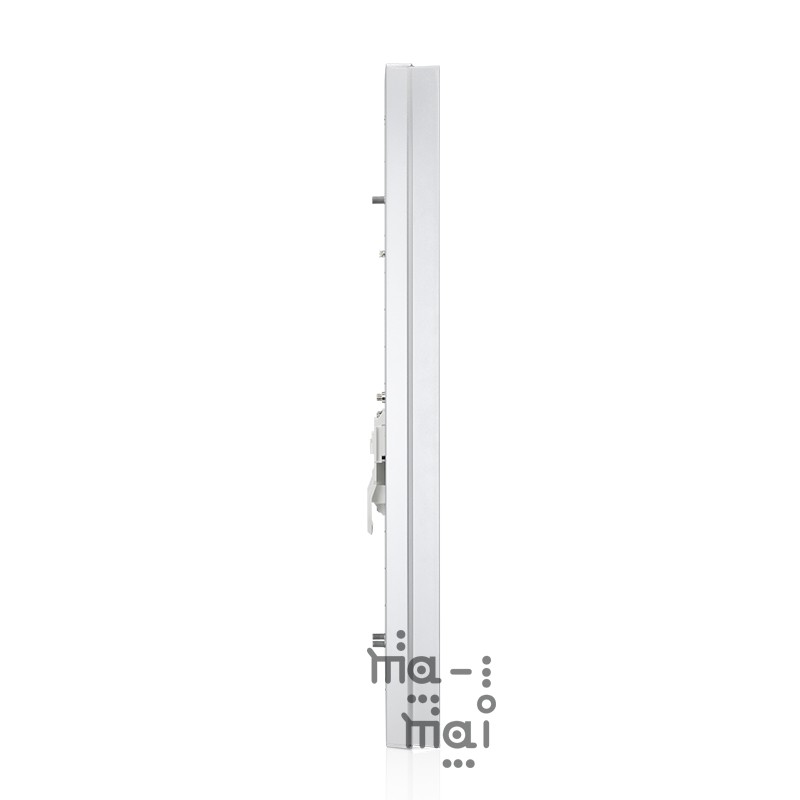

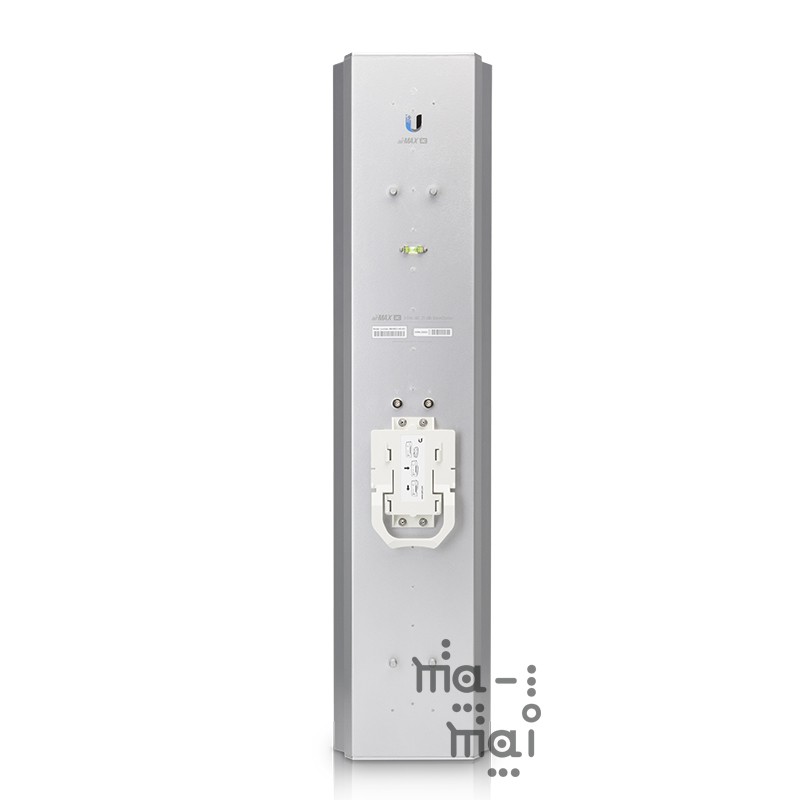

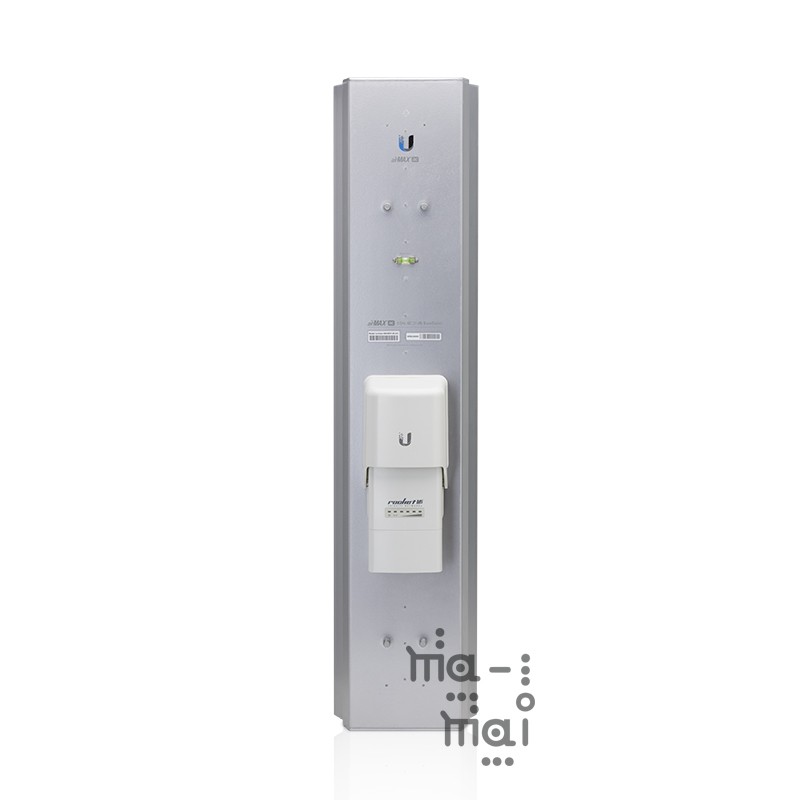

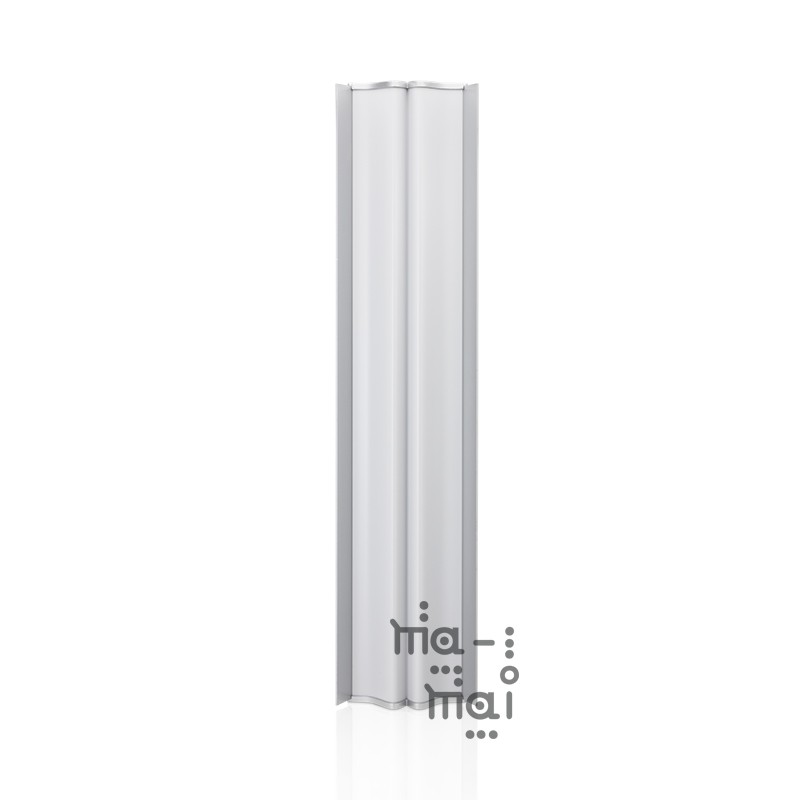

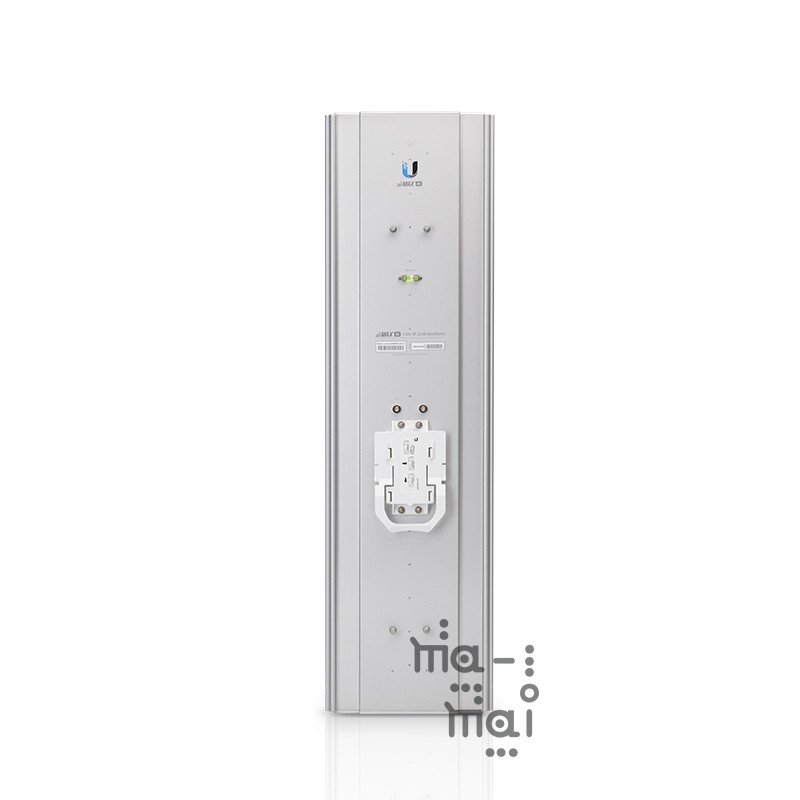

Gambar produk
