Detail Ubiquiti airMAX Antenna AM‑2G16‑902GHz, 16dBi, 90 deg
Terima kasih Sudah berkunjung di ma-mai.Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
2GHz AirMax BaseStation, 16dBi, 90 deg, Rocket Kit
AM-2G16-90
airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
AM-2G16-90
Dimensions (mm) 700 x 145 x 79
Weight 3.9 kg
Frequency Range 2.3 - 2.7 GHz
Gain 16.0 - 17.0 dBi
HPOL Beamwidth 91° (6 dB)
VPOL Beamwidth 90° (6 dB)
Electrical Beamwidth 9°
Electrical Downtilt 4°
Max. VSWR 1.5:1
Wind Survivability 125 mph
Wind Loading 19 lbf @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

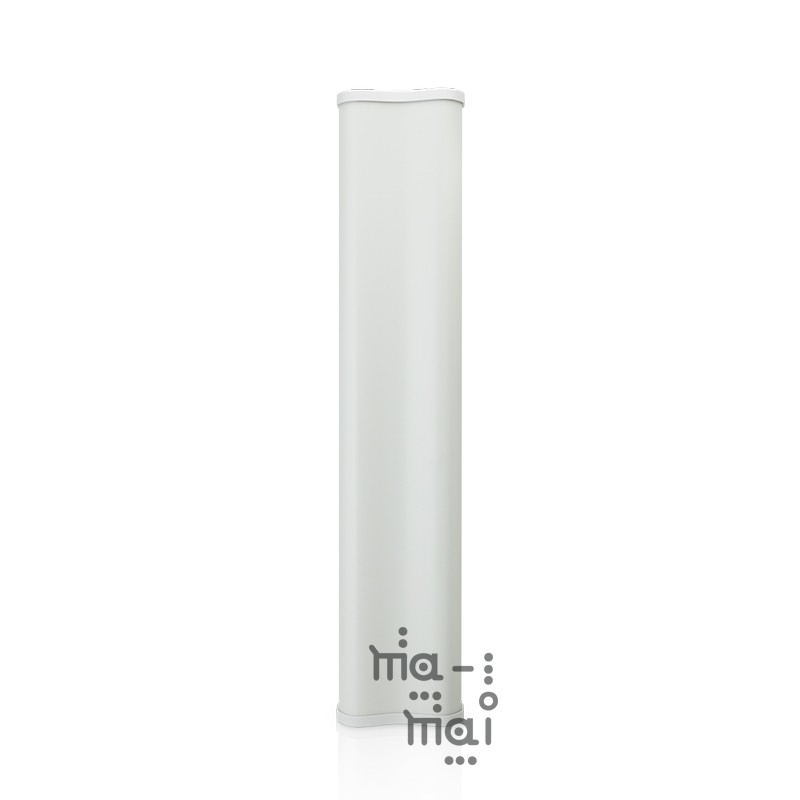

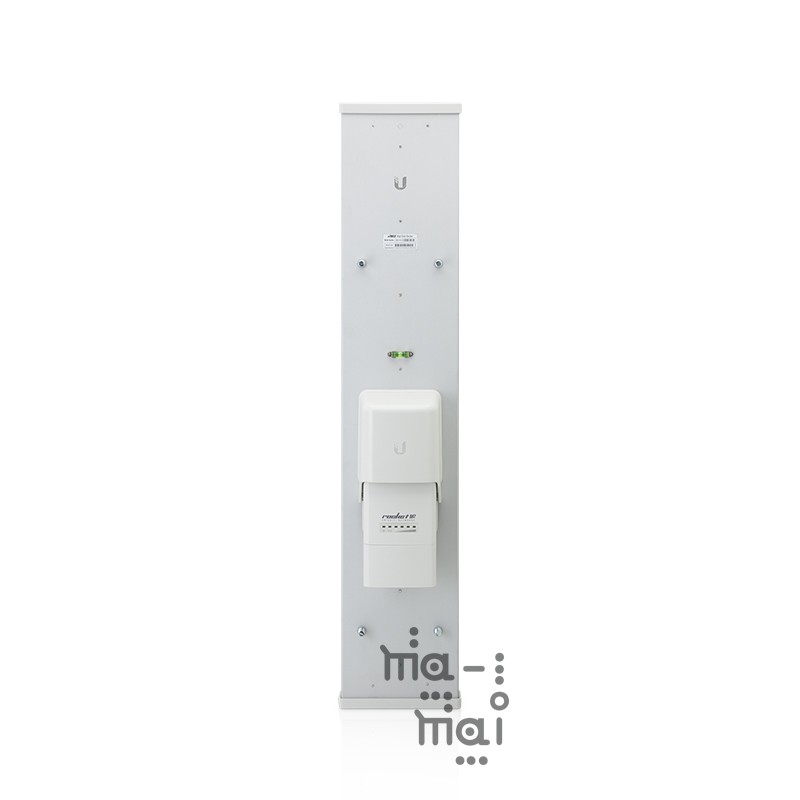

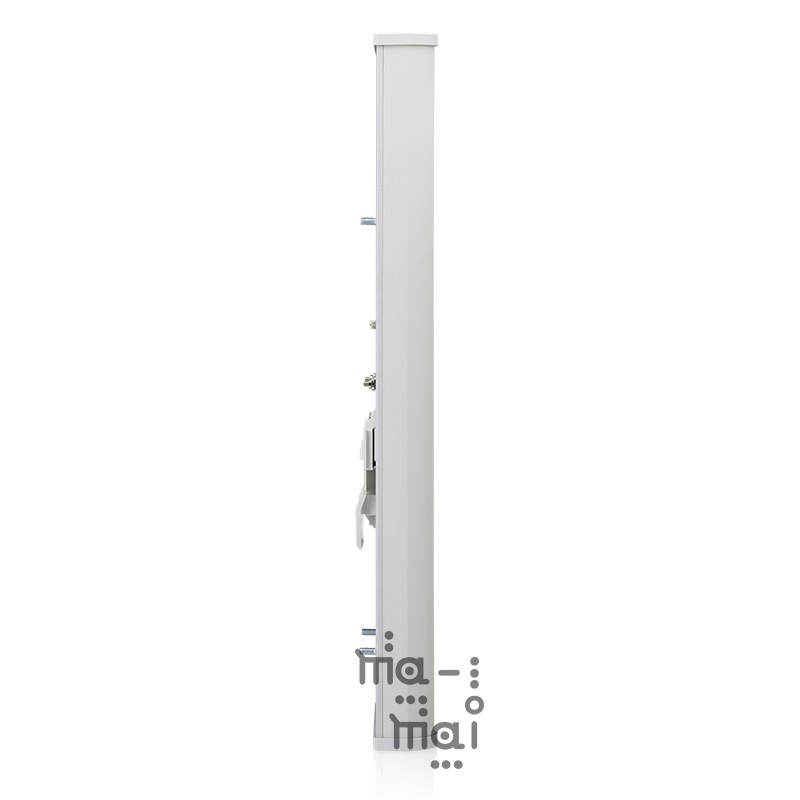

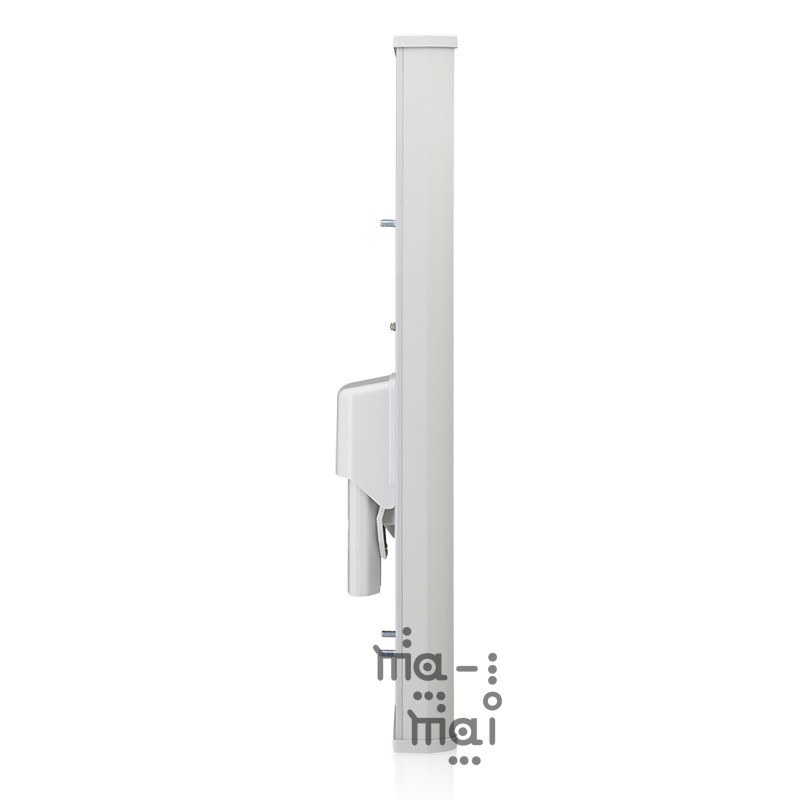

Gambar produk
