Ubiquiti Airfiber AF60-LR |AirFiber AF60 Long Range

Merek: Ubiquiti Networks | Lihat selengkapnya produk Komputer & Aksesoris dari Ubiquiti Networks
Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > Ubiquiti Airfiber AF60-LR |AirFiber AF60 Long Range
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Ubiquiti Airfiber AF60-LR |AirFiber AF60 Long Range

Ubiquiti AF60-LR Airfiber AF60 Long Range

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances.

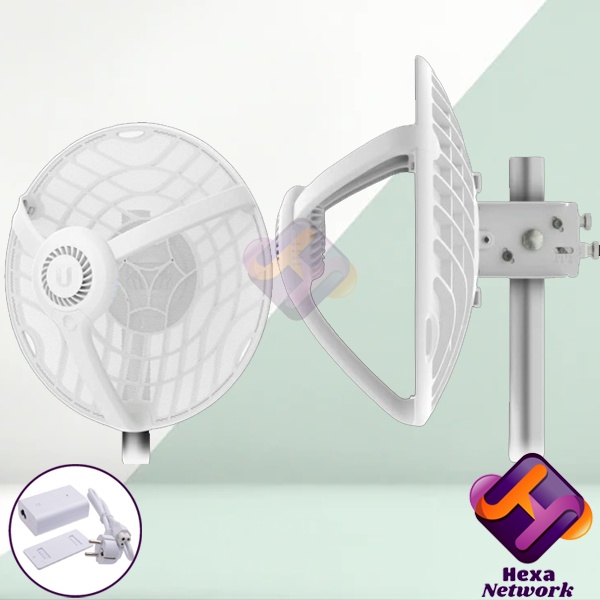

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.

Includes a built-in Bluetooth management radio for easy setup

Dimensions Ø413 x 360 mm (Ø16.3 x 14.2")
Weight Without mount: 1.5 kg (3.3 lb)
With mount: 2.7 kg (6 lb)
Enclosure materials Aluminum, UV stabilized polycarbonate
Mount material Galvanized steel
Mounting Precision Alignment Kit (included)
Pole compatibility: Ø25.4-76.2 mm (Ø1-3")
Wind loading 420 N at 200 km/h (94.4 lbf at 125 mph)
Hardware
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking interface GbE RJ45 port
RF Connections Internal
Max. Power Consumption 18W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported Voltage Range 48VDC ± 10%
ESD/EMP Protection Air/Contact: ± 24kV
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
Software
OS airOS®
Operating mode PtP only
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
Network Bridge mode
Services UISP, ping watchdog, NTP client, device discovery
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Software management Bluetooth management for easy setup over UISP app
WEB UI
