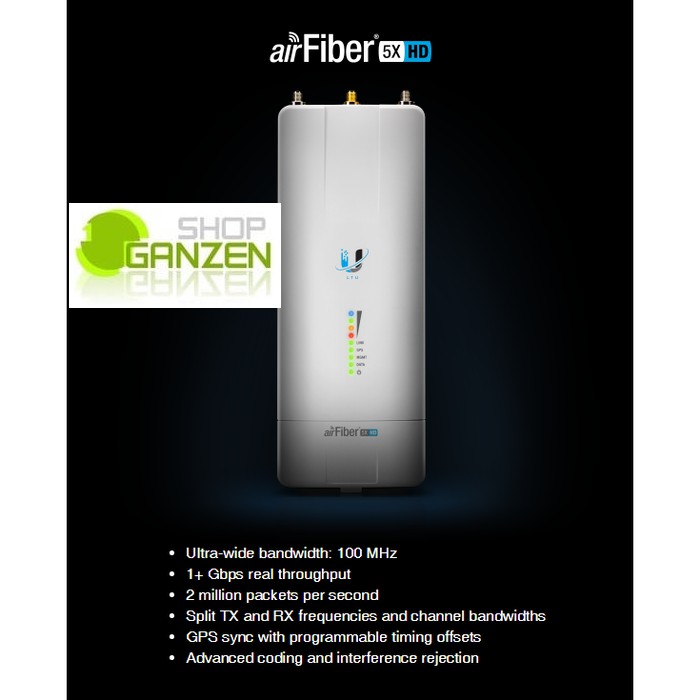

airFiber AF'''5XHD
Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight 0.35 kg (12.3 oz)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption 6-12W1
Supported Voltage Range +18 to +54VDC2
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Operating Temperature -40 to 55 C (-40 to 131 F)
Weatherproofing IP673
Certifications CE, FCC, IC
Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100/1000 Ethernet Port
Bluetooth v4.0
System
Processor airFiber LTU IC
Maximum Throughput 1.34 Gbps4, 5
Maximum Range 100 km4
Packets per Second 2+ Million6
Latency 1.5 ms - 3.5 ms7
Encryption AES-256
OS airOS LTU
Wireless Modes Master/Slave
1 Varies with firmware load and operational mode.
2 Full range depends on Ethernet cable length.
3 After installation of IP67 upgrade kit (included).
4 Throughput and range values may vary depending on the environmental conditions.
5
Assuming 4096QAM (available with future firmware upgrade).
6 Hardware bridge mode only.
7 Based on 2 ms frame.
Datasheet
11AI051718

www•ubnt•com
Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: www•ubnt•com/support/warranty
2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airMAX, airOS,
airView, AlignLock, LTU, NanoStation, Prism, Rocket, RocketDish, UNMS, and xRT are trademarks or registered trademarks of Ubiquiti Networks, Inc. in
the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store
