airFiber 5XHD Radio

AF-5XHD-US

True 1Gbps+ spectrally efficient, noise resilient PTP technology specifically designed for WISP’s

Ubiquiti continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber® AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish™ antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection from dust and water.

TECHNICAL SPECIFICATIONS
Height x Width x Depth: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight: 0.35 kg (0.77 lb)
GPS: External, Magnetic Base

Operating Frequency
5150-5250MHz
5740-5850MHz

Power
Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
Power Method: Dual Passive Power over Ethernet
Max. Power Concumption: 12W
Supported Voltage Range: 20-50VDC
Networking Interface
Data Port: (1) 10/100/1000 Ethernet Port
Configuration Port: (1) 10/100/1000 Ethernet Port

System
Processor: LTU IC
Maximum Throughput: 1+ Gbps
Maximum Range: 200+ km*
Encryption: 128-bit AES
Operating System: airOS F

Radio Frequency
Max TX Power: 29 dBm (Dependent on Regulatory Region)

Frequency Accuracy
± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization

Channel Bandwidth
10/20/30/40/50/60/80/100 MHz Selectable
Programmable Uplink and Downlink Duty Cycles

Environment
Operating Temperature: -40 to 55° C (-40 to 131° F)

Power
Power Method: 802.3af
Power Supply: UniFi Switch (PoE)
Max. Power Concumption: 10.5W

Certifications
FCC
Mounting
airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)

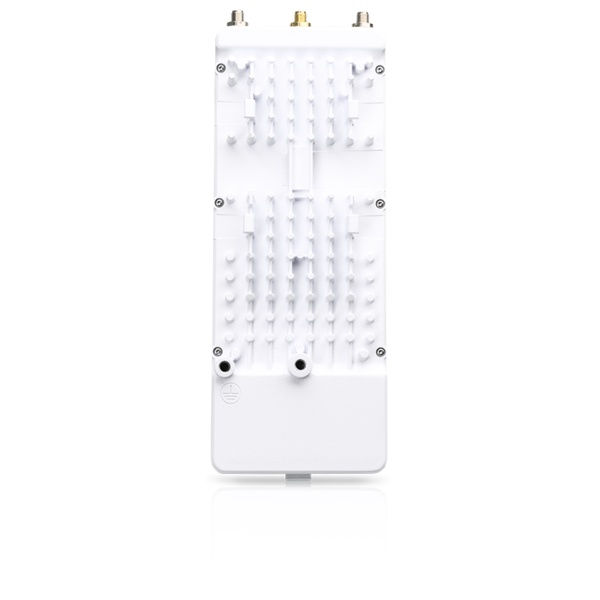

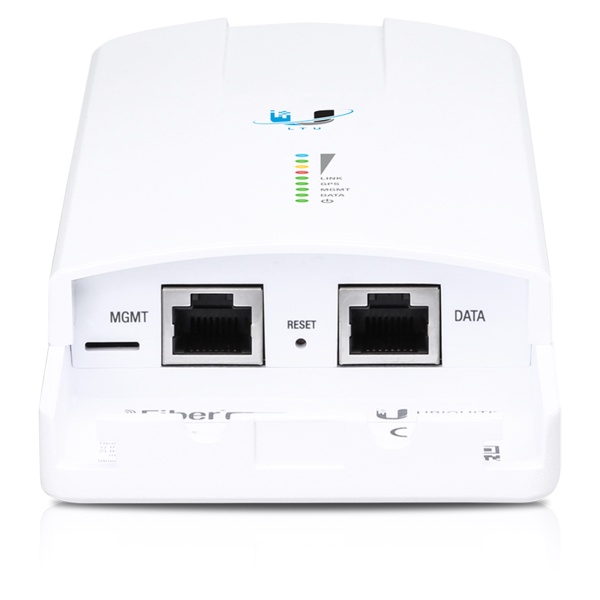

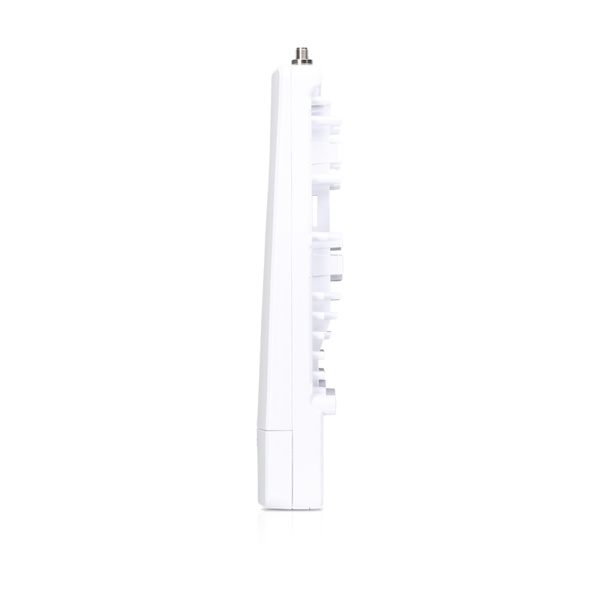

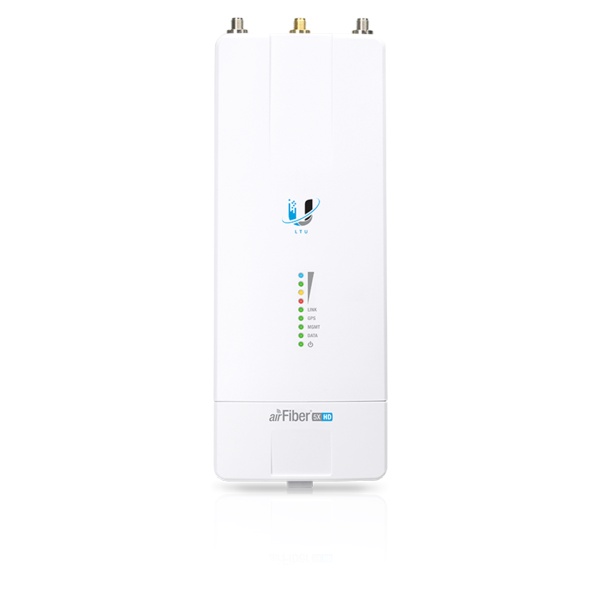

Gambar produk
