airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances

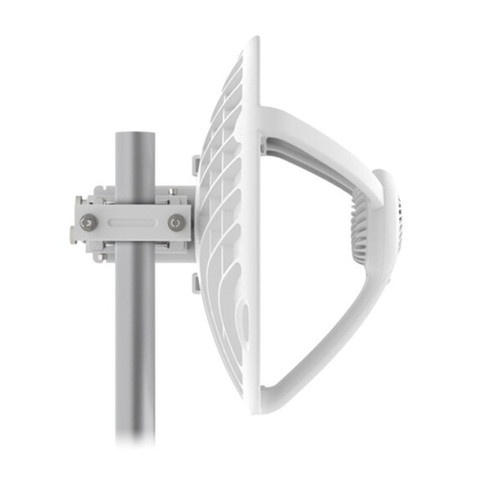

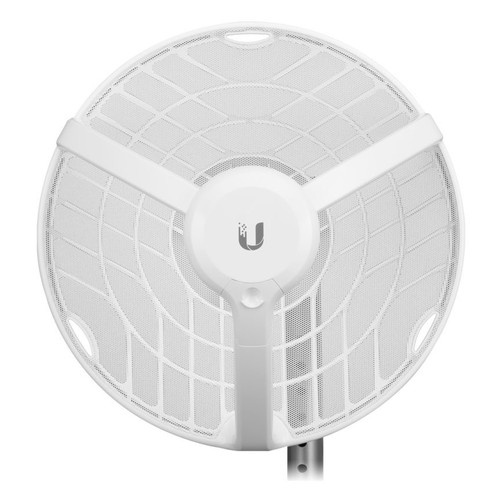

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.
Includes a built-in Bluetooth management radio for easy setup.
Features:
Low-Interference 60 GHz Spectrum
Integrated GPS
Long Range, Up to 12 km
Precision Alignment Mount Included
link.ui.com Planning Support
Quick Setup Using the *UISP™ App via Bluetooth
Processor Quad-Core ARM Cortex A7
Memory 256 MB DDR3
Networking Interface 10/100/1000 Mbps RJ45 Ethernet
RF Connections Internal
Max. Power Consumption 18W
Power Method Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply 48VDC, 0.65A Gigabit PoE Adapter
Supported Voltage Range 48VDC ± 10%
ESD/EMP Protection Air/Contact: ± 24kV
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
LEDs
Power Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Network Management System (UISP™)
Blue: Connected to UISP
Ethernet Flashing Blue: Ethernet Trafic Detected
GPS Blue: Receiving at Least (4) GPS Satellite Signals
60G Blue: Active Connection
System
Maximum Throughput 1.8 Gbps
Maximum Range 12 km
Encryption WPA2-PSK (AES)
Software
OS airOS®
Modes PtP Only
Services UISP, Ping Watchdog, NTP Client, System Log
Utilities Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test
Network Bridge Mode
Management interface Bluetooth management for easy setup over UISP™ App
WEB UI
Minimum Software Requirements Modern Web Browser or Android/iOS Smartphone
Technology Wave
RF
Operating Frequency* 57 to 71 Ghz
GPS Yes
Channel Bandwidth 2160, 1080 Mhz
