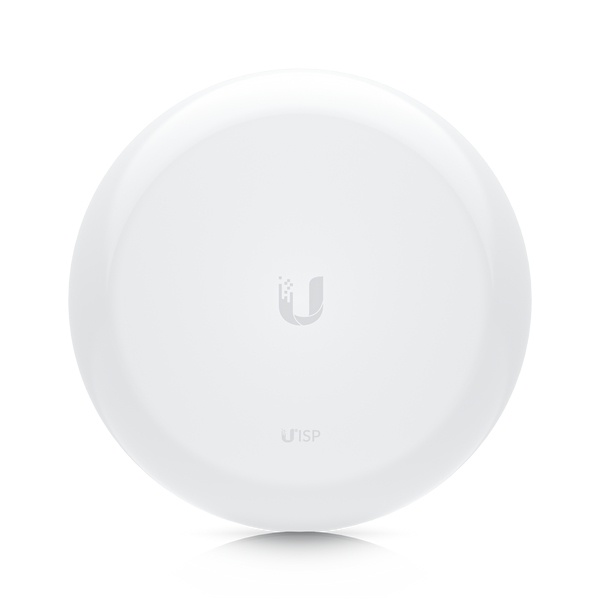

Ubiquiti AF60-HD AirFiber 60 HD AF60 HD

Detail Ubiquiti AF60-HD AirFiber 60 HD AF60 HD

Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.
Features:
Low-interference 60 GHz spectrum
Up to a 2 km link range
Supports channel bonding to achieve up to a 6 Gbps throughput rate
(1) 10G SFP+ port
Terragraph-certified
Integrated GPS
Link planning support via ISP Design Center
Simple, Bluetooth-powered setup with the UISP™ Mobile app
Mechanical
Dimensions
Ø189 x 89 mm (Ø7.4 x 3.5")
Weight
Without mount: 1.8 kg (3.9 lb)
With mount: 2.95 kg (6.5 lb)
Enclosure materials
Aluminum alloy, UV stabilized plastic
Mount material
Stainless steel (SUS304)
Mount
60G precision alignment pole mount (included)
Wind loading
64 N at 200 km/h (14.39 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Processor
Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory
2 GB DDR4
Networking interfaces
(1) GbE RJ45 port
(1) 1/10G SFP+ port
Button
Factory reset
RF connections
Internal
Max. power consumption
29.31W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-Pairs (4, 5+; 7, 8-)
Power supply
48VDC, 0.65A gigabit PoE adapter (included)
Supported voltage range
48VDC ± 10%
Operating temperature
-40 to 55° C (-40 to 131° F)
Operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE, terragraph
LEDs
Power
Flashing white: bootup in progress
White: not connected to UISP console
Blue: connected to UISP console
Ethernet
Flashing blue: ethernet activity
GPS
Blue: receiving at least (4) GPS satellite signals
60G
Blue: active connection
System
Maximum throughpu
