Ubiquiti AF60 airFiber 60GHz/5 GHz Radio System with 1+Gbps Throughput

Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > Ubiquiti AF60 airFiber 60GHz/5 GHz Radio System with 1+Gbps Throughput
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Ubiquiti AF60 airFiber 60GHz/5 GHz Radio System with 1+Gbps Throughput

AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.
Features:
60 GHz radio with 5 GHz radio backup
Low-interference 60 Ghz spectrum
Long range, up to 2 km
Up to 1 Gbps with low latency
Integrated GPS
Full and half bandwidth support
Dimensions 413 x 413 x 320 mm
(16.26 x 16.26 x 12.60")
Weight
Without Mount
With Mount
1.4 kg (3.09 lb)
1.8 kg (3.97 lb)
Enclosure Aluminum, UV-stabilized Polycarbonate
Antenna Gain
5 GHz
60 GHz
11 dBi
38 dBi
Networking Interface (1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption 11W
Power Method Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range +22 to +26VDC
LEDs Power/Ethernet/5G/60G/GPS
Mounting Pole Mount (Included)
Wind Loading 420 N @ 200 km/h
(94.4 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C
(-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
System
Maximum Throughput 1.8 Gbps
Maximum Range 2+ km
Encryption WPA2-PSK (AES)/WPA2 Enterprise
OS airOS GP
Radio
Max. Conducted TX Power
5/60 GHz Combined
25 dBm
Channel Bandwidth
60 GHz
5 GHz
2160 MHz
20/40/80 MHz

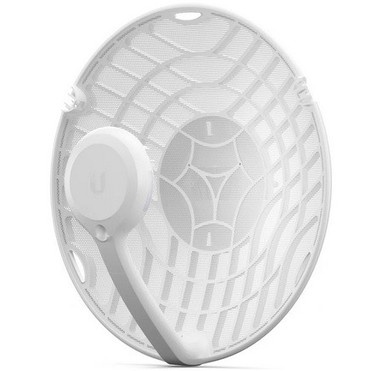

Gambar produk
