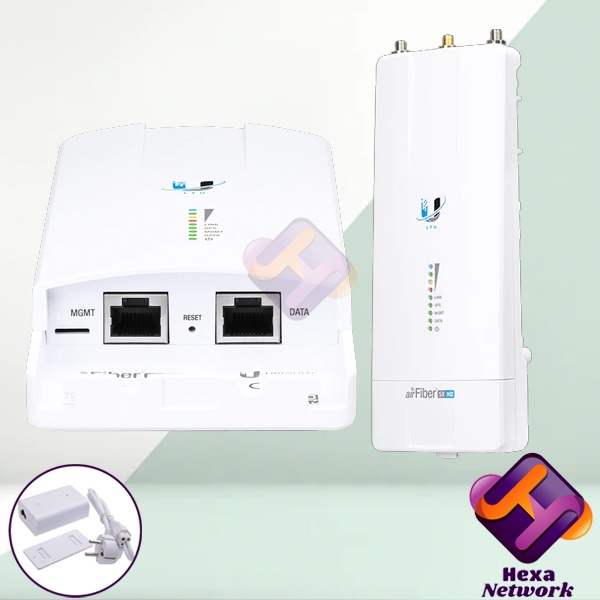

Ubiquiti AF-5XHD Airfiber AF 5X HD

Detail Ubiquiti AF-5XHD Airfiber AF 5X HD

Ubiquiti Networks AF-5XHD 5 GHz Carrier Radio with LTU Technology

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP

airFiber AF-5XHD
Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight 0.35 kg (12.3 oz)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption 6-12W1
Supported Voltage Range +18 to +54VDC2
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Operating Temperature -40 to 55° C (-40 to 131° F)
Weatherproofing IP673
Certifications CE, FCC, IC
System
Processor airFiber LTU IC
Maximum Throughput 1.34 Gbps4, 5
Maximum Range 100 km4
Packets per Second 2+ Million6
Latency 1.5 ms - 3.5 ms7
Encryption AES-256
OS airOS LTU
Wireless Modes PtP Master/Slave

Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100/1000 Ethernet Port
Bluetooth v4.0

Radio
Max. Conducted TX Power 29 dBm
(Dependent on Regulatory Region)
Frequency Accuracy < 2 ppm
Channel Bandwidth 10/20/30/40/50/60/80/100 MHz Selectable
Programmable Uplink and Downlink Duty Cycles

Operating Frequency (MHz)
Worldwide 4800 - 6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850

Antenna Compatibility
The airFiber AF-5XHD radio is designed for use with the following airFiber X antenna models:

AF-5G23-S45
AF-5G30-S45
AF-5G34-S45
The AF-5XHD can also operate with the following RocketDish™ antenna models:

RD-5G30*
RD-5G34*
