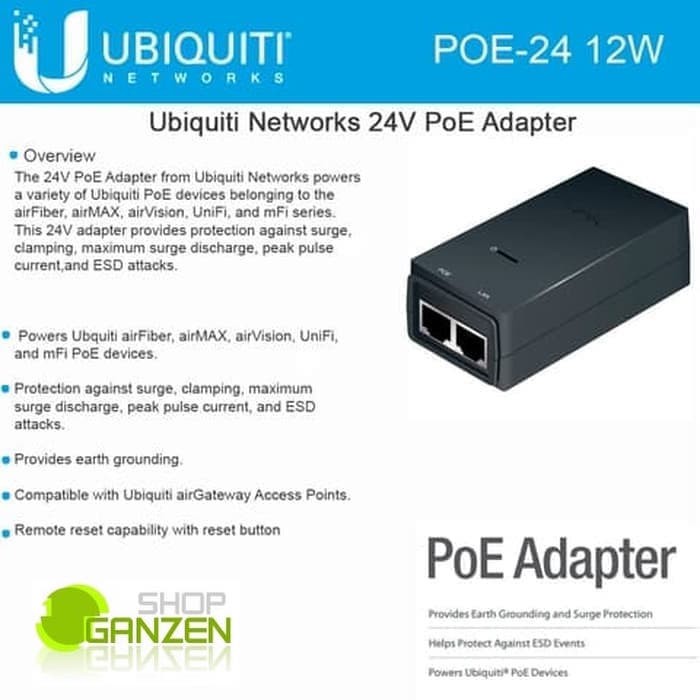

Detail Ubiquiti Adaptor Poe 24V 0,5A / Poe 24V 12W

The POE-24 (24V, 12W) features earth grounding/ESD protection, power LED, and is available in USA (NEMA 5-15). Remote re-start capability is a key feature of the power injector.

Product Specifications
Dimensions: 87 x 44 x 29mm (2.43 x 1.73 x 1.14")
Weight: 92g (3.25oz)
Remote Reset Capability: Yes
Reset Button Yes
Input Voltage: 90-260VAC @ 47064Hz
Input Current:
0.3A @ 120VAC
0.2A @ 240VAC
Inrush Current:
30A Peak @ 120VAC
60A Peak @ 230VAC
Efficiency: 75+%
Output Ripple: 1% Max.
Switching Frequency: 50kHz
Line Regulation: 1%
Load Regulation: 3%
2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
Operating Temperature: 0 to 40C (32 to 104F)
Storage Temperature: -30 to 70C (-22 to 158F)
Operating Humidity: 35 to 95% non-condensing
AC Connector: IEC-320 C6
Data IN/PoE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20us) Power
Peak Pulse Current: 36A (10/1000us) Data
Shunt Capacitance: 5pF Data
Response Time: 1ns
