UART SPI Modul Logic Level 4 Channel Modul IIC I2C Level 5V Ke 3V

Komputer & Aksesoris > Proyektor & Aksesoris > Pointer > UART SPI Modul Logic Level 4 Channel Modul IIC I2C Level 5V Ke 3V
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:RAFTECHLihat semua produk Elektronik oleh RAFTECH
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail UART SPI Modul Logic Level 4 Channel Modul IIC I2C Level 5V Ke 3V

UART SPI 4 Channel modul IIC I2C Logic Level Converter Bi-Directional Module 5V to 3V
Four MOS tube : four channel , two-way conversation 3V and 5V
The power input with anti-reverse protection, integrated 3.3VLDO,and provide current less than 150mA
With power indicate
Used for UART/IIC/1-WIRE/SPI
As part of the microcontroller development board and equipment is 3.3V,
Application scope:
1, 5V microcontroller and 3.3V microcontroller serial communication.
2, 3.3V serial download and 5V microcontroller serial communication.
3, 5V microcontroller and 3.3V Application module serial communication.

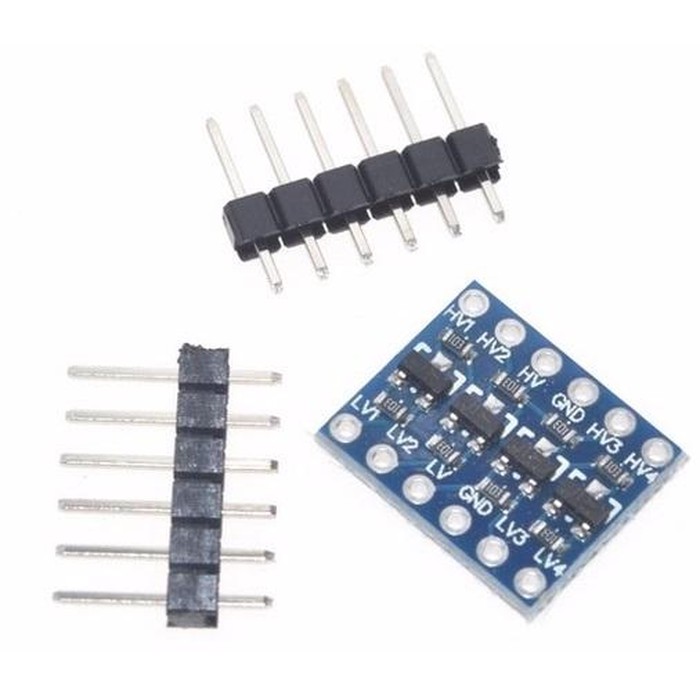

Gambar produk

UART SPI Modul Logic Level 4 Channel Modul IIC I2C Level 5V Ke 3V
UART SPI Modul Logic Level 4 Channel Modul IIC I2C Level 5V Ke 3V
