Detail Two Way Converter UART TTL to RS485 TX RX industrial grade

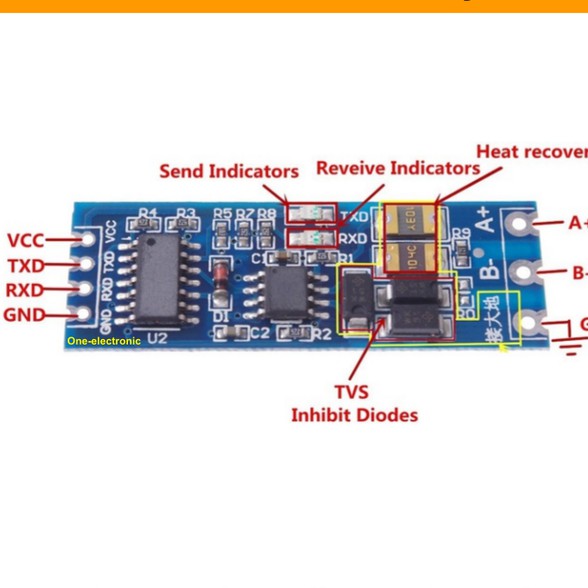

Two-Way Converter UART TTL to RS485

Operating voltage: compatible with 3.3V and 5.0V
Support baud rate: 110-256000bps
Operating temperature: -40 Celsius to +85 Celsius
Communication signal: compatible with 3.3V and 5.0V

Transmission distance up to kilometers (with 850 meters of 2 * 1.5 cable to do the test, it is recommended to use in the 800 meters, more than 800 meters, please add repeaters)
Semi-hole process design, the thickness of 0.8mm, makes it easy to use as a combo board, it can also be welded terminal use
Has RXD, TXD signal lights to observe send and receive status
