PRODUCT DESCRIPTION

The module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the module output low, low power consumption; When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode.
Jog type : the initial state is low , high touch , do not touch is low ( similar touch of a button feature )
Module can be installed in such as surface plastic, glass of non-metallic materials
In addition to the thin paper ( non-metallic ) covering the surface of the module , as long as the correct location of the touch , you can make hidden in the walls, desktops and other parts of buttons

Features:
Low power consumption
Power supply for 2 ~ 5.5V DC
Can replace the traditional touch of a button
Four M2 screws positioning holes for easy installation
Specification:

Power supply voltage VCC
2.0
3
5.5 V
Output high VOH : 0.8VCC V
Output low VOL : 0.3VCC V
Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA
Response time (low power mode) : 220 mS
Response time (touch mode) : 60 mS
Size : 24x24x7.2 mm

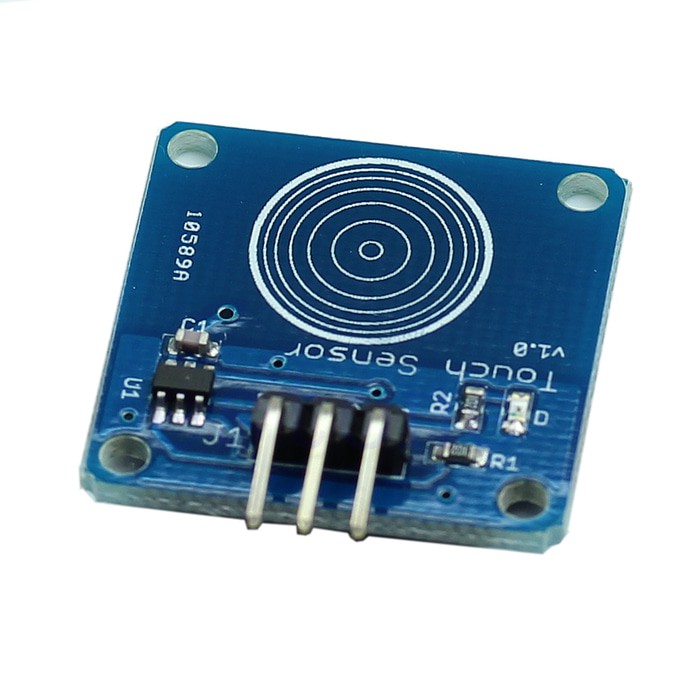

Touch Sensor Interface :(the last picture show)
-Control Interface : A total of three pins (GND, VCC, SIG), GND to ground , VCC is the power supply , SIG digital signal output pin
-Power Indicator : Green LED, power on the right that is shiny

-Touch area : Similar to a fingerprint icon inside the area , you can touch the trigger finger .

-Positioning holes : 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install , to achieve inter- module combination .

Gambar produk
