Detail TTP223 Mini Capacitive Touch Switch Saklar Sensor Sentuh

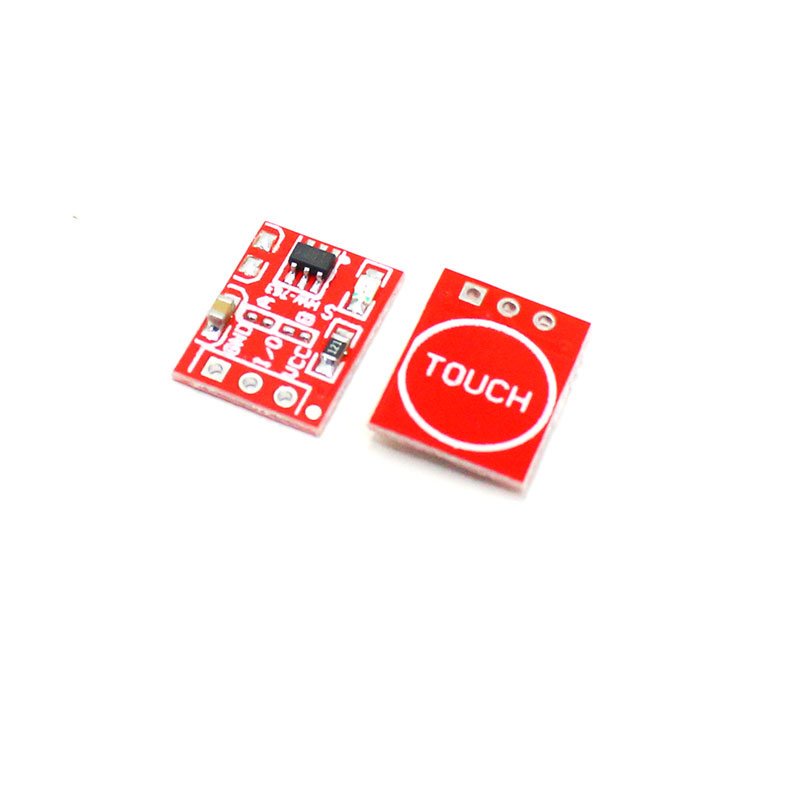

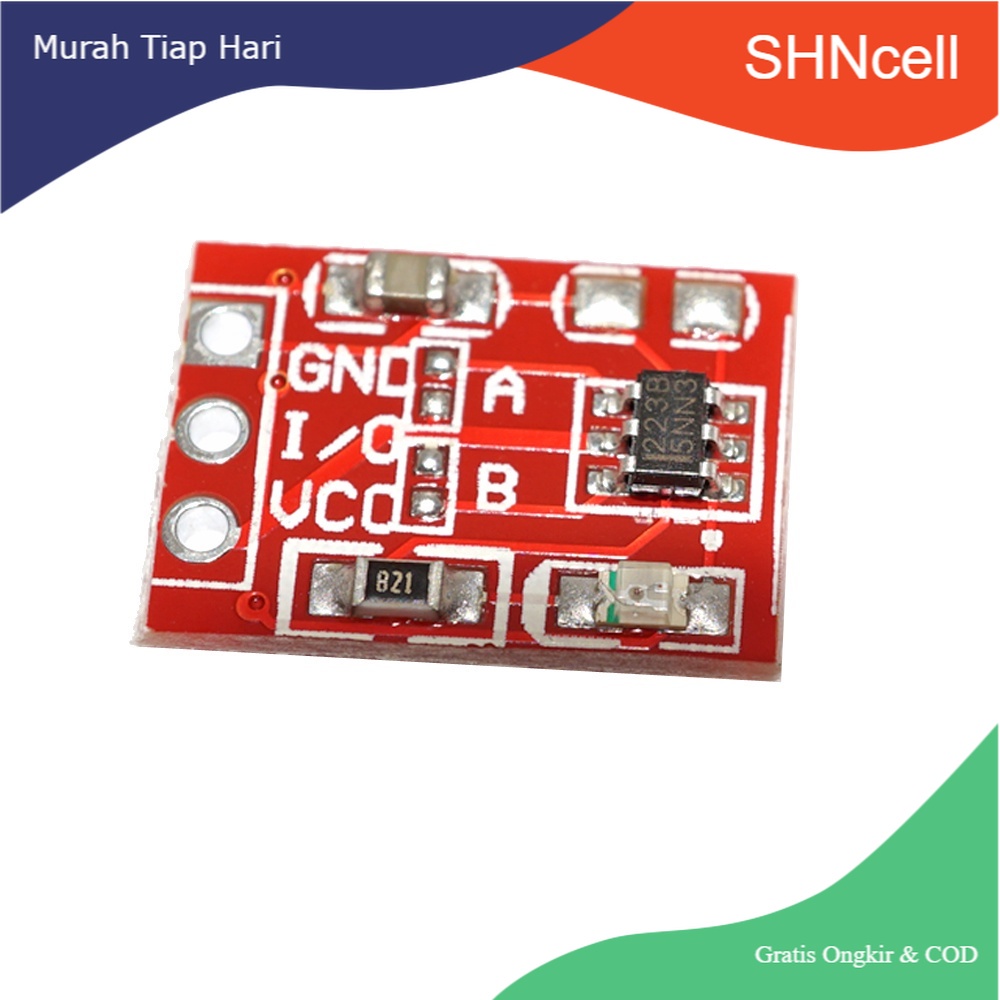

Mini capacitive touch sensor module based on the dedicated TTP223 touch sensor IC. The module provides a single integrated touch sensing area of 11 x 10.5mm with a sensor range of ~5mm. An on-board LED will give a visual indication of when the sensor is triggered. When triggered the modules output will switch from its idle low state to high (default operation). Solder jumpers allow for reconfiguring its mode of operation to be either active low or toggle output. Voltage : 2.5v to 5.5v Supply current : (Vcc = 5V) : 6uA (Idle) 16mA (Active) Max sensor range : ~5mm Trigger setting mode : (1->Short; 0->No Short) Jumper links AB=00 : No-lock High TTL level ouput; AB=01 : Self-lock High TTL level ouput; AB=10 : No-lock Low TTL level ouput; AB=11 : Self-lock Low TTL level ouput; Size :11.5 x 8mm
