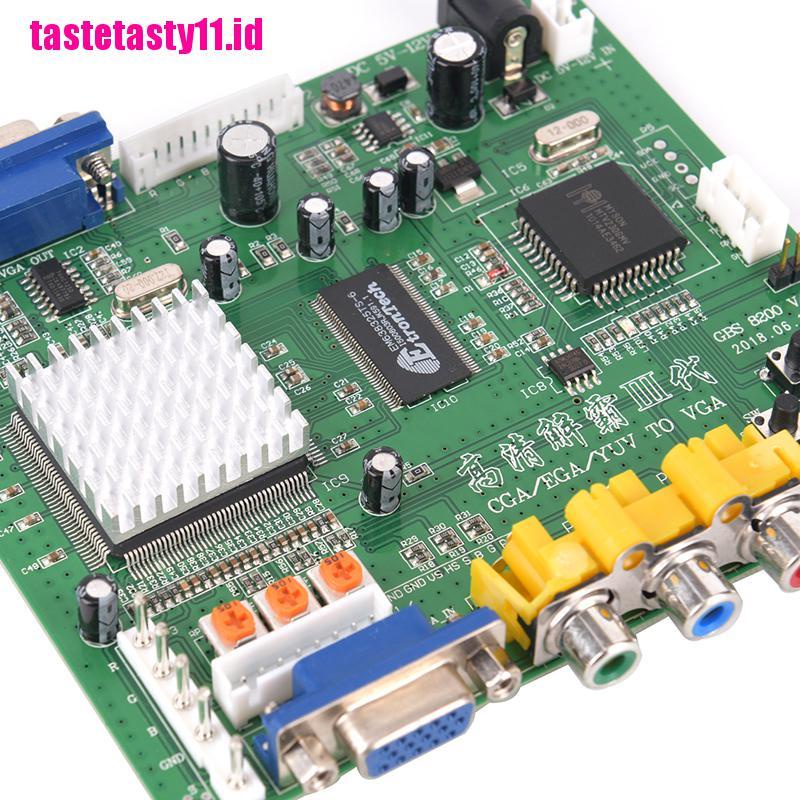

【TTID】Arcade Game RGB/CGA/EGA/YUV to VGA HD Video Converter Board HD9800/GBS820

Detail 【TTID】Arcade Game RGB/CGA/EGA/YUV to VGA HD Video Converter Board HD9800/GBS820

Features:

Latest & official GBS8200 HD-Converter Board.
Supports CGA/EGA/VGA/YUV Component Signal Input
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
On Screen Display (English and Chinese)
Supports image position control & image zoom control
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)

Specifications:

Input Power: 5VDC +/- 0.5v (2A)
Input signal:
CGA/EGA
14.5kHz - 16.5kHz
23.5kHz - 25.5kHz
30.5kHz - 32.5kHz
RGBHV: 30.5kHz - 32.5kHz
VGA: 30.5kHz - 32.5kHz
Ypbpr: 480p,576p,720p,1080p
Ycbcr: 480i,576i,720i,1080i
Output signal: VGA:640*480,800*600,1024*768,1360*768
User controls:
Input Switch, Image Zoom, Image Position,
Output Resolution ,RGB gain adjust.

¡°MENU¡± open OSD menu, and enter.
¡°UP¡± up and increase.
¡°DOWN/AUTO¡± down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system
(this operation is invalid when you open OSD menu)
¡°SW¡± switch input signal Ypbpr/RGBS/RGBHV.
(this operation is invalid when you open OSD menu)
¡°Clamp sp¡± & ¡°Clamp¡± please don¡¯t adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
No signal on you monitor
Please check the input and output cables, make sure all cables are connected. And make sure power is on.
The monitor says ¡°No signal¡±
Please press ¡°SW¡± to switch input signal.
Input not supports
When your monitor displays ¡°input not supports¡±, maybe you need change to low resolution.
Please press ¡°DOWN/AUTO¡± over 5 second and release. Reset resolution to 800*600.
Image not full on you screen
Please enter menu to adjust image position and zoom.
Image shake or freeze
Please press ¡°DOWN/AUTO¡±, system will auto scan input signal and restore image.
Have black item on screen, or all screen too black, or picture discoloration
Please adjust ¡°Clamp sp¡± and ¡°Clamp st¡±, please keep ¡°Clamp st¡± less than ¡°Clamp sp¡±.
We suggest ¡°Clamp st¡± SET ¡°03¡± , ¡°Clamp sp¡± SET ¡°04¡±.
Image color not right
Please adjust RGB VR.
Color:Green
Size:117*100*20 mm
Cable length: 50cm

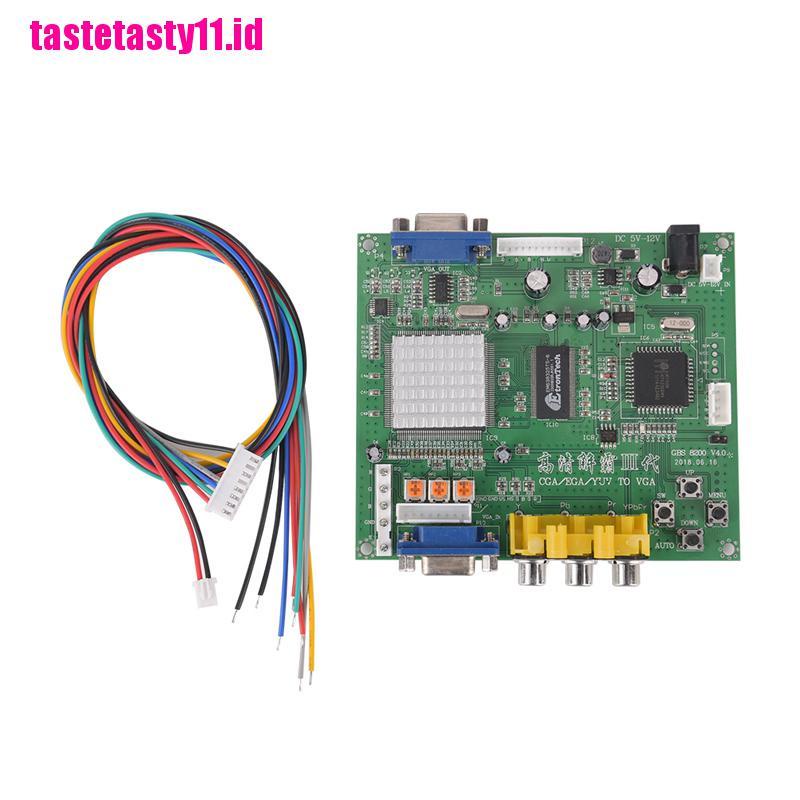

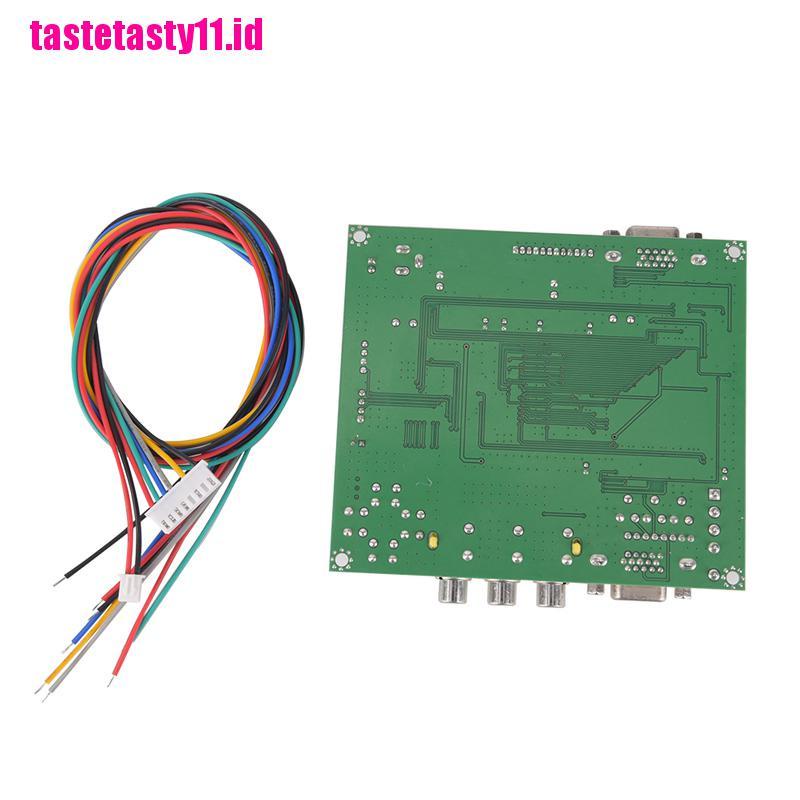

Package included:

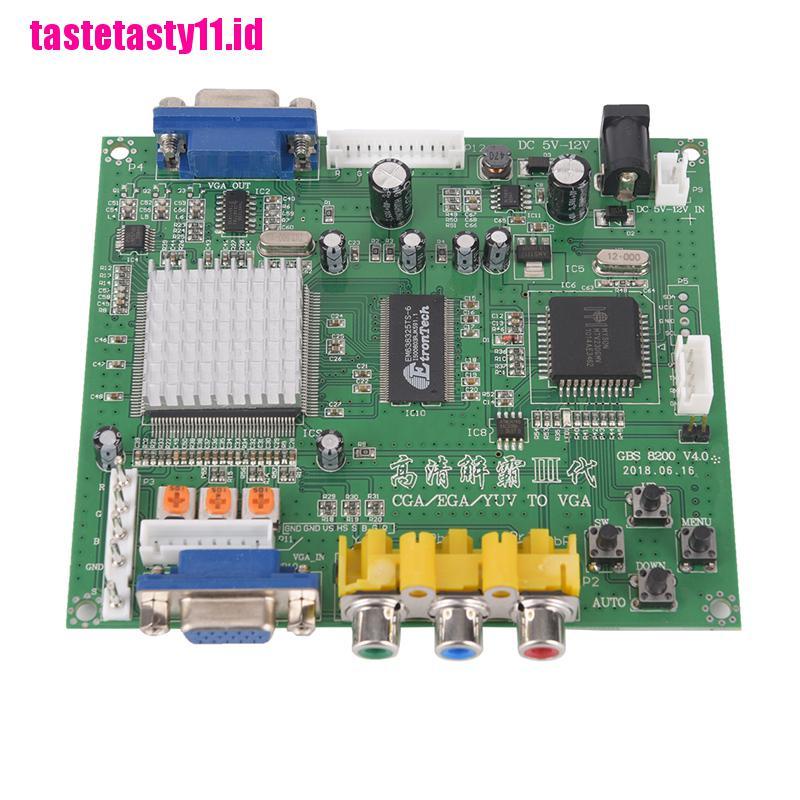

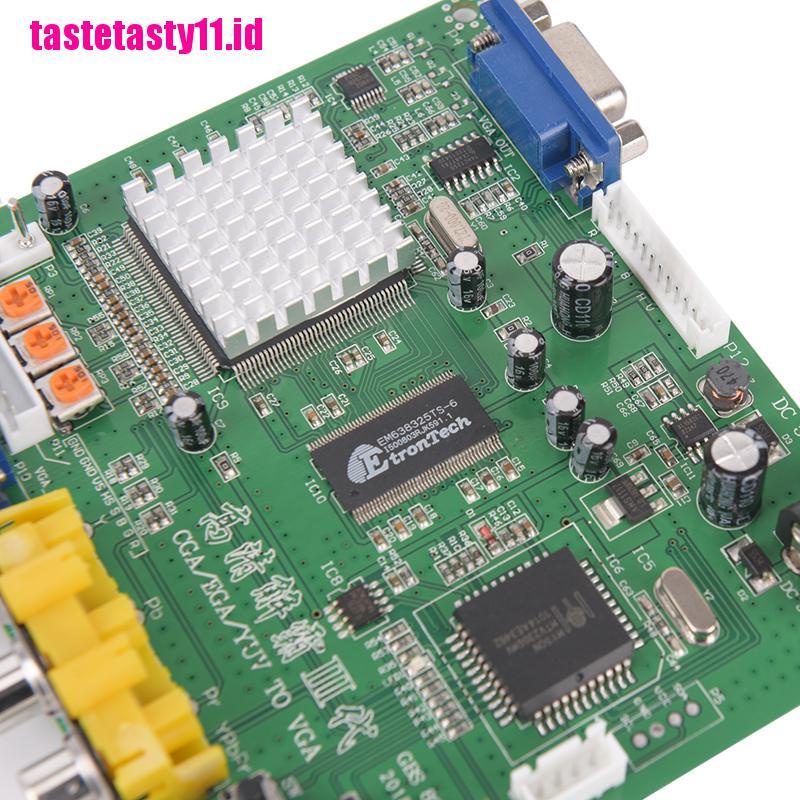

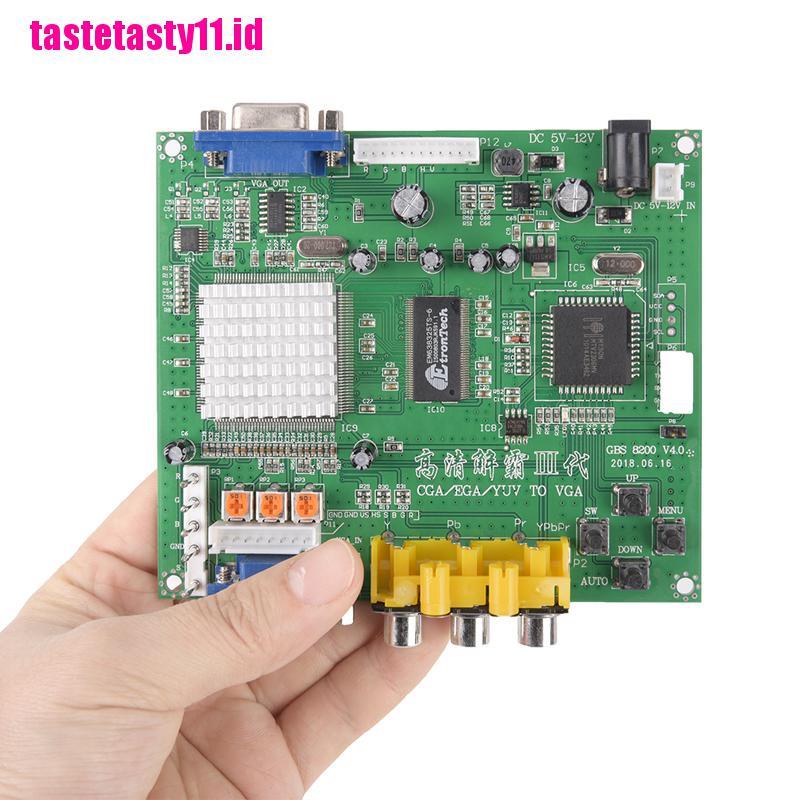

1pc x Converter board GBS8200

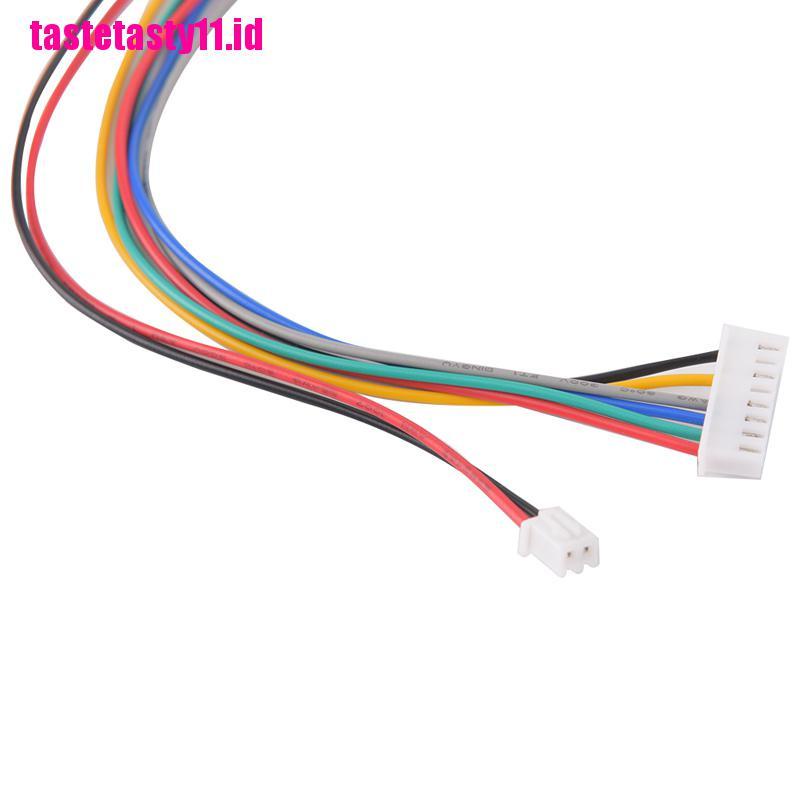

1pc x 2P power supply wire

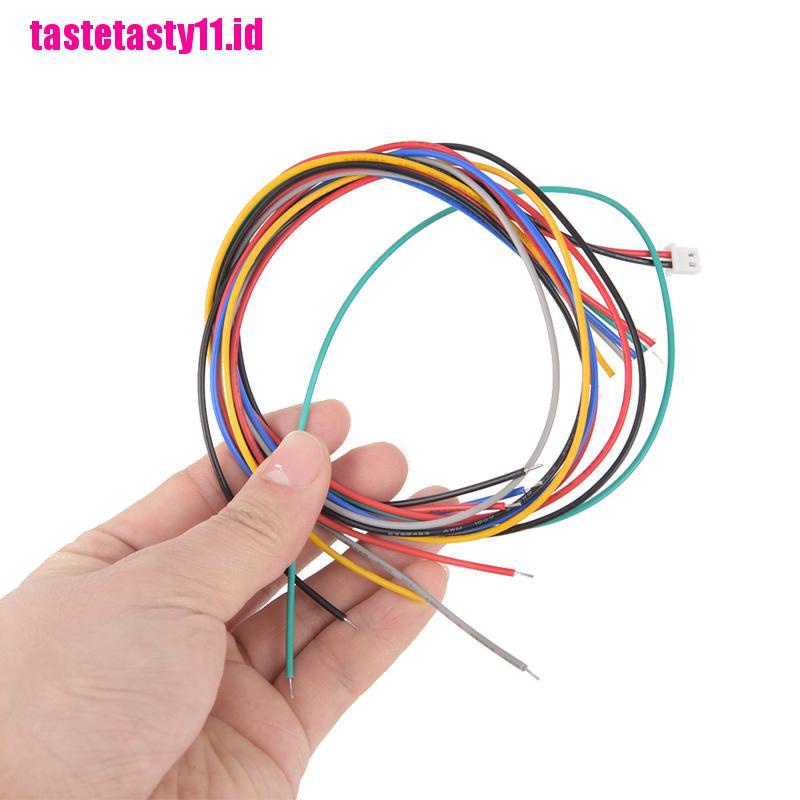

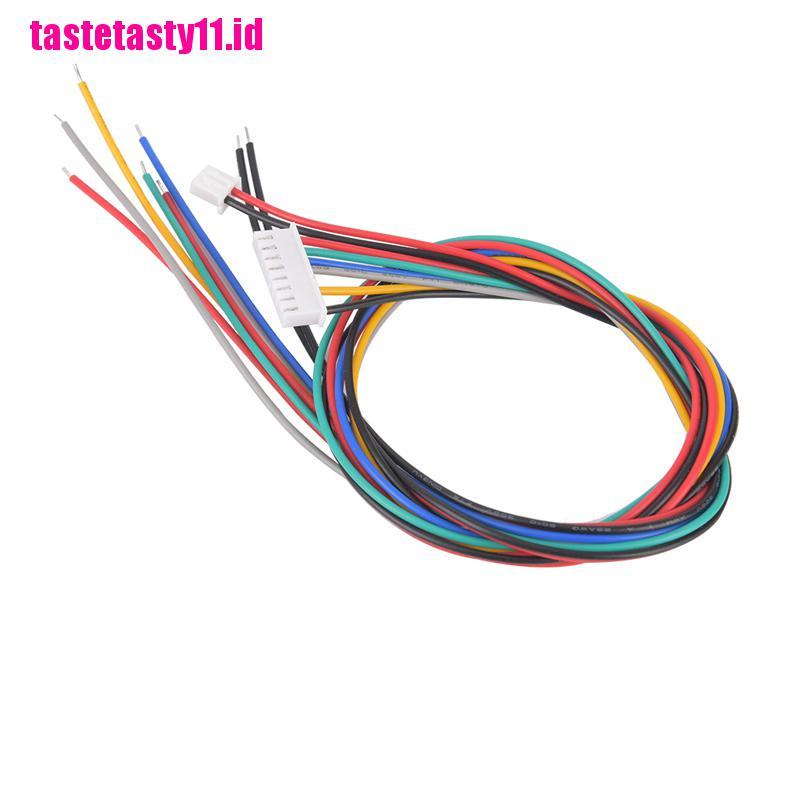

1pc x 8P signal wire

Gambar produk
