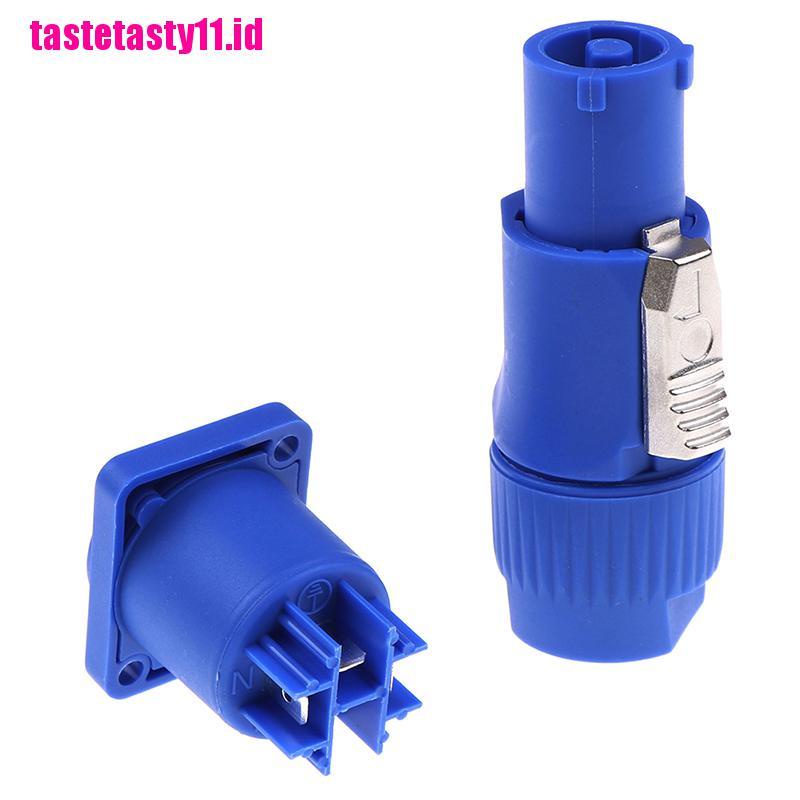

【TTID】2Pcs/set PowerCON Audio 3P Type A NAC3FCA+NAC3MPA-1 Chassis Plug Panel Co

Detail 【TTID】2Pcs/set PowerCON Audio 3P Type A NAC3FCA+NAC3MPA-1 Chassis Plug Panel Co

Withstand Voltage:250V
Withstand Current:20A
Contact Resistant:Less than 3m ohm
Lifetime:More than 1000 Times

NAC3FCA PowerCON Power In Type A Cable Mount Connector Cable connector, A-type for power-in, screw terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention:
The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Type A plug and socket is for power IN to a device

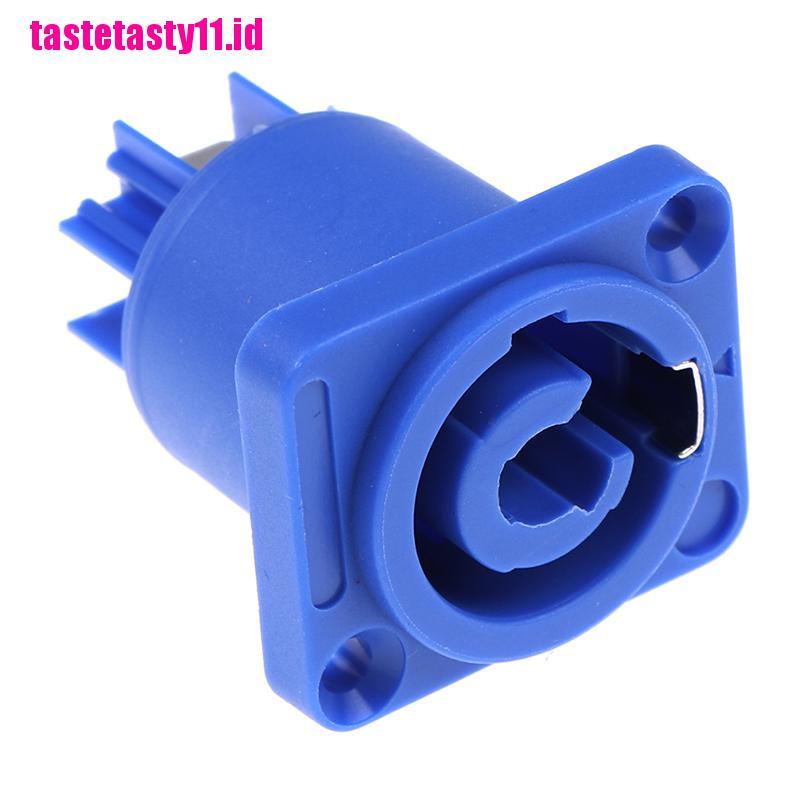

NAC3MPA-1
Powercon offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the Speakon' twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current Speakon' connectors).
Cable connectors have screw terminals (max. wire size 4mm), panel connectors have Faston' 4.8 x0.5mm 'spade' terminals. NAC3MP panel connectors have plain mounting holes and are airtight.
This means it is impossible to produce a short circuit with correctly wired connectors.

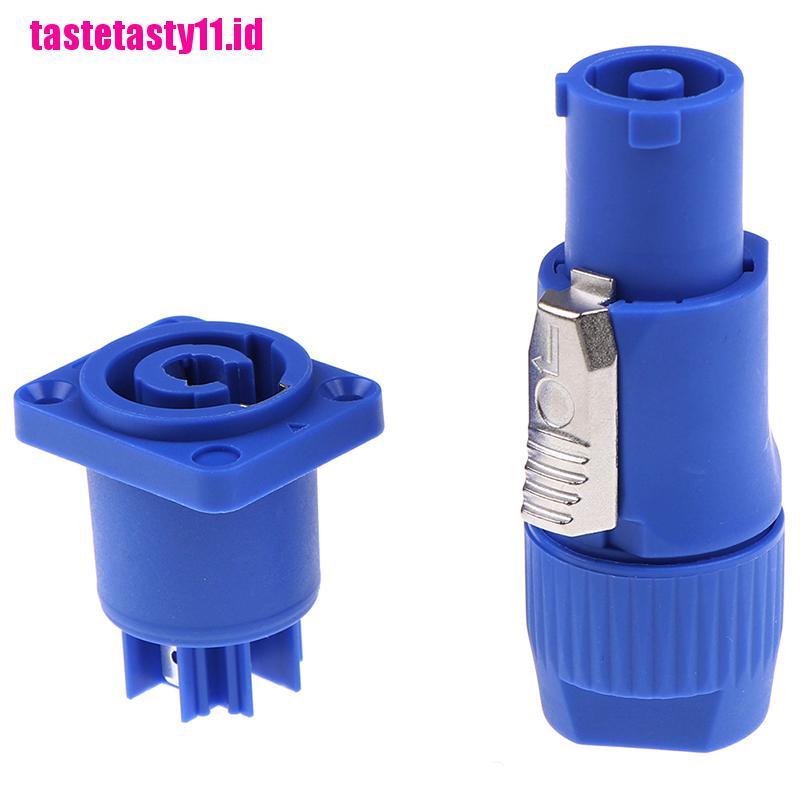

Packaging : 2pcs/set x NAC3FCA + NAC3MPA-1 plug
