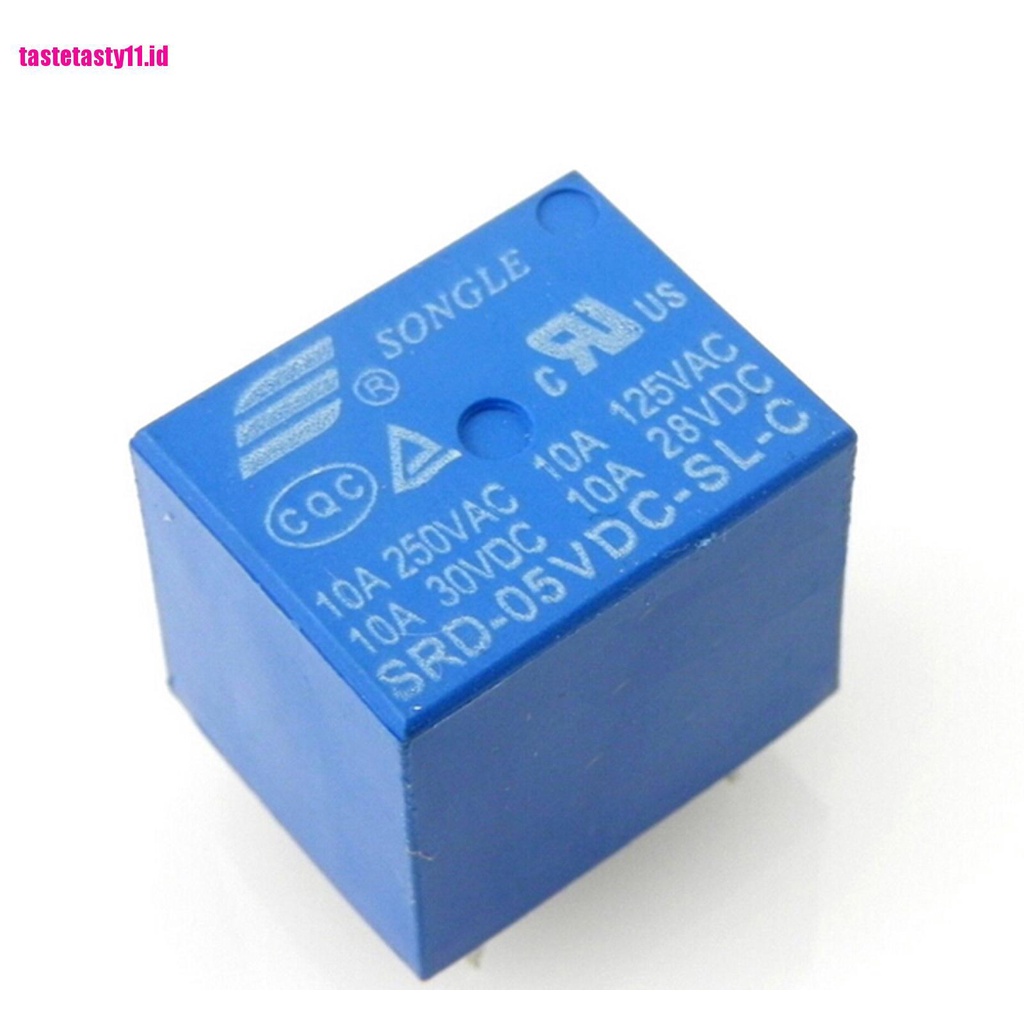

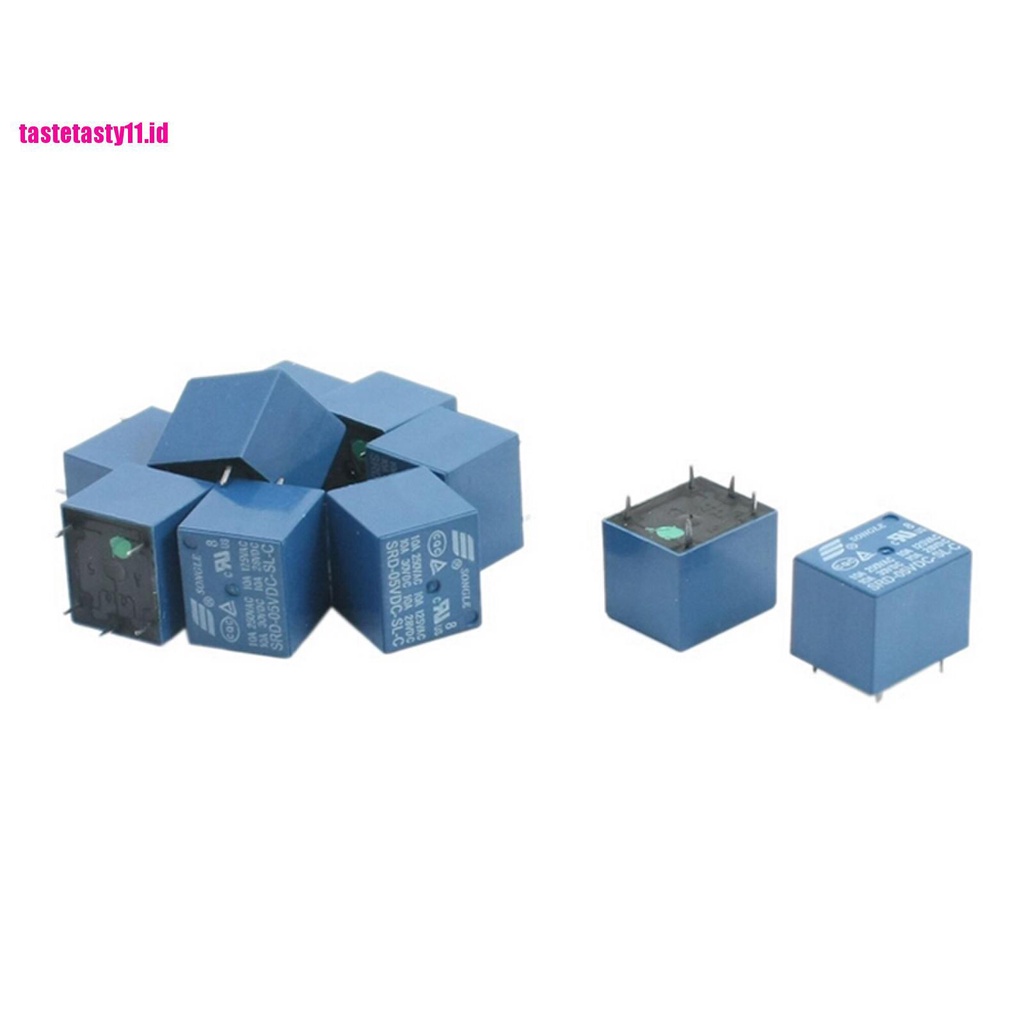

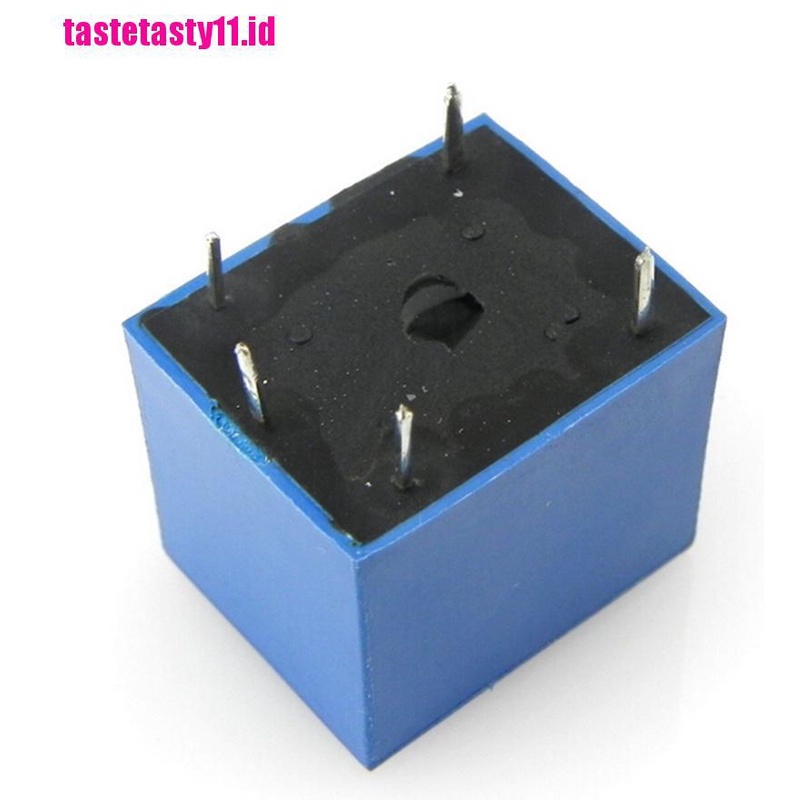

Detail 【TTID】1Pcs Mini Power Relay 5V DC SRD-5VDC-SL-C PCB Type
Brand new and high quality.Coil and contacts:1500VAC/min.
Contact and contacts: 1000VAC/min.
Insulation resistance: >=100M (ohm).
Mounting form: PCB.
Contact form: 1a, 1b, 1c.
Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC.
Contact resistance: <=100m (ohm).
Coil rated voltage: 3-48VDC.
Coil power: 0.36W, 0.45W.
Coil pick-up voltage: <=75%.
Coil drop-out voltage: >=10%.
Ambient temperature: -25 degrees Celsius to +70 degrees Celsius.
Size: 1.5cm x 1.9cm x 2cm.
Package:
1Pcs * T73-5V SRD-5VDC-SL-C Mini Power Relay 5V
