TTC Switch Mechanical Keyboard

Detail TTC Switch Mechanical Keyboard

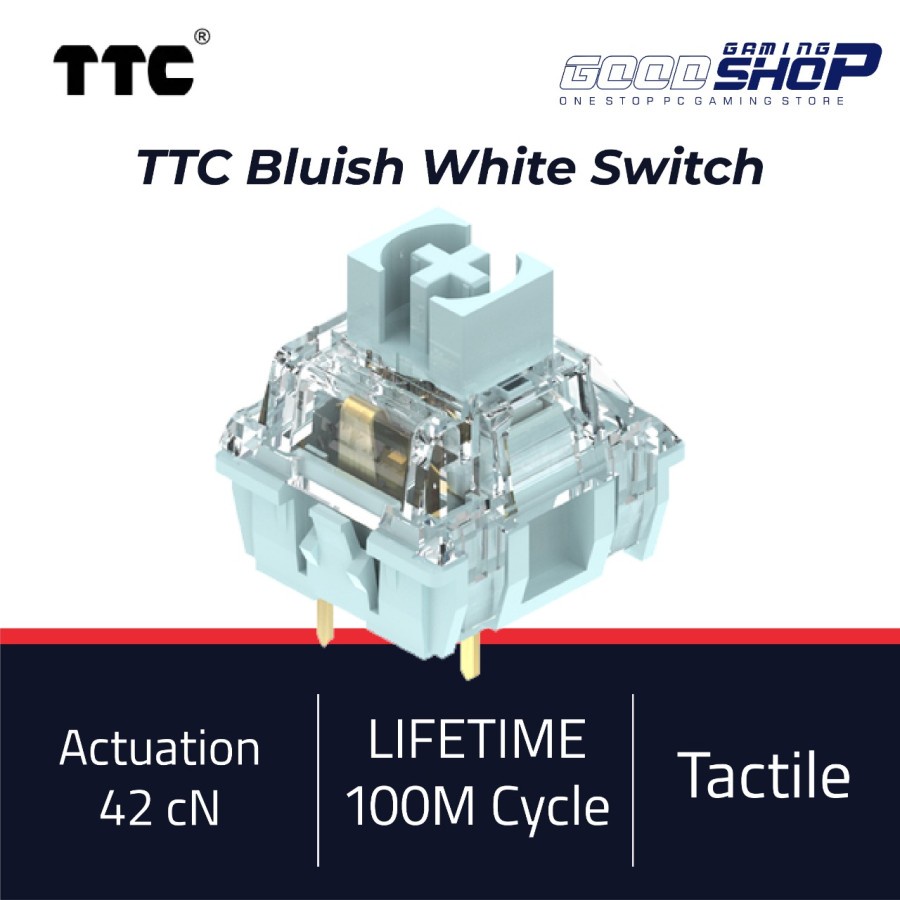

== TTC Bluish White ==
TTC Bluish White are one of the latest mechanical switches to join the tactile craze. The Bluish White switches feature a number of unique features such as a “double spring” and “muted bottom”. The goal of this is a more linear weight curve, and a quieter and deeper bottom out sound. These switches have already garnered a lot of attention in the mechanical keyboard community and now for the first time will be available in a 5 pin PCB mount option. This is perfect for use in hot swap boards and in builds using half plates as it provides additional mounting stability.

Some other features of this switch are the shorter total travel of 3.5mm, a 42g operating force, and fully sealed stem for added stability and dust protection.

Weight .5 lbs
Dimensions 8 × 6 × 1 in

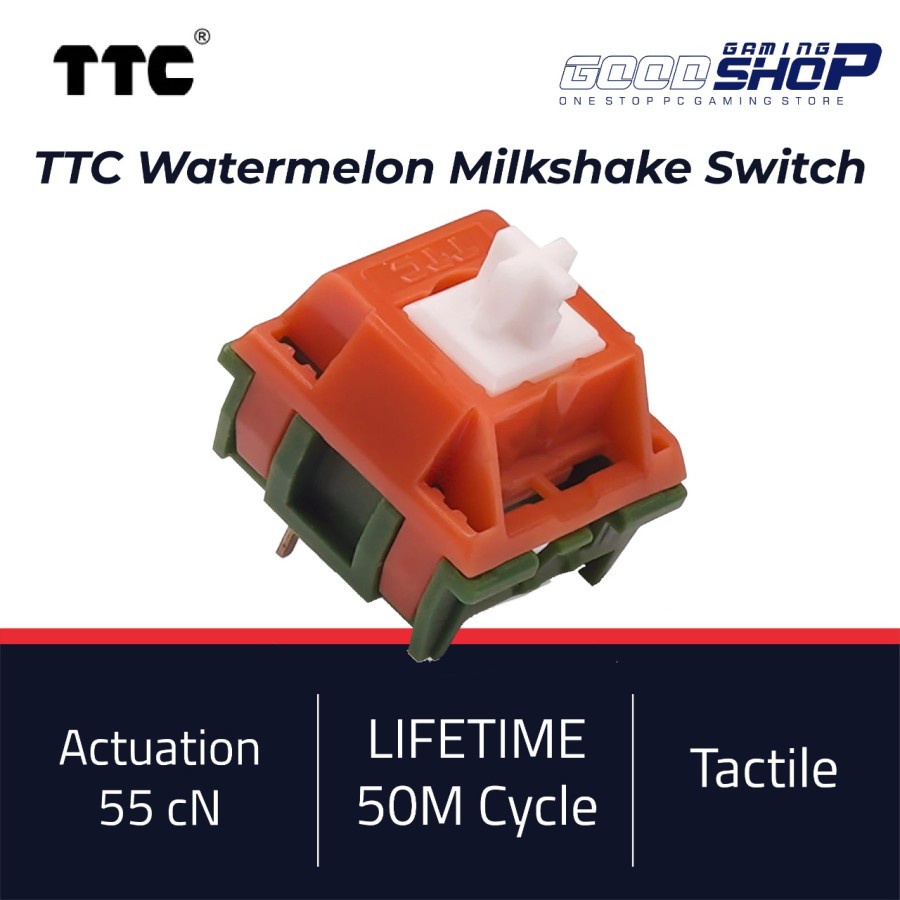

== TTC Watermelon Milkshake Switch Mechanical Keyboard ==
Specs :
- Foundry：TTC
- Total travel:：4.0±0.4mm
- Pre-travel:：2.0±0.6mm
- Operating force:：55±15gf
- Duration:：50 million key strokes
- Switch type:：Tactile
-Large tactile ahead
- Clear tactile
- feel like cherry brown switches
- Gold-plated spring

Product parameters:
- Total travel: 4.0mm
- Paragraph travel: 0.8mm
- Conduction travel: 2.0mm

Paragraph pressure (0.8mm position): 55gf
Conduction pressure (2.0mm position): 45gf
Bottom pressure (4.0mm position): 63gf

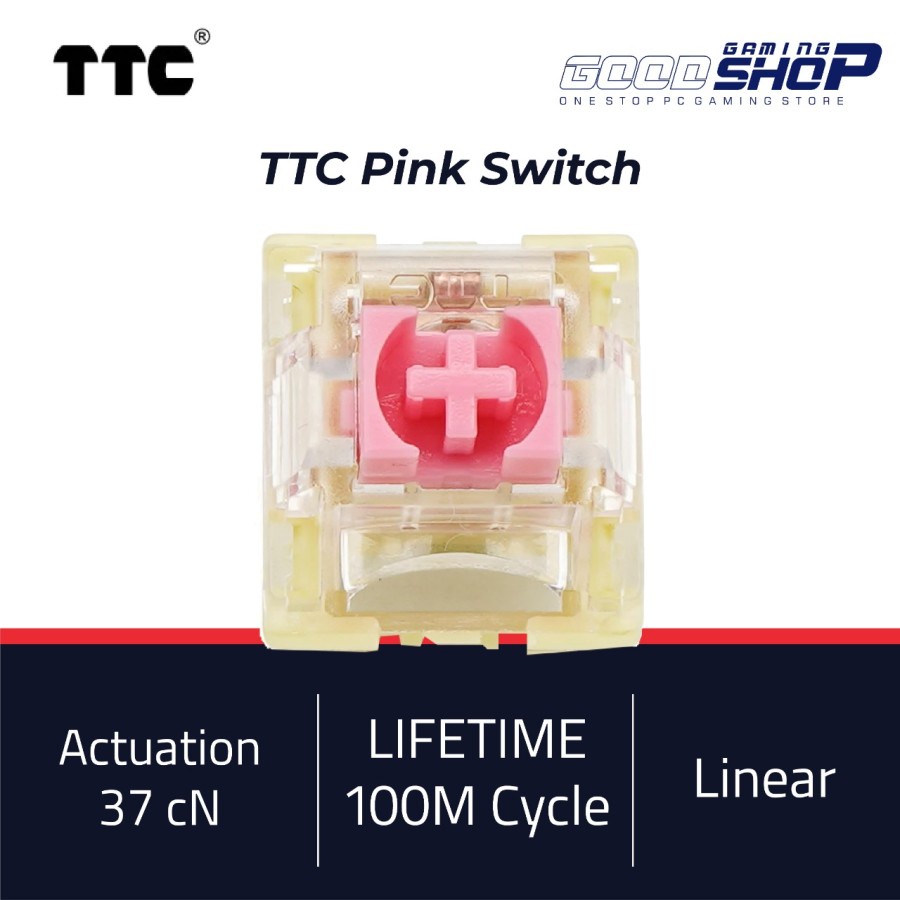

== TTC Pink Switch Mechanical Keyboard ==
SPECS :
Switch type : linear
Cover : transparentcover
Base : lightgolden
Button : GirlyPink
Contactpoles : unipolarcontact
Contactmaterial : goldalloy
Operatingforce : 37±5gf
Pre-travel : 2.0±0.3mm
Totaltravel : 4.0-0.3mm
Duration : 100millionkeystrokes
Switchingvoltage : 2~12VDC
Switchingcurrent : 10μA~10mADC
Contactresistance : 500mΩMax
Insulationresistance : 100MΩMin

Gambar produk
