Trinity - TM-12 Tang Potong Angle Tip Cutter Round-type Mini 120 mm

Detail Trinity - TM-12 Tang Potong Angle Tip Cutter Round-type Mini 120 mm

Tang Potong Angle Tip Cutter Round-type Mini 120 mm - Trinity - TM-12 - Japan

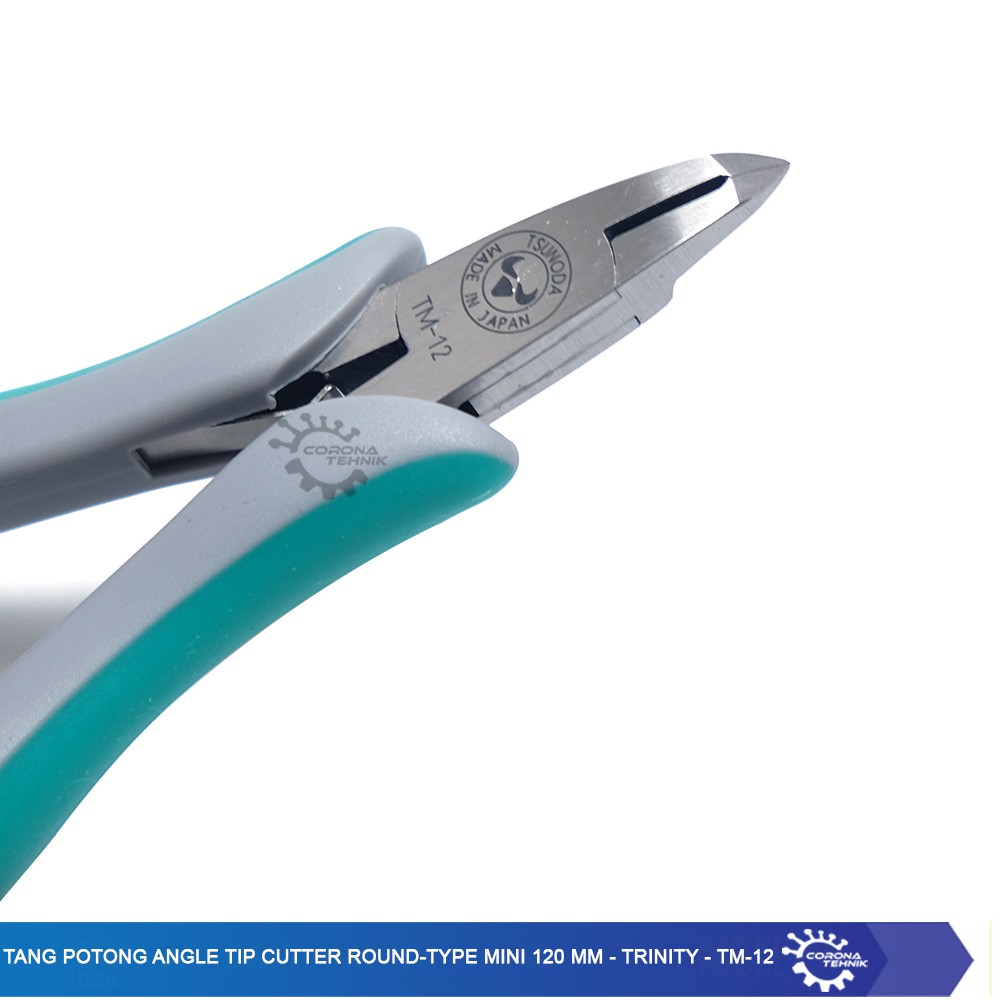

Angled Tip Cutter Round-type

Edges easily reach to wire between beads in a string.
Round shaped edge less damaging beads around the wire.
For accessory making.
*Not for stainless wire.

Features of Trinity series products :
Box joint
Long-life stability, none-backlash.

Leaf springs
Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips
Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.


Specifications :
Material | Alloy steel
Heat Treatment | Induction hardening on edge
Hardness | 54～62
Spring | Leaf springs
Handle cover | Elastomeric double molded resin grips

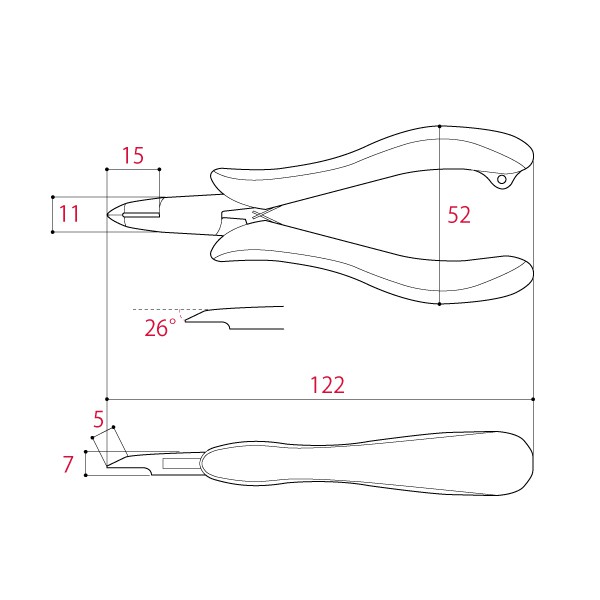

Size[mm] :

Overall length : 122 mm
Head width : 11 mm
Head thickness : 7 mm
Handle width : 52 mm
Nose length : 15
Edge length : 5
Head angle : 26°

Weighr : 65 Gram

Cutting capacity (φmm)
Copper : 1.0 mm
Stranded copper wire [mm²] : 1.25

Note: Do not use to cut harder wire or anything above it rated the capacity.


Made in Japan
