Trinity - TM-10 - Japan Tang Potong Angle Tip Cutter Mini 120 mm

Detail Trinity - TM-10 - Japan Tang Potong Angle Tip Cutter Mini 120 mm

Tang Potong Angle Tip Cutter Mini 120 mm - Trinity - TM-10 - Japan

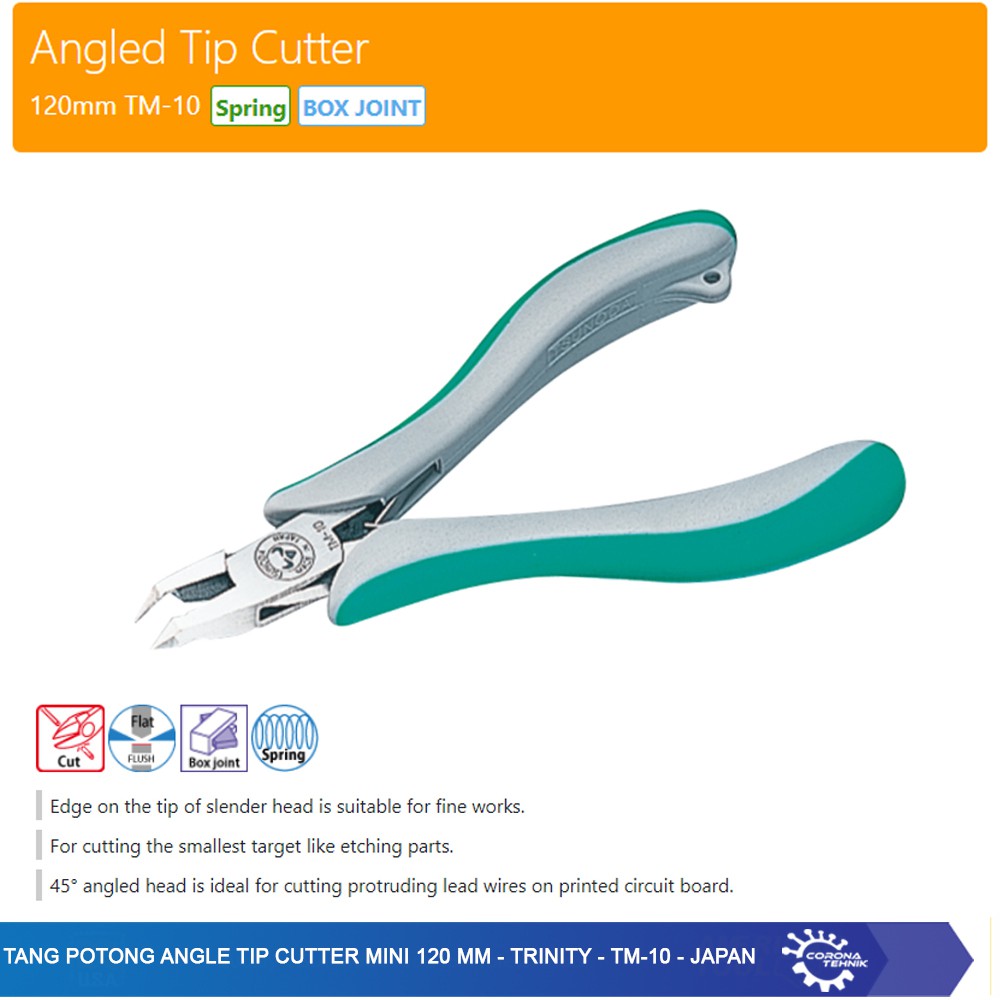

Angled Tip Cutter

Edge on the tip of slender head is suitable for fine works.
For cutting the smallest target like etching parts.
45° angled head is ideal for cutting protruding lead wires on printed circuit board.

Features of Trinity series products :

Box joint
Long-life stability, none-backlash.

Leaf springs
Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips
Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.

Specifications :
- Material | Alloy steel
- Heat Treatment | Induction hardening on edge
- Hardness | 54～62
- Spring | Leaf springs
- Handle cover | Elastomeric double molded resin grips

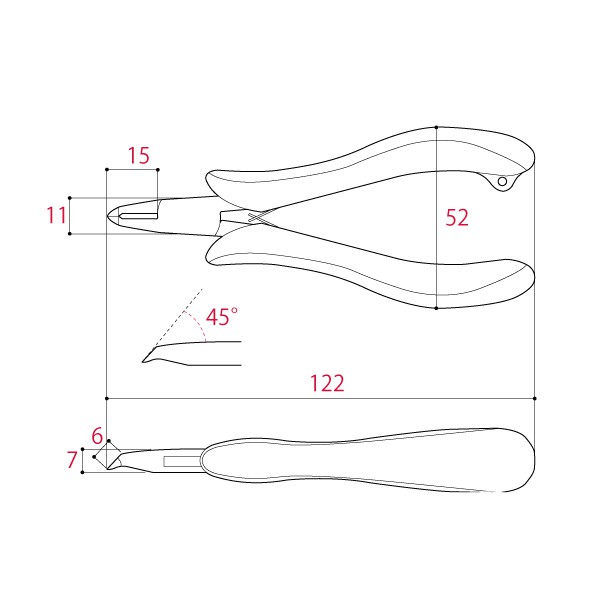

Size :
- Overall length : 122 mm
- Head width : 11 mm
- Head thickness : 7
- Handle width : 52
- Nose length : 15
- Edge length : 6
- Head angle : 45°

Weight : 65 gram

Cutting capacity :
- Copper : 1.0 mm
- Stranded copper wire [mm²] : 1.25 mm
- Plastic : 1.5 mm

Note: Do not use to cut harder wire or anything above it rated the capacity.


Made in Japan
