Detail TRI Mx500 Earbuds Kepala Flat Driver 500ohm 15.4mm Untuk Speaker / Earphone

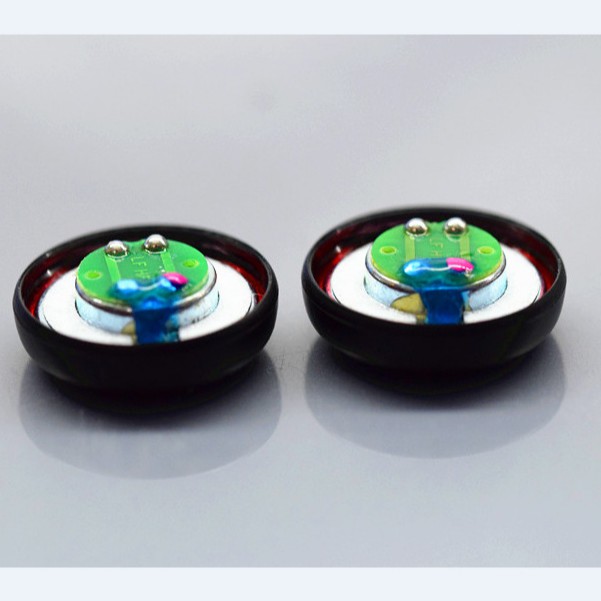

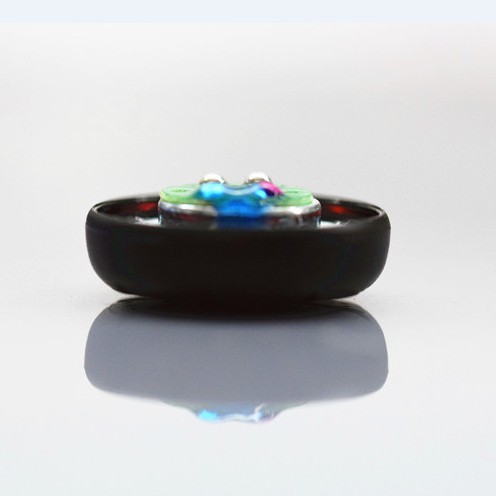

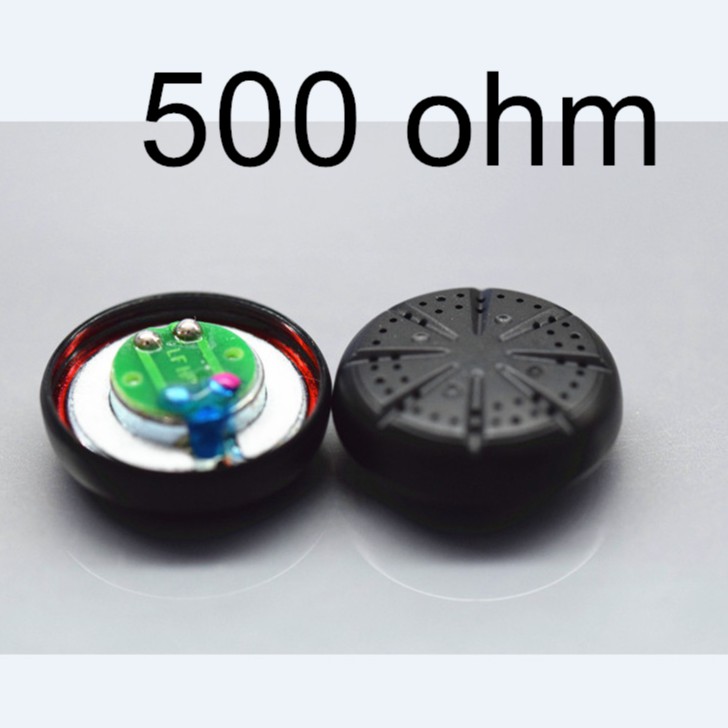

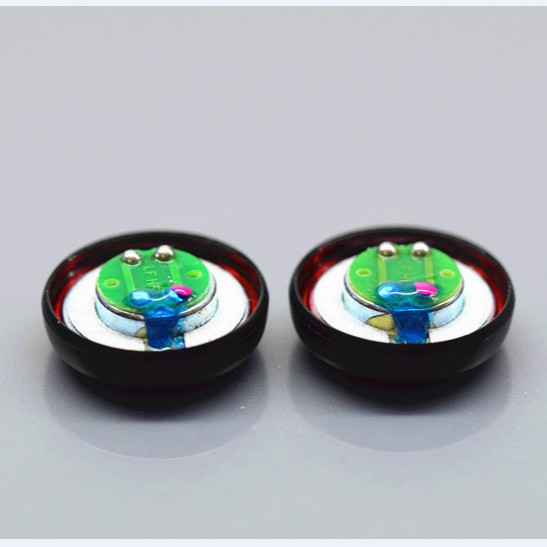

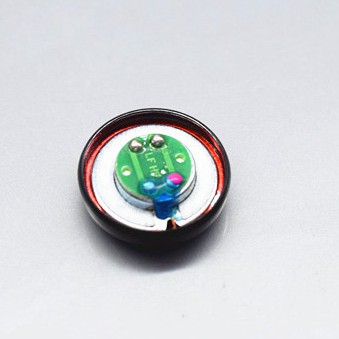

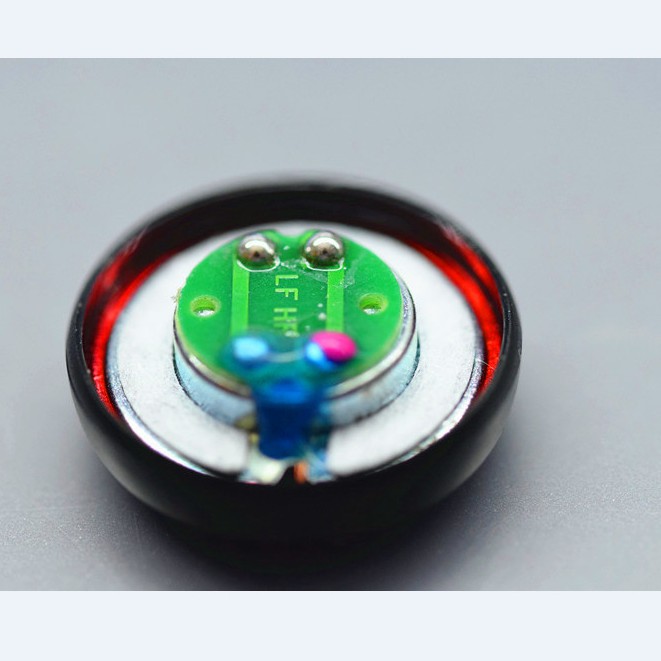

15.4mm MX500 Earbuds Shell 500ohm Driver Flat head high-impedance unit speaker, low, medium and high tri-band separation 500 ohm for earphonessize:15.4mm
impedance:500 ohm
Package included:
2pieces 500ohm driver
2pieces Shell
This unit is a flat-head high-resistance qijian plug. The unit uses Tesla performance magnets. The diaphragm edge folding ring is made of multiple composite diaphragms. The dome is made of single composite beryllium. The voice coil is made of 14-layer high-resistance 500 ohm unit. The frequency separation is excellent, the high impedance achieves the minimum distortion and the minimum noise floor, which is really a boon for fans. The disadvantage is that the high impedance must be put on the stage to perform perfectly. The mobile phone can be pushed but it is very difficult to fully play the characteristics of high impedance.
Note: The unit needs to be placed on top, preferably on the stage. The phone has no texture when it is pushed directly. Only when it is placed on top can it reflect its vigorous atmosphere. After being placed on the top, the unit has the same texture as a speaker. The bass is flexible and soft, and the sound field is broad.
Instructions for use:
It is recommended that customers use a multimeter to test the continuity of the unit after receiving the horn to ensure that the horn is in good condition. During welding, the unit is marked with positive and negative electrodes, and the color of the unit is the positive electrode wire. The point is not marked, the negative electrode is soldered, and the soldering iron is best Do not exceed three seconds. If the soldering time is too long, it is easy to burn the voice coil lead or directly burn the circuit board, causing the speaker to short-circuit and make no sound. Due to the damage of the horn after welding, our shop is not responsible for return or exchange.
