Transistor TR Power Audio Amplifier TIP 2955 3055 PNP NPN 15A 60V 90W
Deskripsi singkat
Elektronik > Elektronik Lainnya > Transistor TR Power Audio Amplifier TIP 2955 3055 PNP NPN 15A 60V 90W
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Transistor TR Power Audio Amplifier TIP 2955 3055 PNP NPN 15A 60V 90W
Tersedia Varian :1. TIP 2955 PNP
2. TIP 3055 NPN
* Feature :
1. TIP 2955 PNP
- DC Current Gain hFE = 20-70 @ lc = 4.0 Adc
- CollectorEmitter Saturation Voltage VCE(sat) = 1.1 Vdc (Max)@ lc = 4.0 Adc
- Excellent Safe Operating Area
- Type Designator: TIP2955
- Material of Transistor: Si
- Polarity: PNP
- Maximum Emitter-Base Voltage |Veb|: 7 V
- Package: TO218

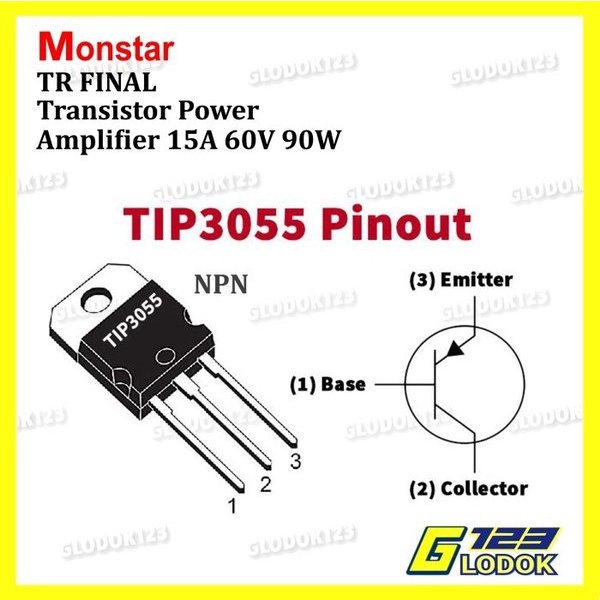

2. TIP 3055 NPN
- DC Current Gain hFE = 2070 @ IC = 4.0 Adc
- CollectorEmitter Saturation Voltage
- VCE(sat) = 1.1 Vdc (Max) @ IC = 4.0 Adc
- Type Designator: TIP3055
- Material of Transistor: Si
- Polarity: NPN
- Maximum Emitter-Base Voltage |Veb|: 7 V
** Spesifikasi :
1. TIP 2955 PNP
- Ic (mA) - 15
- Pd (mW) - 90
- Vce (max) - 60
- Vcb - 100
- hfe - 20-70
- @Ic - 4000
- FT - 2.5
2. TIP 3055 NPN
- Ic (mA) - 15
- Pd (mW) - 90
- Vce (max) - 60
- Vcb - 100
- hfe - 20-70
- @Ic - 4000
- FT - 2.5
Application :
GeneralPurpose Switching
Audio Amplifier
