Transistor TIP42C PNP Transistor Bipolar TIP42 C

Komputer & Aksesoris > Komponen Desktop & Laptop > Thermal Paste > Transistor TIP42C PNP Transistor Bipolar TIP42 C
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Transistor TIP42C PNP Transistor Bipolar TIP42 C

Hi #RekanEasyWare ...
- EasyWare Part# [Fairchild]: EP001016
- EasyWare Part# [ST]: EP001016

SPESIFIKASI :
- Package Type: TO-220
- Transistor Type: PNP
- Max Collector Current(IC): –6A
- Max Collector-Emitter Voltage (VCE): –100V
- Max Collector-Base Voltage (VCB): –100V
- Max Emitter-Base Voltage (VEBO): –5V
- Max Collector Dissipation (Pc): 65 Watt
- Max Transition Frequency (fT): 3 MHz
- Minimum & Maximum DC Current Gain (hFE): 15 – 75
- Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

KELENGKAPAN :
-1pcs Transistor - TIP42C

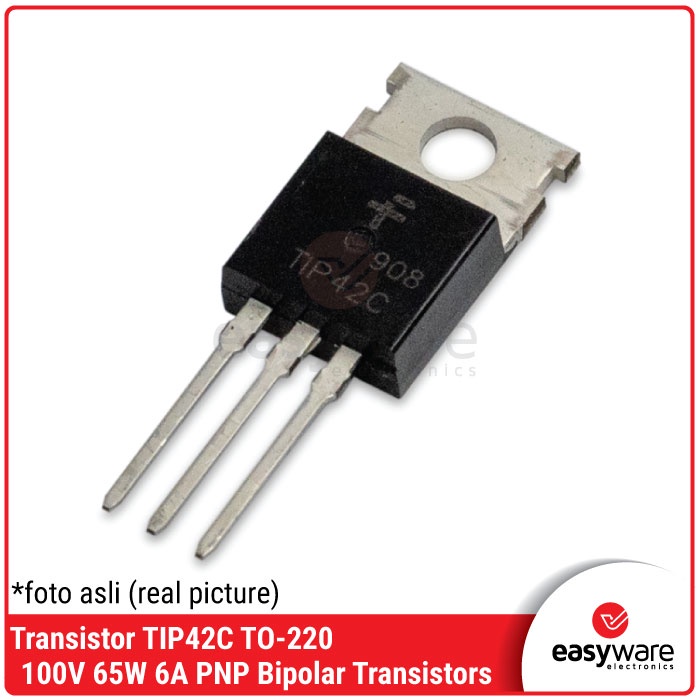

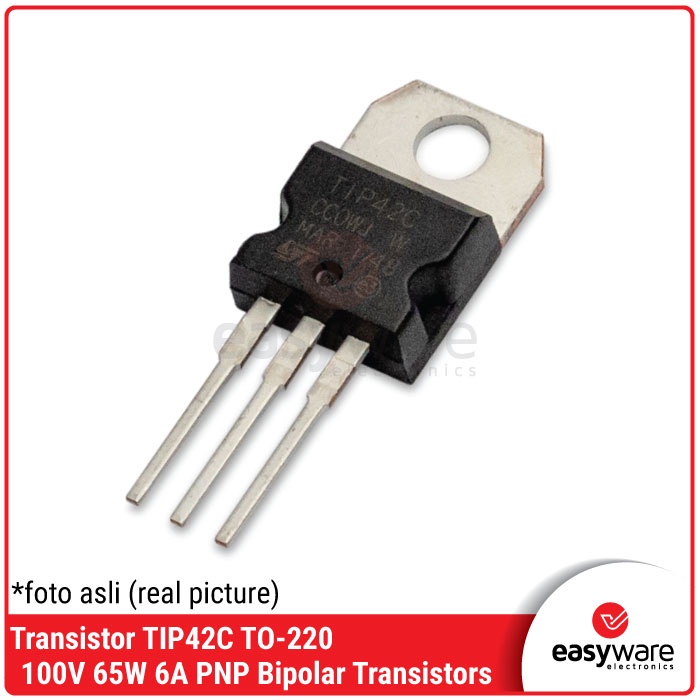

Gambar produk
