Transistor Switching Power Amplifier TR TIP 31 32 41 42 C NPN PNP - 10pcs

Elektronik > Elektronik Lainnya > Transistor Switching Power Amplifier TR TIP 31 32 41 42 C NPN PNP - 10pcs
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Hayashi IndonesiaLihat semua produk Elektronik oleh Hayashi Indonesia
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Transistor Switching Power Amplifier TR TIP 31 32 41 42 C NPN PNP - 10pcs

Harga yang tertera adalah harga untuk 10pcs

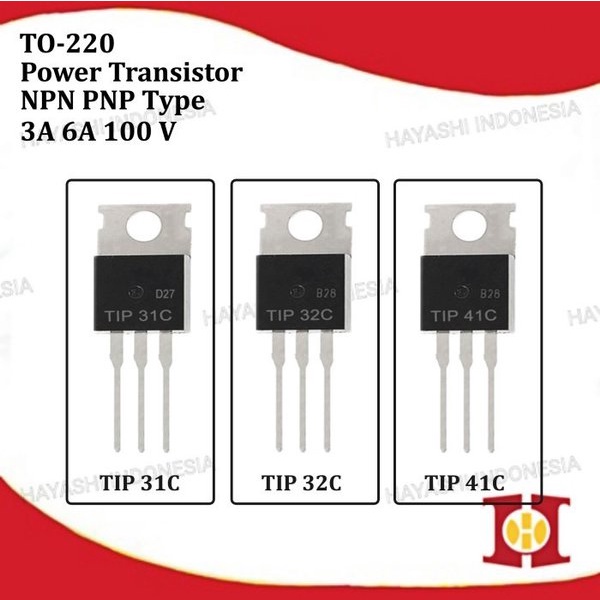

Tersedia Varian :
1. TIP 31C
2. TIP 32C
3. TIP 41C
4. TIP 42C

* Spesifikasi :

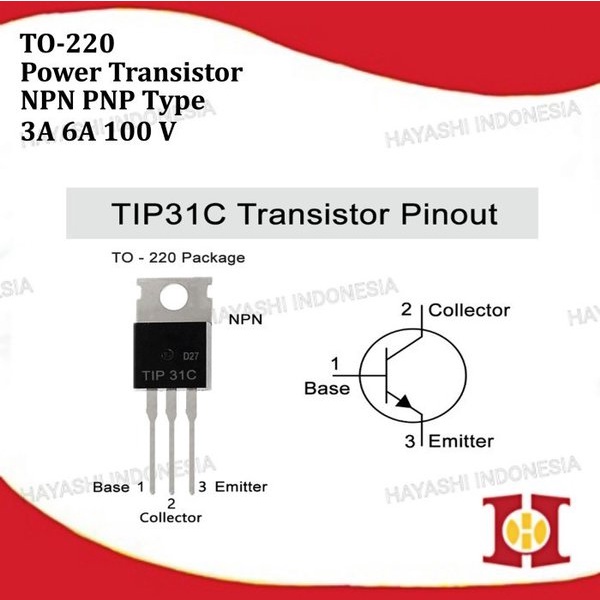

1. TIP 31C
- Package Type: TO-220
- Transistor Type: NPN
- Max Collector Current(IC): 3A
- Max Collector-Emitter Voltage (VCE): 100V
- Max Collector-Base Voltage (VCB): 100V
- Max Emitter-Base Voltage (VEBO): 5V
- Max Collector Dissipation (Pc): 40 Watt
- Max Transition Frequency (fT): 3 MHz
- Minimum & Maximum DC Current Gain (hFE): 10 50
- Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

2. TIP 32C
- Package Type: TO-220
- Transistor Type: PNP
- Max Collector Current(IC): 3A or -3000mA
- Max Collector-Emitter Voltage (VCE): 100V
- Max Collector-Base Voltage (VCB): 100V
- Max Emitter-Base Voltage (VEBO): 5V
- Max Collector Dissipation (Pc): 40W
- Max Transition Frequency (fT): 3 MHz
- Minimum & Maximum DC Current Gain (hFE): 10 50
- Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

3. TIP 41C
- Package Type: TO-220
- Transistor Type: NPN
- Max Collector Current(IC): 6A or 6000mA
- Max Collector-Emitter Voltage (VCE): 100V
- Max Collector-Base Voltage (VCB): 100V
- Max Emitter-Base Voltage (VEBO): 5V
- Max Collector Dissipation (Pc): 65W
- Max Transition Frequency (fT): 3 MHz
- Minimum & Maximum DC Current Gain (hFE): 15 75
- Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
