TRANSISTOR MOSFED 50N06 / FQP 50N06 OEM / FQP 50 N 06
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Fan & Heatsink > TRANSISTOR MOSFED 50N06 / FQP 50N06 OEM / FQP 50 N 06
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail TRANSISTOR MOSFED 50N06 / FQP 50N06 OEM / FQP 50 N 06
Varian "Original ON" adalah produk ASLI dari ON Semiconductor (Fairchild Semiconductor)Mfr. #:FQP50N06
Yang biasa marking-nya bisa ON atau Fairchild. Yang asli PASTI selalu ON (Fairchild sudah diakuisisi oleh ON).
General Description:
---------------------------
These N-Channel enhancement mode power field effect transistors are produced using Fairchilds proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery operated products.
Features
- 50A, 60V, RDS(on) = 0.022 @VGS = 10 V
- Low gate charge ( typical 31 nC)
- Low Crss ( typical 65 pF)
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
- 175C maximum junction temperature rating

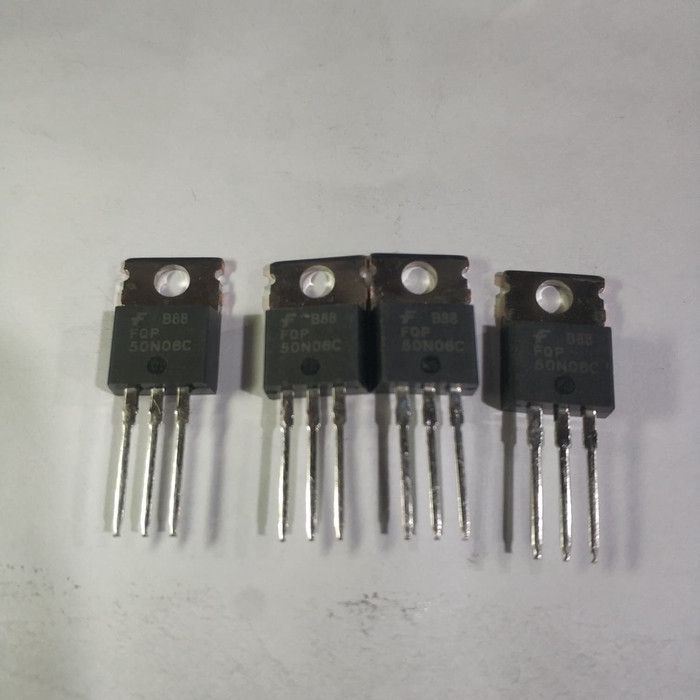

Gambar produk
