Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA

Elektronik > Elektronik Lainnya > Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:EasyWare ElectronicsLihat semua produk Elektronik oleh EasyWare Electronics
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA

Hi #RekanEasyWare ...
EasyWare Part#: EP001634

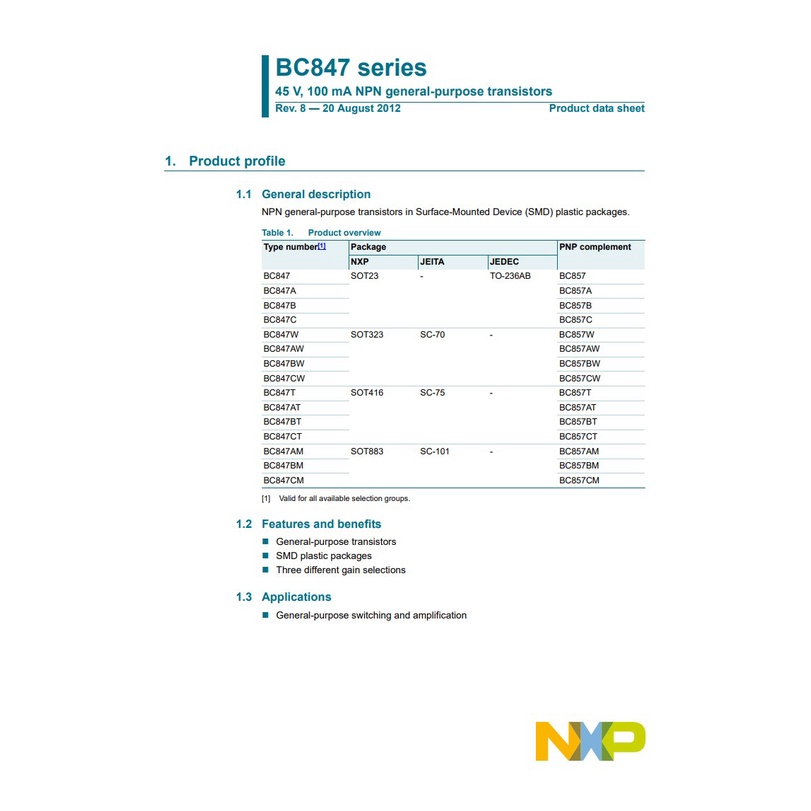

*untuk datasheet ada digambar kedua (atau bisa mengubungi kami via chat).

Spesifications :
- Manufacturer: NXP Semiconductors
- Mfr. Part: BC847C 1GW
- Package: SOT-23
- Collector-Emitter Breakdown Voltage (Vceo): 45V
- Power Dissipation (Pd): 250mW
- Collector Current (Ic): 100mA
- DC Current Gain (hFE@Ic,Vce): 520@2mA,5V
- Transition Frequency (fT): 100MHz
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 200mV@100mA,5mA
- Transistor Type: NPN
- Operating Temperature: +150℃@(Tj)

Package :
- 1x Transistor BC847C SOT-23 (NXP)

Gambar produk

Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA
Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA
Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA
Transistor BC847 SOT-123 BC847C 1GW SOT123 BC847 SMD ORI NXP NEXPERIA
Lihat lebih banyak informasi produk
