TRANSISTOR 9012 S9012 C9012 TO-92

Elektronik > Elektronik Lainnya > TRANSISTOR 9012 S9012 C9012 TO-92
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail TRANSISTOR 9012 S9012 C9012 TO-92

Hi #RekanEasyWare ...
EasyWare Part#: EP001632

SPESIFIKASI :
- Transistor Type PNP
- Current - Collector (Ic) (Max) 500mA
- Voltage - Collector Emitter Breakdown (Max) 20V
- Vce Saturation (Max) @ Ib, Ic 600mV @ 50mA, 500mA
- Current - Collector Cutoff (Max) 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce 112 @ 50mA, 1V
- Power - Max 625mW
- Frequency - Transition -
- Operating Temperature 150°C (TJ)
- Mounting Type Through Hole

KELENGKAPAN :
- 1pcs 9012 TO-92

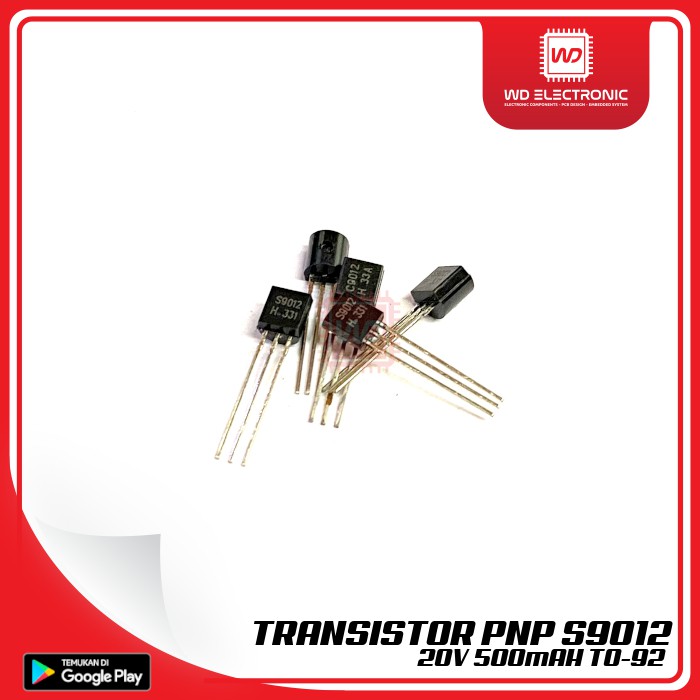

Gambar produk

TRANSISTOR 9012 S9012 C9012 TO-92
TRANSISTOR 9012 S9012 C9012 TO-92
