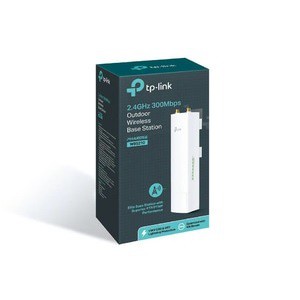

TPLink WBS210 Access Point Outdoor 2.4GHz 300Mbps Base Station WBS-210

Detail TPLink WBS210 Access Point Outdoor 2.4GHz 300Mbps Base Station WBS-210

Broad operating frequency channels ensure less wireless interference
Wireless N speed up to 300Mbps
Selectable bandwidth of 5/10/20/40MHz
Adjustable transmission power from 0 to 27dBm/500mW
2 RP-SMA connectors for external MIMO antenna
Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km
1 10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
Centralized Management System Pharos Control
Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
Weatherproof enclosure, 15kV ESD and 6KV lightning protection

HARDWARE FEATURES
Processor Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port
1 10/100Mbps Shielded Ethernet Port (LAN1)
2 RP-SMA
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions ( W x D x H ) 1987540 mm
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IP65 water and dust proof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitation of the contries or regions in which the device is used.
Transmission Power 27dBm/500mW (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels dependi
