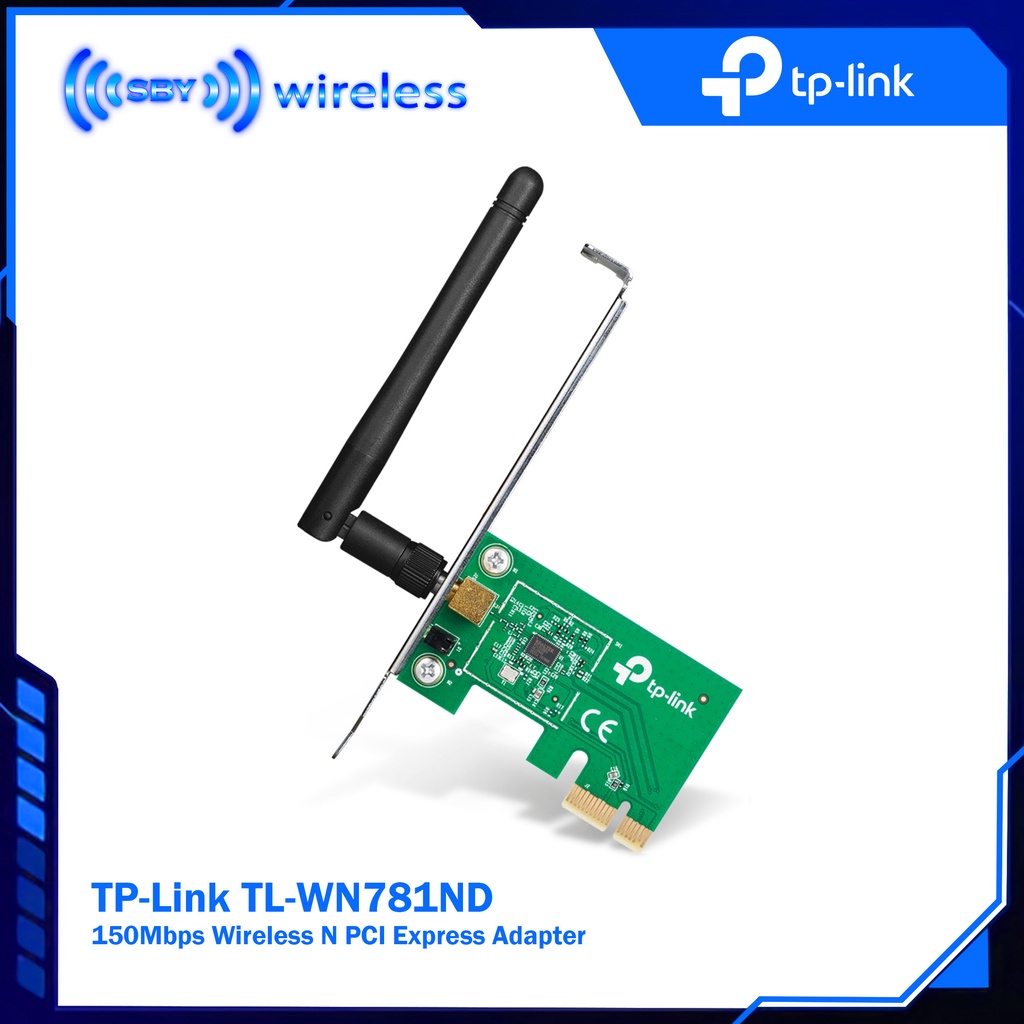

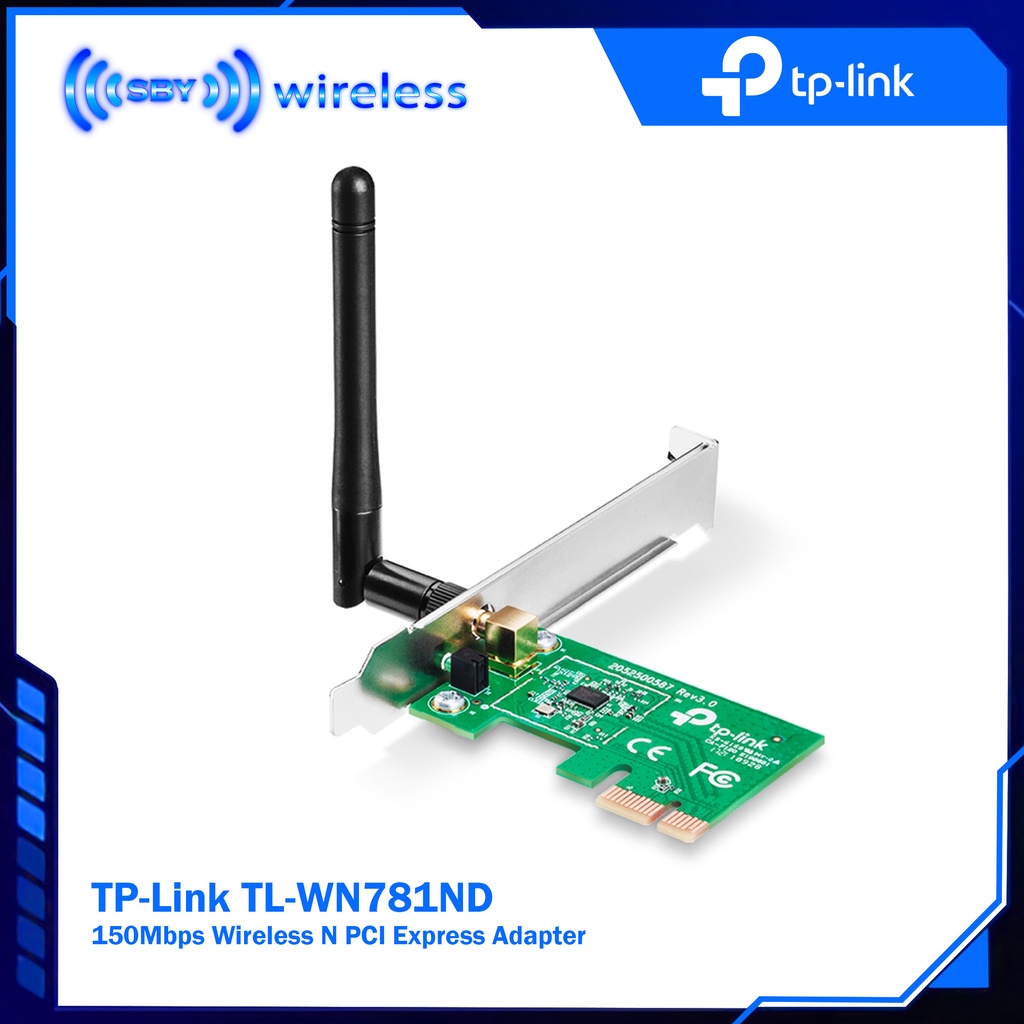

TPLINK TL-WN781ND 150Mbps Wireless N PCI Express Adapter

Detail TPLINK TL-WN781ND 150Mbps Wireless N PCI Express Adapter

TPLINK TL-WN781ND 150Mbps Wireless N PCI Express Adapter

Up to 150Mbps wireless transmission rate
Provides PCI Express interface
Advanced secure connection with WPA/WPA2 encryption
Bundled utility enables easy management

HARDWARE FEATURES
Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type Detachable Omni Directional (RP-SMA)
Antenna Gain 2dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter
Detachable Omni directional antenna
Resource CD
Quick Installation Guide
System Requirements Windows XP/Vista/7/8/8.1/10(32/64bits)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
