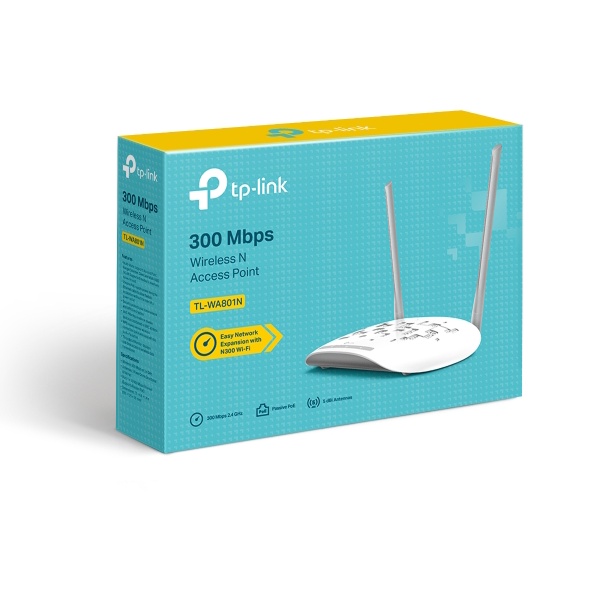

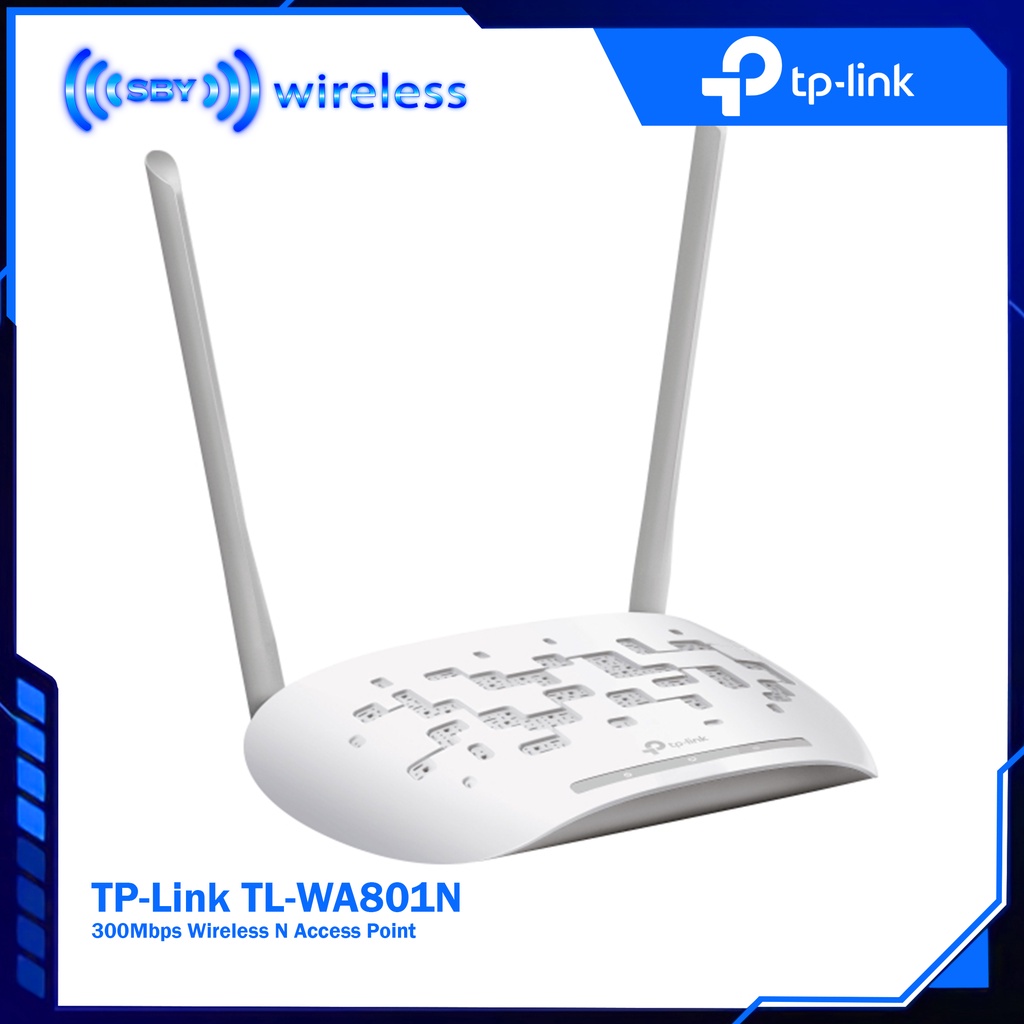

TPLINK TL-WA801N - 300Mbps Wireless N Access Point TLWA801N

Detail TPLINK TL-WA801N - 300Mbps Wireless N Access Point TLWA801N

TPLINK TL-WA801N - 300Mbps Wireless N Access Point TLWA801N

300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming
Supports multiple operation modes: Access Point, Multi-SSID, Client, Repeater, Bridge with AP
Easily setup a WPA encrypted secure connection at a push of the WPS button


HARDWARE FEATURES
Interface One 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button Power On/Off Button
WPS Button
Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type 2*5dBi Detachable Omni Directional (RP-SMA)

WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes AP Mode
Multi-SSID Mode
Client Mode
Repeater Mode
Bridge with AP Mode
Wireless Functions Enable/Disable Wireless Radio
MAC Address Filter
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters Passive PoE is supported
OTHERS
Certification CE, FCC, RoHS

Package Contents :
Wireless Access Point TL-WA801N
Power supply unit
Passive PoE Power Injector
Quick Installation Guide
RJ-45 Ethernet Cable

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 10,
MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
