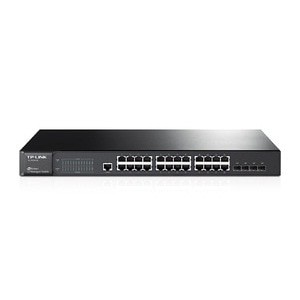

TPLINK TL-SG3424P ( T2600G-28MPS ) JetStream 24 Port Gigabit POE+ L2 Managed 4 SFP

Detail TPLINK TL-SG3424P ( T2600G-28MPS ) JetStream 24 Port Gigabit POE+ L2 Managed 4 SFP

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p,IEEE 802.3at,IEEE 802.3af
Interface 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo 100/1000Mbps SFP Slots
1 Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX:MMF,SMF
1000BASE-X: MMF, SMF
Fan Quantity 3
Power Supply 100~240VAC, 50/60Hz
Power Consumption Maximum (PoE on): 358.2W (220V/50Hz)
Maximum (PoE off): 38.2W (220V/50Hz)
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 320W
Dimensions ( W x D x H ) 17.32*13*1.73 in.(440*330*44 mm)
PERFORMANCE
Bandwidth/Backplane 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8k
Jumbo Frame 10240 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
LLDP, LLDP-Med
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Access Control List L2L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Security IP-MAC-Port-VID Binding
IEEE 802
