TPLink TL-SG2452 T1600G-52TS Switch JetStream 48 Port Gigabit Smart 4 SFP SG2452

Detail TPLink TL-SG2452 T1600G-52TS Switch JetStream 48 Port Gigabit Smart 4 SFP SG2452

- Standar dan Protokol : IEEE 802.3i,IEEE 802.3u,IEEE
802.3ab,IEEE802.3z,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p
- Tampilan :
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
- Fan Quantity : 2
- Bandwidth/Backplane : 104Gbps
- Tabel Alamat MAC : 8k
- Paket Penerusan Rate : 77.4Mpps
- Rangka Jumbo : 10240 Bytes
FITUR PERANGKAT LUNAK
- Quality of Service :
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Fitur L2 IGMP Snooping V1/V2/V3
LAG(Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
- VLAN : Mendukung Sampai 512 VLANs secara simultan (out of 4K VLAN IDs)
- Keamanan :
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
- Manajemen :
Web-based GUI
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: Web
System Diagnose: VCT
SYSLOG & Public MIBS
Lainnya
- Sertifikasi : CE, FCC, RoHS
- Isi Paket :
TL-SG2452
Power Cord
Panduan Instalasi
Resource CD
Rackmount Kit
Rubber Feet
- Kebutuhan Sistem : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

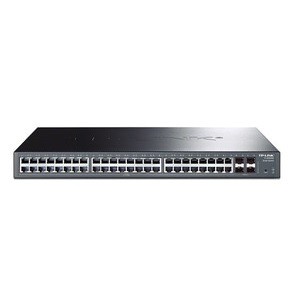

Gambar produk
