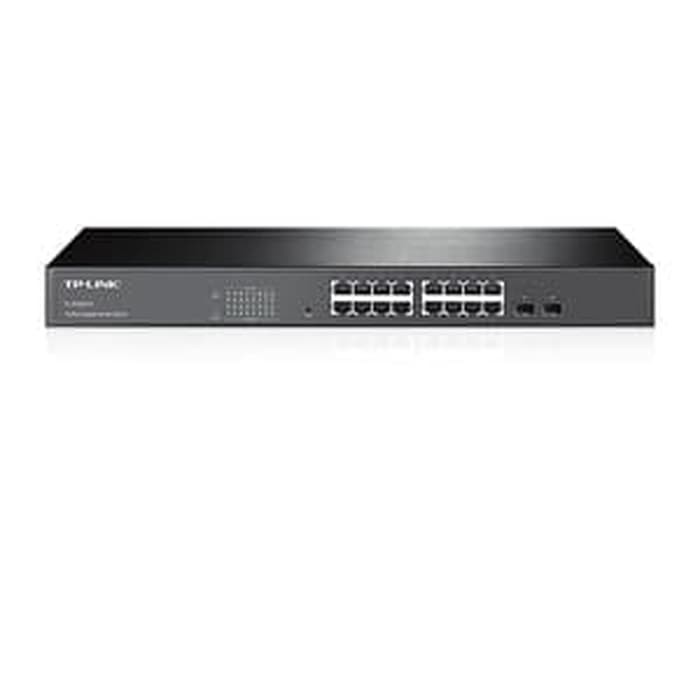

TPLINK TL-SG2216 16-Port Gigabit Smart Switch with 2 Combo

Detail TPLINK TL-SG2216 16-Port Gigabit Smart Switch with 2 Combo

Deskripsi Produk
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface 16 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
2 Combo 100/1000Mbps SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
Power Consumption Maximum: 14.4W (220V/50Hz)
Dimensions ( W x D x H ) 17.3* 7.1* 1.7 in. (440* 180* 44 mm)
PERFORMANCE
Bandwidth/Backplane 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8k
Jumbo Frame 10240 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius AuthenticationIP-Mac-Port-VID BindingARP InspectionDHCP SnoopingDoS Defend
Management Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TF
