TPLINK TL-SG2008 8-Port Gigabit Smart Switch

Detail TPLINK TL-SG2008 8-Port Gigabit Smart Switch

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface 8 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
External Power Adapter(Output: 12VDC/1A)
Dimensions (W X D X H) 8.2* 4.9* 1.0 in. (209* 126* 26mm)
Power Consumption Maximum: 6.42W (220V/50Hz)
PERFORMANCE
Bandwidth/Backplane 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 8k
Jumbo Frame 9216 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List L2L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Security SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius AuthenticationIP-Mac-Port-VID BindingARP InspectionDHCP SnoopingDoS Defend
Management Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade

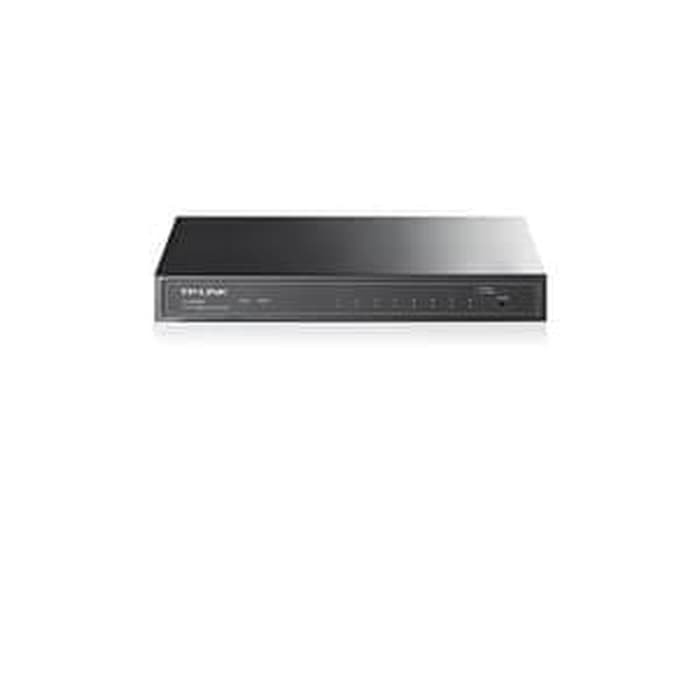

Gambar produk
