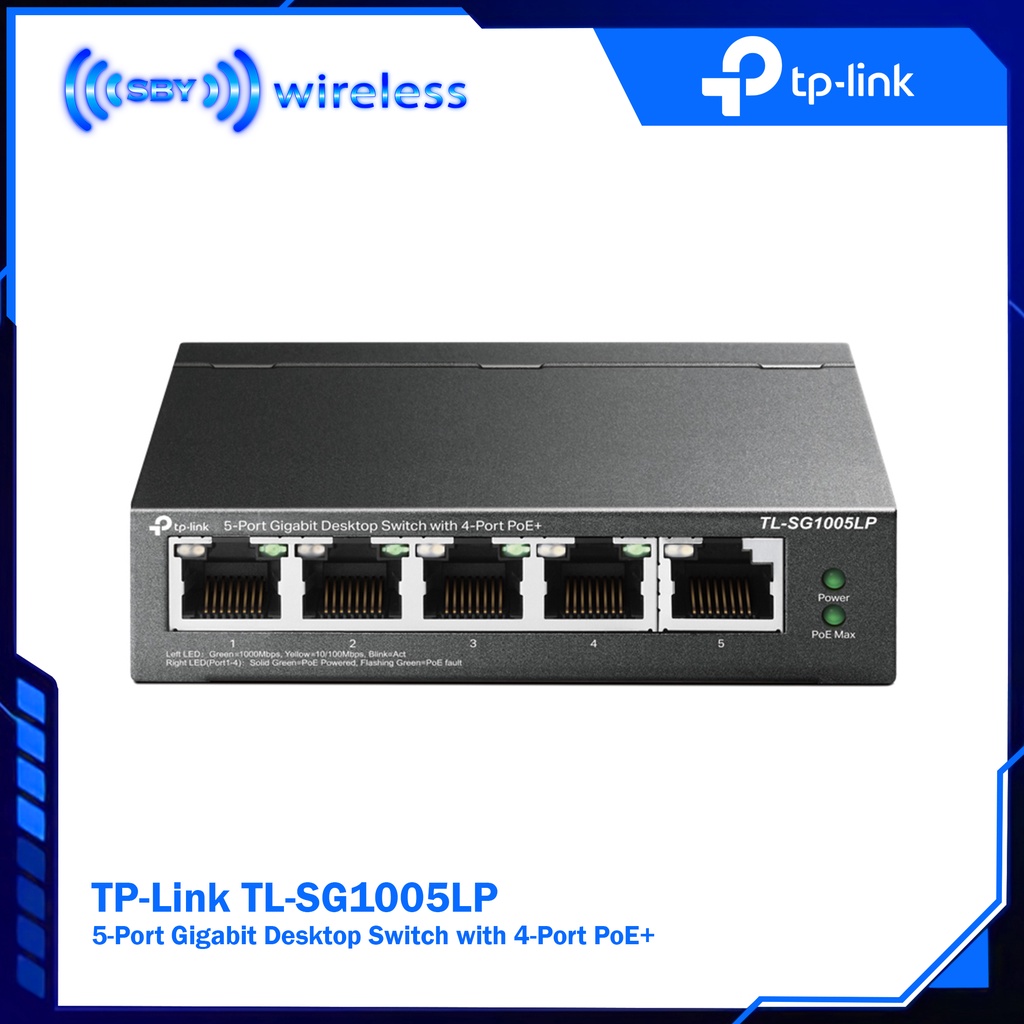

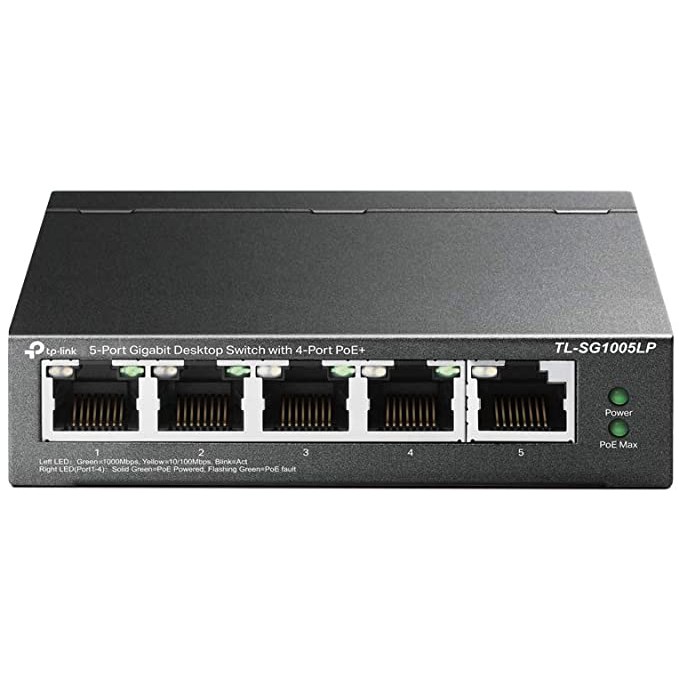

TPLINK TL-SG1005LP - 5-Port Gigabit Desktop Switch with 4-Port PoE+ TP-Link

Detail TPLINK TL-SG1005LP - 5-Port Gigabit Desktop Switch with 4-Port PoE+ TP-Link

TPLINK TL-SG1005LP - 5-Port Gigabit Desktop Switch with 4-Port PoE+ TP-Link

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports*

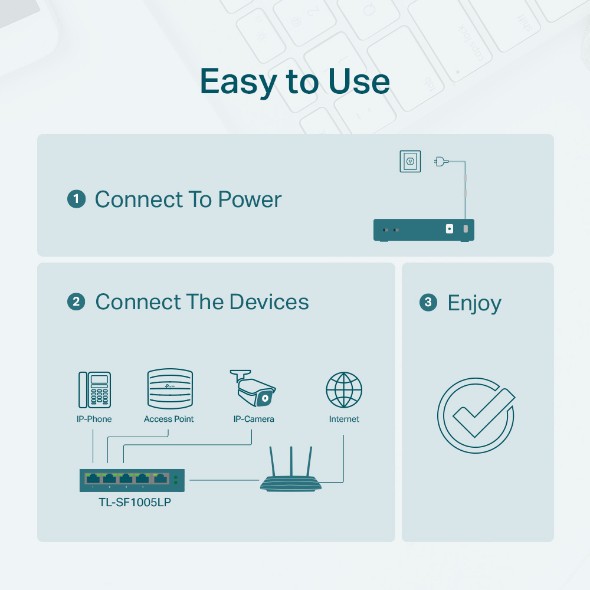

Plug and play, no configuration and installation required

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

HARDWARE FEATURES
Interface • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption • 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation • 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS

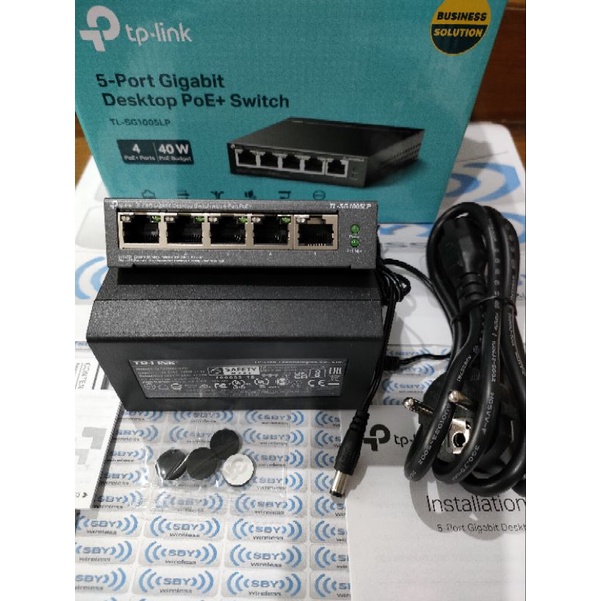

Package Contents • TL-SG1005LP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
