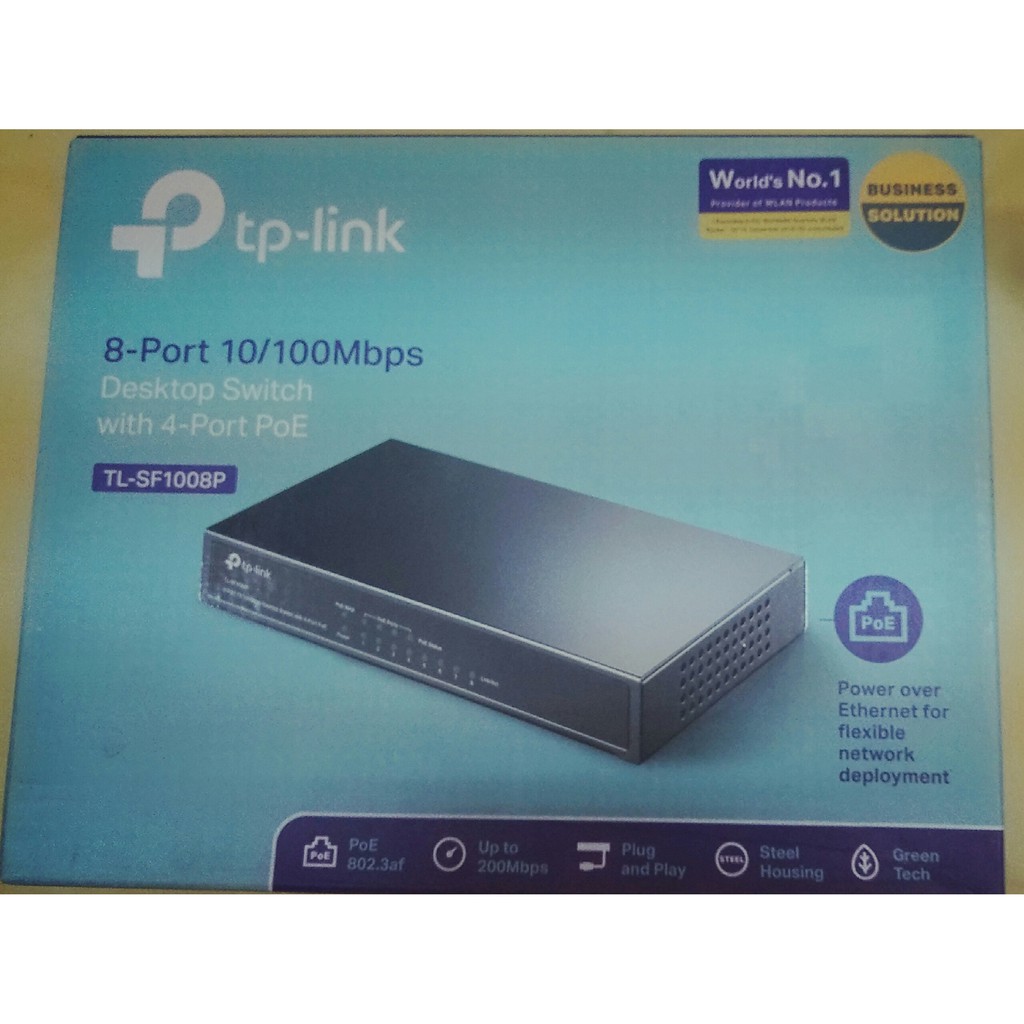

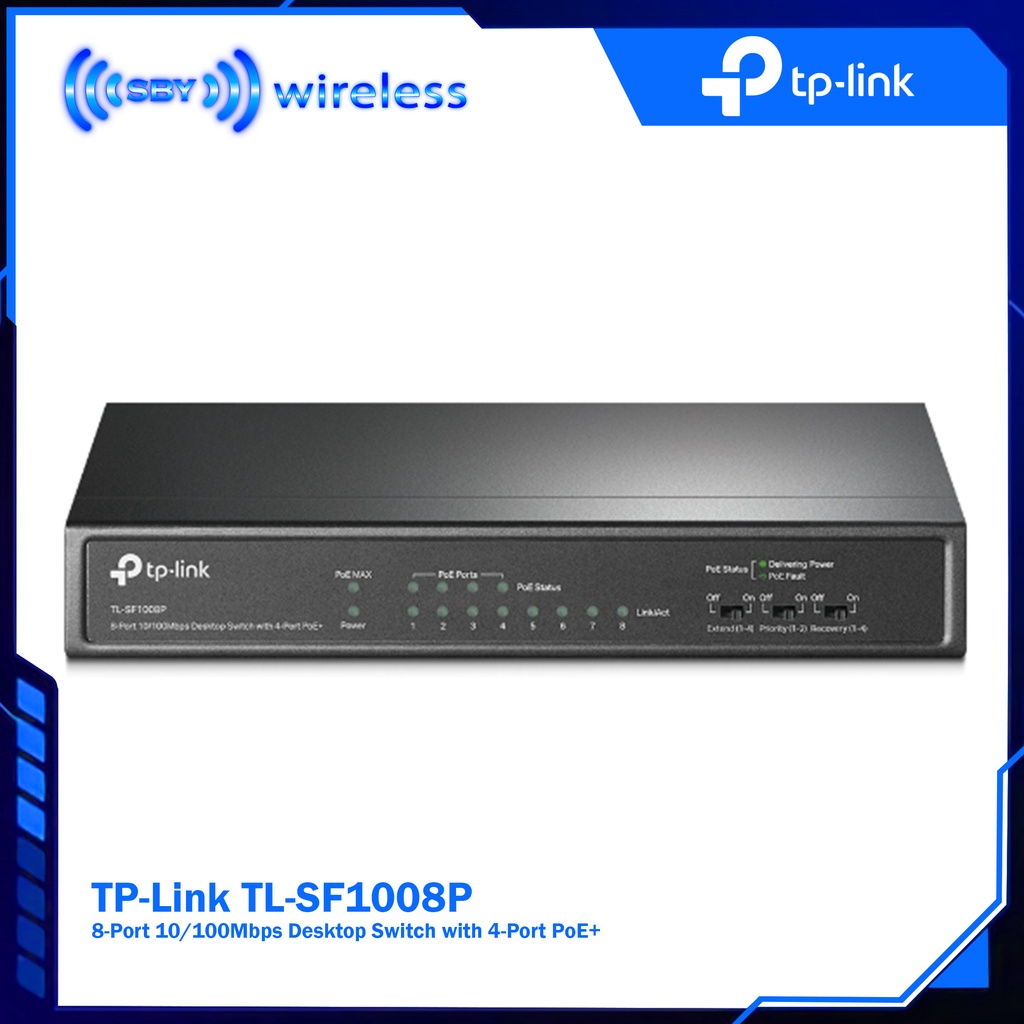

TPLINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-Link

Detail TPLINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-Link

TPLINK ,8-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1008P

With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 57W for all PoE ports
Requires no configuration and installation
HARDWARE FEATURES
Interface 8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Consumption Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth 1.6Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
Max Power Consumption 2.66(220/50Hz. no PD connected)
65.92(220/50Hz. with 57W PD connected)
Max Heat Dissipation 9.08BTU/h(no PD connected)
224.92BTU/h(with 57W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1008P, Power Adapter, User Guide
Consumption 2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
#TPLINK#SWITCH HUB#POE#SF1008P
