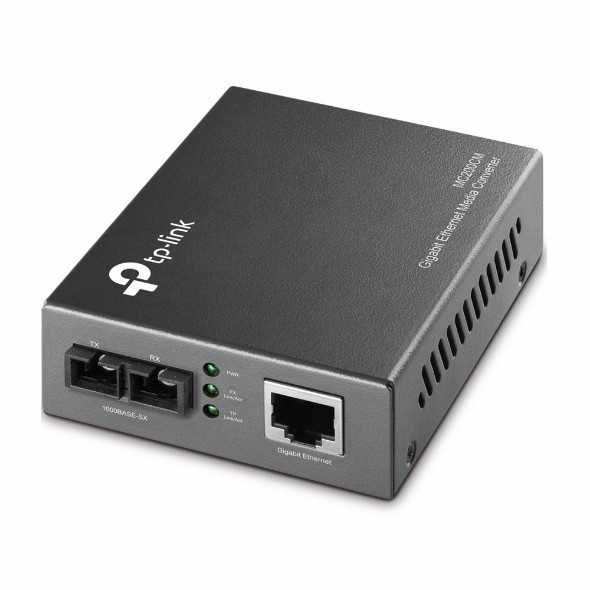

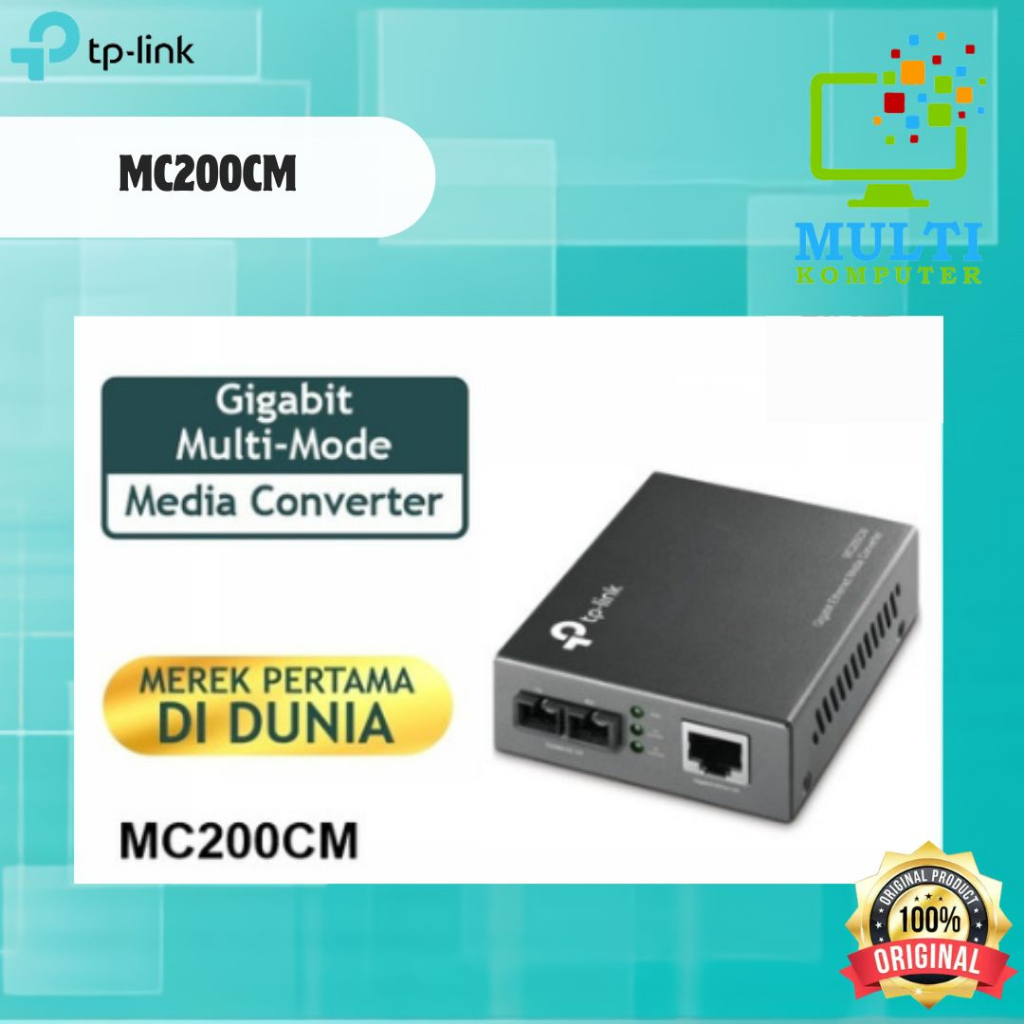

TPLINK TL- MC200CM Gigabit Multi-Mode Media Converter

Detail TPLINK TL- MC200CM Gigabit Multi-Mode Media Converter

• 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• Extends fiber distance up to 0.55km

Spesifikasi :
MEDIA CONVERTER & MODULE
Standards and Protocols : IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function :
• Full Duplex Flow Control (IEEE 802.3x)
• Extends fiber distance up to 0.5km using 50/125um fiber
• Extends fiber distance up to 0.22km using 62.5/125um fiber

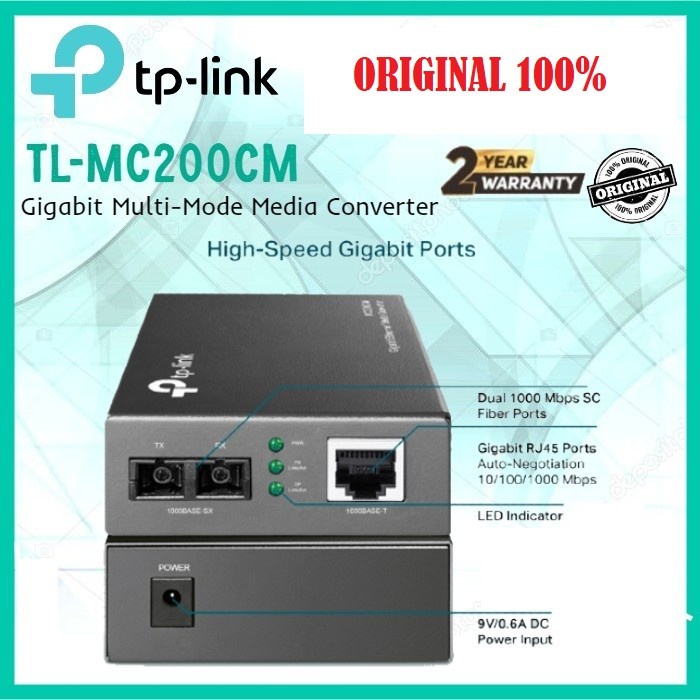

Ports :
• 1 1000M SC/UPC port
• 1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length : 850nm
Network Media 1000BASE-FX : Multi-mode Fiber
Network Media 1000BASE-SX : Multi-mode Fiber
Network Media 1000BASE-T :
• UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators : PWR, LINK, RX
Power Supply : External Power Adapter
Max Power Consumption : 5.5W
Safety & Emission : FCC, CE, RoHS
Environment :
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
