TP-Link MC112CS
10/100Mbps WDM Media Converter

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20km

Spesifikasi :
MEDIA CONVERTER & MODULE
Standards and Protocols : IEEE 802.3i, IEEE 802.3u
Basic Function :
• Adopts WDM technology
• Half/Full-Duplex transfer mode for FX port
• Extends fiber distance up to 20km
Ports :
• 1 100M SC/UPC port
• 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length : 1310nm Tx/1550nm Rx
WDM TX : 1310nm
WDM RX : 1550nm
Network Media 10BASE-T :
• UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T :
• UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX : Single-mode Fiber
LED Indicators : PWR, Link/Act
Power Supply : External Power Adapter
Max Power Consumption : 1.18W
Safety & Emission : FCC, CE, RoHS
Environment :
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

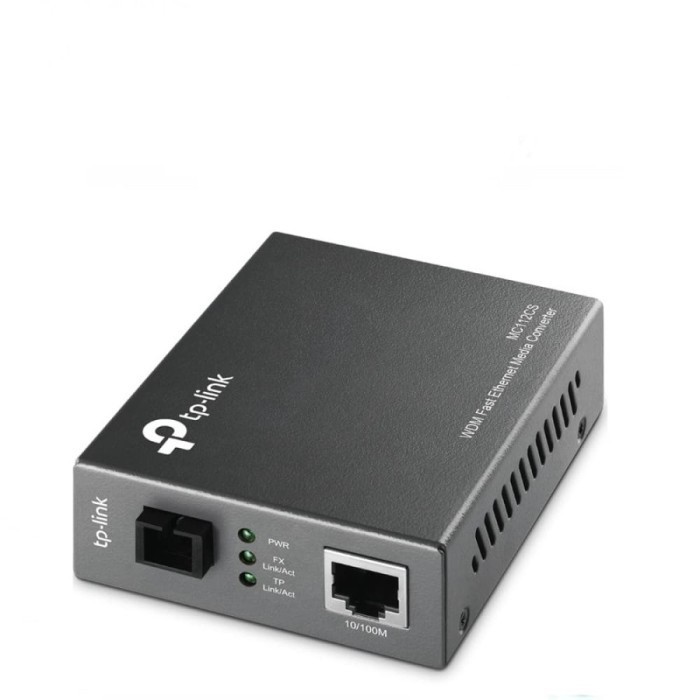

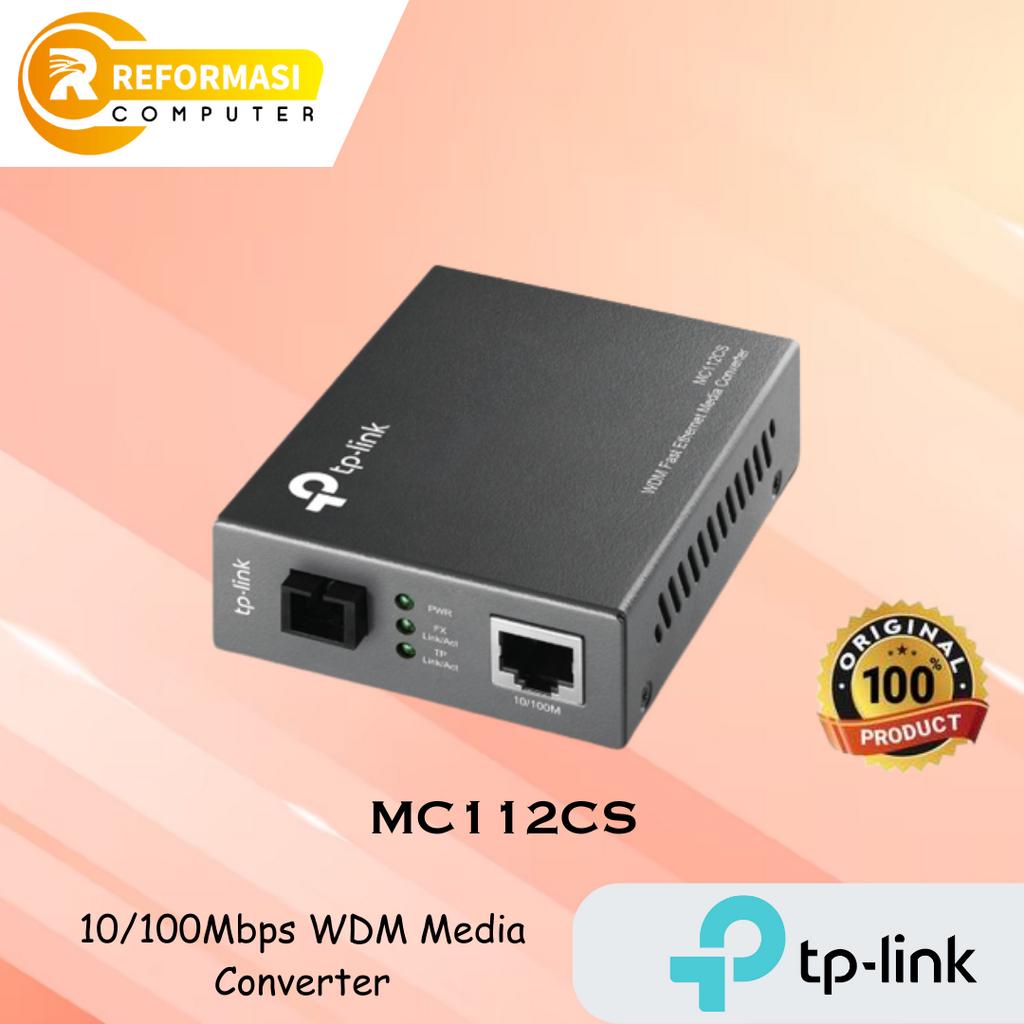

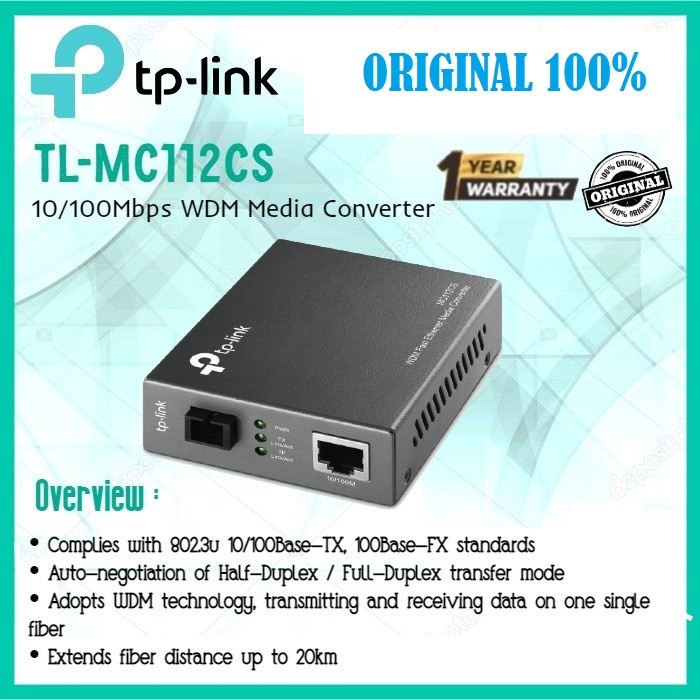

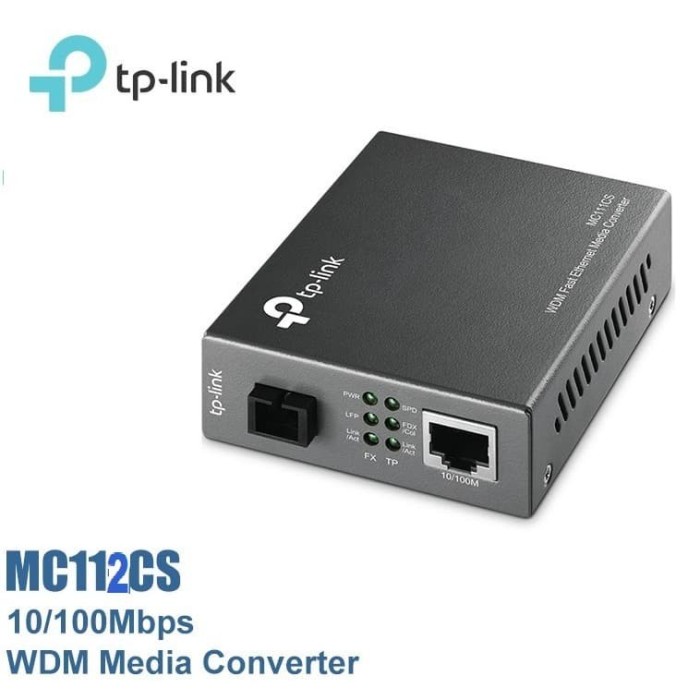

Gambar produk
