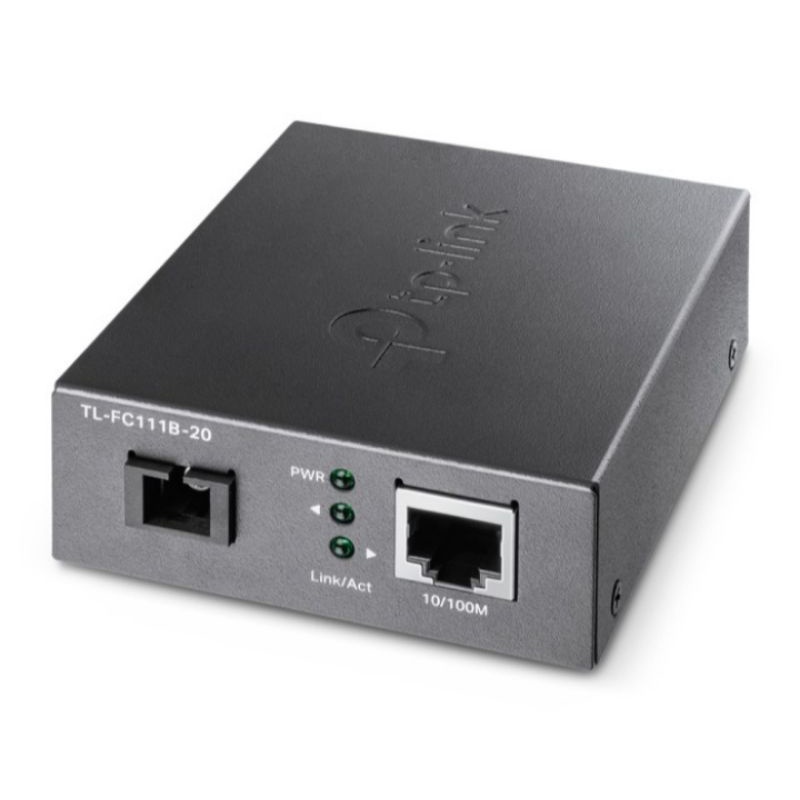

TPLink TL-FC111B-20 Media Converter Single Mode 100Mbps FC111B

Detail TPLink TL-FC111B-20 Media Converter Single Mode 100Mbps FC111B

NETWORK
Standards and Protocols : IEEE802.3, IEEE802.3i, IEEE802.3u

ENVIRONMENT
Operating Temperature : 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature : -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity : 10% to 90% RH non-condensing
Storage Humidity : 5% to 90% RH non-condensing

HARDWARE FEATURES
Network Media : 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply : External Power Adapter: 5 V/0.6 A
LED : PWR, Link/Act

ANTENNA
Connector Type : 1 SC fiber optic, 1 RJ45 jack

MEDIA CONVERTER & MODULE
Standards and Protocols : IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function :
-Auto-negotiation of half-duplex / full-duplex transfer mode
-Full-duplex flow control (IEEE 802.3x)
-Half-duplex flow control (Backpressure)
-Extends fiber distance up to 20km (12.4 miles)
Ports :
-1x 100M single SC/UPC port
-1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX : 1310 nm
WDM RX : 1550 nm
Network Media 10BASE-T :
-UTP category 3, 4, 5 cable (maximum 100m)
-EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T :
-UTP category 5, 5e cable (maximum 100m)
-EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX : Single-mode fiber
LED Indicators : PWR, Link/Act
Power Supply : External Power Adapter: 5 V/0.6 A
Safety & Emission : FCC, CE, RoHS
Fiber Type : 9/125 μm single-mode fber (≤20 km)
Environment :
-Operating Temperature: 0℃~50℃ (32℉~122℉)
-Storage Temperature: -40℃~70℃ (-40℉~158℉)
-Operating Humidity: 10%~90% non-condensing
-Storage Humidity: 5%~90% non-condensing
