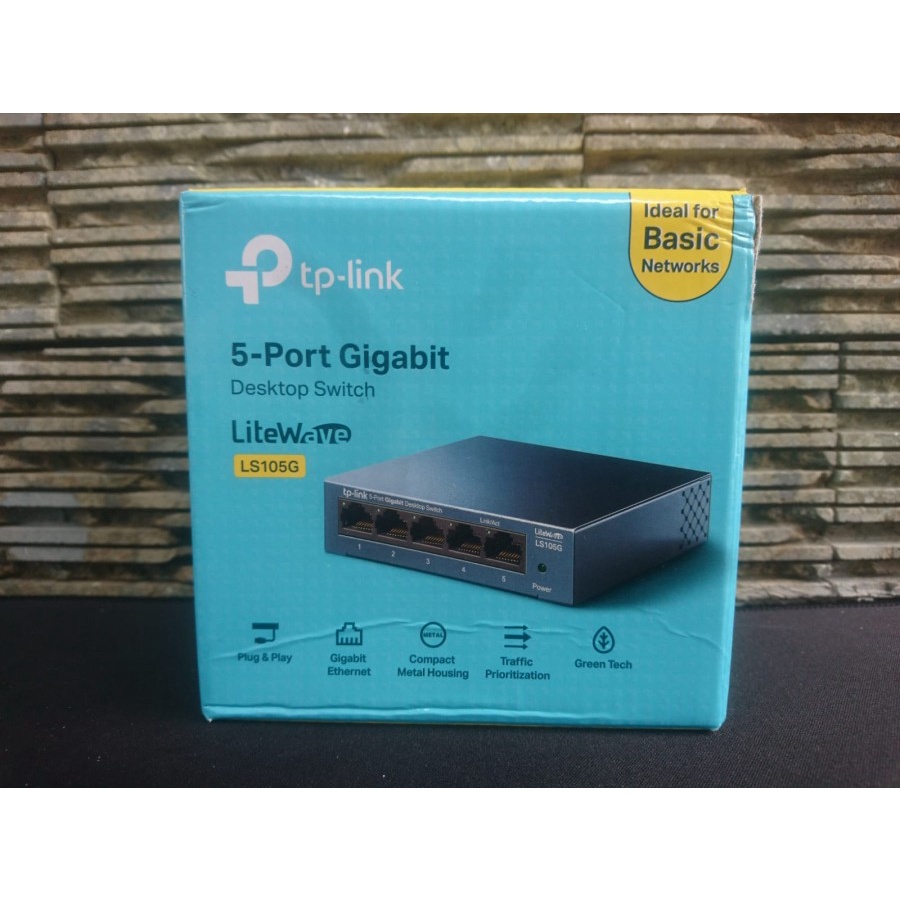

TPLINK SWITCH HUB 5 PORT LS105G GIGABIT LITEWAVE

Detail TPLINK SWITCH HUB 5 PORT LS105G GIGABIT LITEWAVE

Overview :
● 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
● Green Ethernet technology saves power
● IEEE 802.3X flow control provides reliable data transfer
● Steel housing, desktop or wall-mounting design
● Support 802.1p/DSCP QoS function
● Plug and play, no configuration needed

Specifications :

HARDWARE FEATURES
Standards and Protocols : IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface : 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity : Fanless
External Power Supply : External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator :
• System Power
• Link/Act indicators per port built into each RJ-45 port
Max Power Consumption : 2.776W (220V/50Hz)
Max Heat Dissipation : 9.466 BTU/h

PERFORMANCE
Packet Forwarding Rate : 7.4 Mpps
MAC Address Table : 2K
Packet Buffer Memory : 1 Mb
Jumbo Frame : 16 KB

SOFTWARE FEATURES
Advanced Features :
• Green Technology
• 802.3X Flow Control
• 802.1P/DSCP QoS
Transfer Method : Store and Forward

OTHERS
Certification : CE, FCC, RoHS
Package Contents :
• 5-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
Environment :
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing
