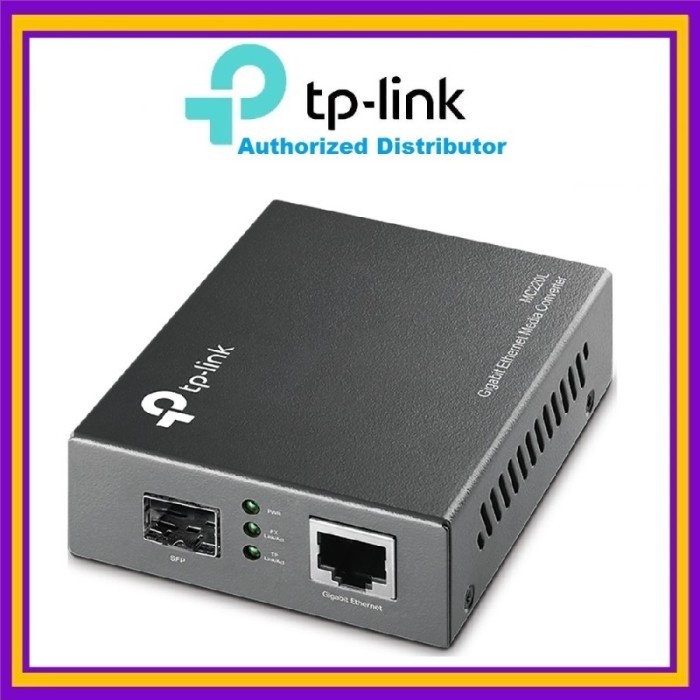

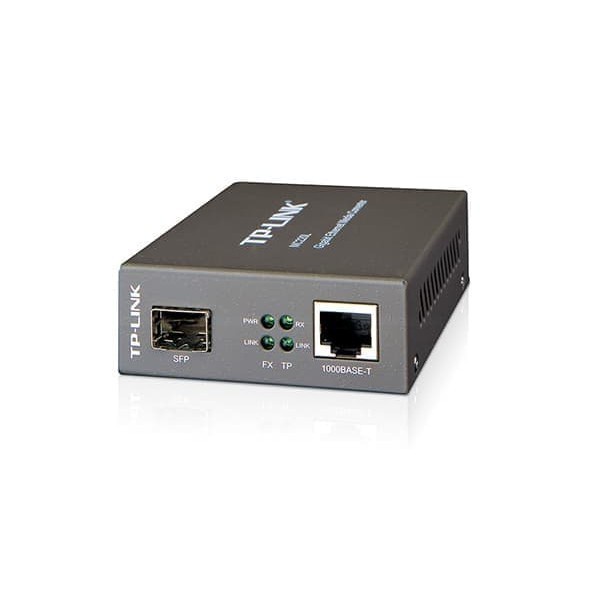

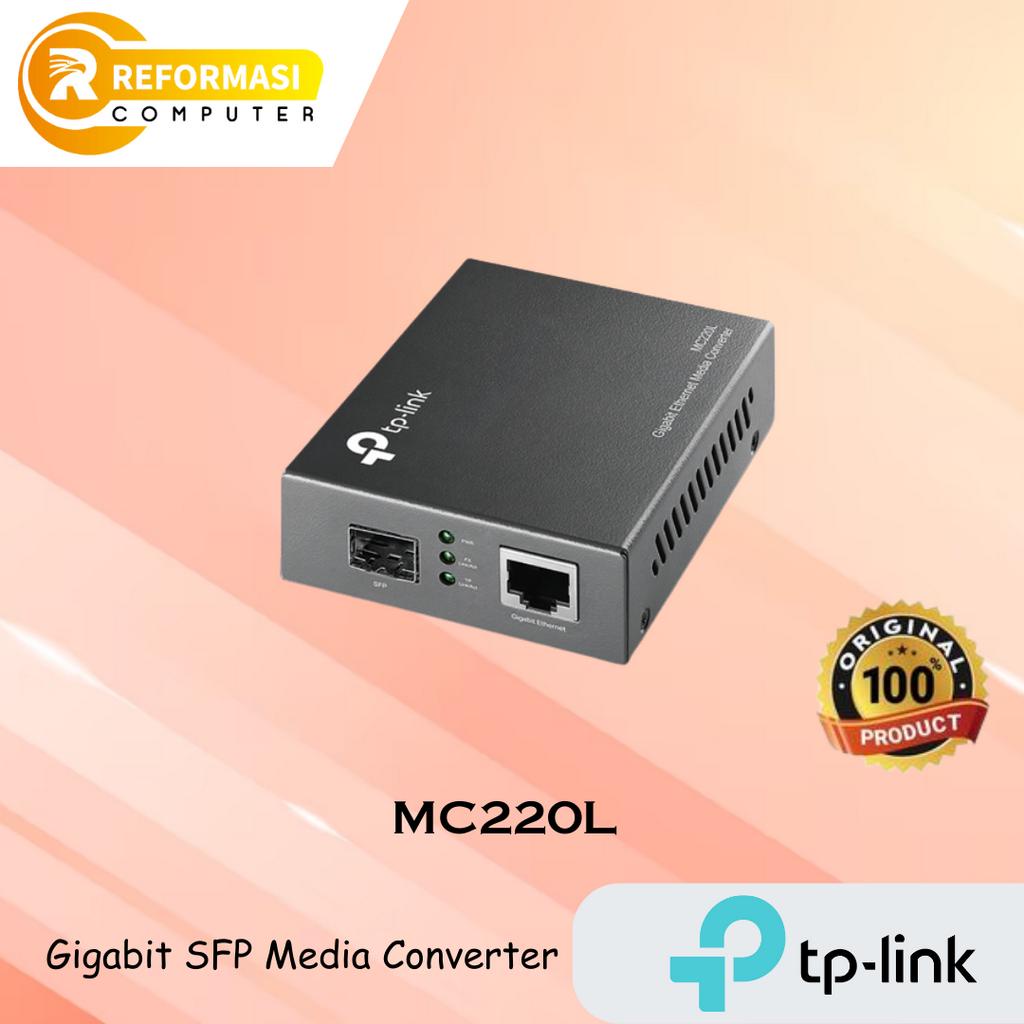

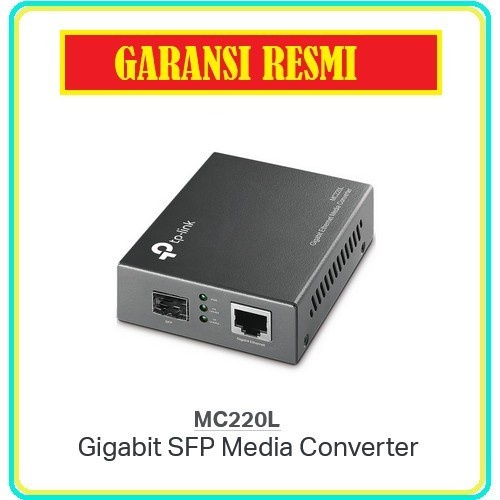

TPLINK MC220L Gigabit Ethernet SFP Media Converter

Detail TPLINK MC220L Gigabit Ethernet SFP Media Converter

Garansi Resmi TP-LINK Indonesia 1 Tahun

TP-LINK MC220L
Gigabit Ethernet Media Converter

- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP

The MC220L is a media converter designed to convert between 1000BASE-SX/LX fiber
and 10/100/1000Base-T copper media. It easily extends the distance of an
existing gigabit network via fiber optic when integrated with the SFP Module.
The MC220L applies the IEEE802.3ab 1000Base-T & IEEE802.3z 1000Base-SX/LX
standards as part of its intended use with multi-mode/single-mode SFP Module.
Long-range point-to-point connections are easily built with the gigabit fiber
converters, making them ideal for network connections across multiple buildings,
for remote surveillance and automated factory equipment.

MEDIA CONVERTER & MODULE
- Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
- Basic Function Full Duplex Flow Control (IEEE 802.3x)
- Extends fiber distance up to 0.5km using 50/125um fiber
- Ports 1 Gigabit SFP port
- 1 1000M RJ45 port (Auto MDI/MDIX)
- Wave Length Depends on the used SFP module
- Network Media 1000BASE-FX Multi-mode/Single-mode SFP module
- Network Media 1000BASE-T UTP category 5, 5e, 6 cable (maxium 100m)
- EIA/TIA-568 100 STP (maximum 100m)
- LED Indicators PWR, LINK, RX
- Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
- Power Supply External Power Adapter
- Max Power Consumption 3.95W
- Safety & Emission FCC, CE
- Environment Operating Temperature: 0~40 (32~104)
- Storage Temperature: -40~70 (-40~158)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

Gambar produk
