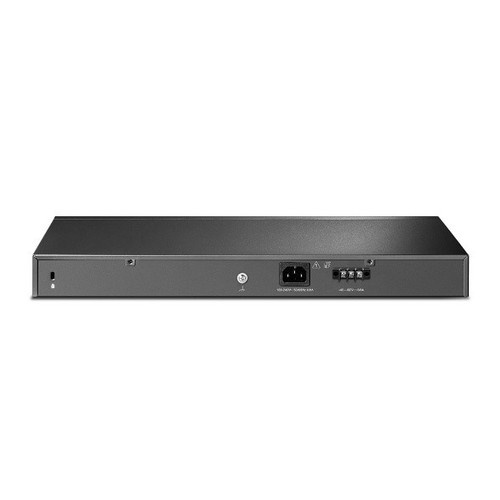

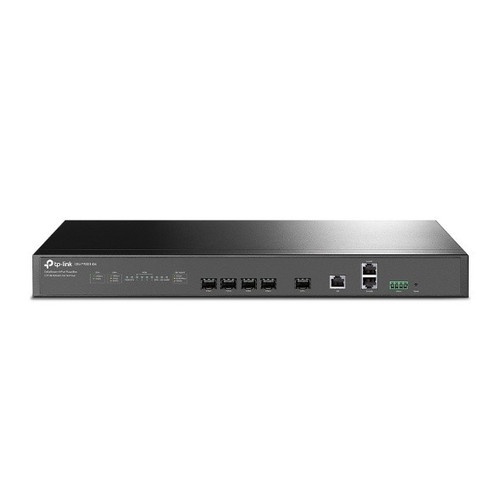

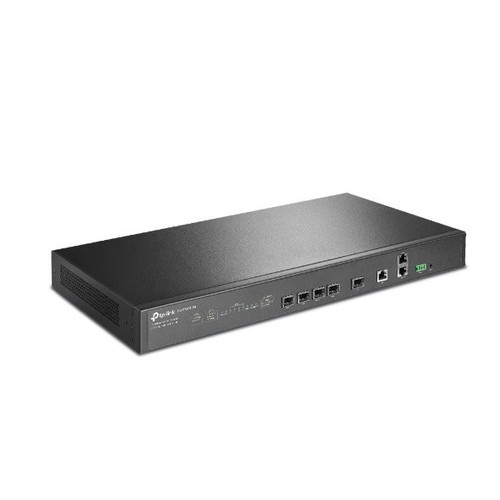

TPLink DS-P7001-04 Deltastream 4-Port Gpon Optical Line Terminal TP-Link DS P7001 08 W

Detail TPLink DS-P7001-04 Deltastream 4-Port Gpon Optical Line Terminal TP-Link DS P7001 08 W

4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
High-Speed Uplink Ports: Provides 1× 10GE SFP+ port and 1× gigabit uplink port.
Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
HARDWARE FEATURES
Interface • 4× 2.5G PON Ports
• 1× 10 Gbps SFP+ Uplink Port
• 1× 10/100/1000 Mbps RJ45 Uplink Port
• 1× RJ45 Console Port
• 1× RJ45 MGMT Port
• 1× Alarm Port (Reserved)
Button Reset Button
Power Supply Dual Power Supplies
• AC: 100V~240V, 50/60Hz
• DC: -38.4V~-72V
Power Consumption Max. 58W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180× 44 mm)
SOFTWARE FEATURES
Security • ACL
• 802.1x Authentication
• ARP Inspection
• IP Source Guard
DHCP • DHCP Server
• DHCP Relay
OMCI Standard OMCI Management Supported
ONU Authentication ONU Auto Authentication
ONU Security • Rouge ONU Detection and Isolation
• Uplink and Downlink Data Encryption
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS • IEEE 802.1p/DSCP QoS
• Voice VLAN
• Auto VoIP
Routing Static Routing
Mulitcast • IGMP Snooping
• MLD Snooping
Centralized Management • Large-Scale Devices Management
• OLT Batch Configure, Upgrade, Reboot
• Multi-Site Management
• Intelligent Network Monitoring
• Real-time Network Overview
