TPLink CPE605 Access Point Wireless WiFI Outdoor 23Dbi Litebeam CPE-605 M2

Detail TPLink CPE605 Access Point Wireless WiFI Outdoor 23Dbi Litebeam CPE-605 M2

Overview Of TP-Link CPE605 Tplink Litebeam 5GHZ 150MBps 23Dbi
MAXtream TDMA
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
HARDWARE FEATURES
Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions ( W x D x H ) 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
Antenna Gain 23dBi
Antenna Beamwidth 7°(Azimuth), 10°(Elevation)
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 150Mbps (40MHz,Dynamic)
Up to 72.2Mbps (20MHz,Dynamic)
Up to 36.1Mbps (10MHz,Dynamic)
Up to 18.05Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Transmit Power Max. 23dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
IPv6 Yes
Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Manageme Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agen

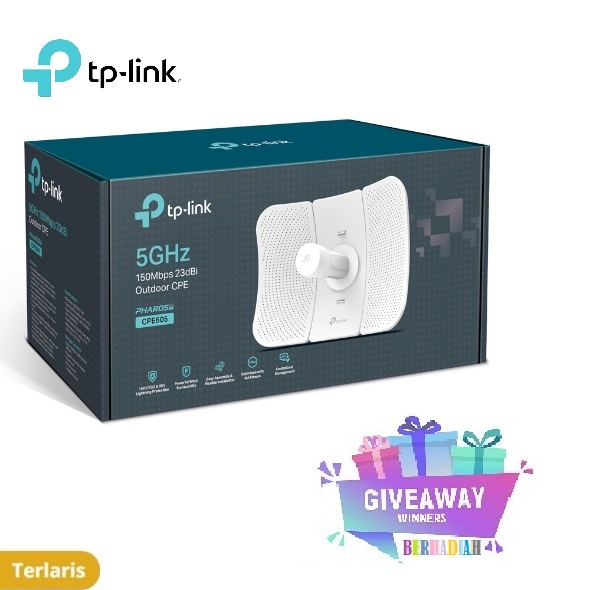

Gambar produk
