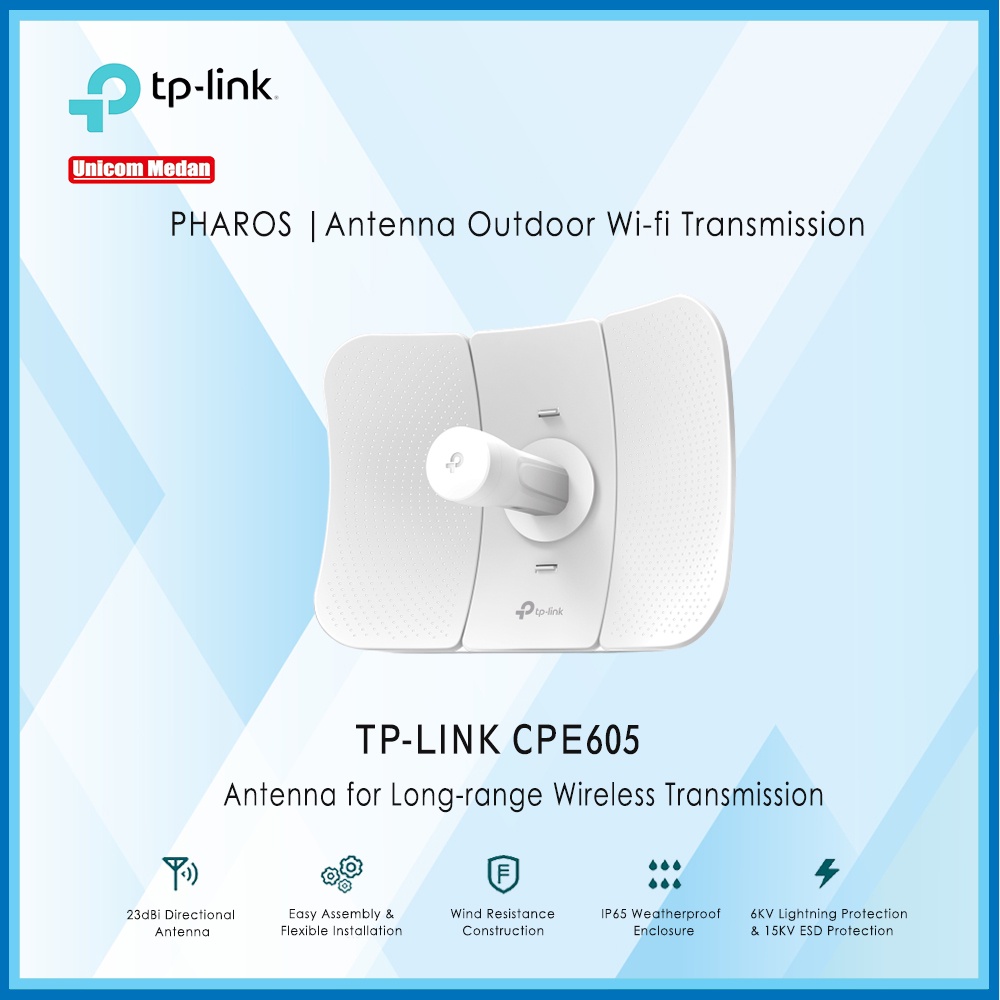

TP-LINK CPE605 5GHZ 150MBps 23Dbi OUTDOOR CPE
CPE605 Outdoor 5Ghz CPE series
• Antena mimo
• 150Mbps Data rate
• 23 dBi directional antenna
• support TDMA and centralized management
• AP/Client/Bridge/Repeater/AP Client/AP Router

HARDWARE FEATURES :
- Processor Qualcomm 560MHz CPU, MIPS 74Kc
- Memory 64MB DDR2 RAM,8MB Flash
- Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button
- Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
- Dimensions ( W x D x H ) 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
- Antenna Gain 23dBi
- Antenna Beamwidth 7°(Azimuth), 10°(Elevation)
- Protection 15KV ESD Protection
- 6KV Lightning Protection
- Enclosure Material: Outdoor PC stabilized plastic
- Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES :
- Wireless Standards IEEE 802.11a/n
- Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds Up to 150Mbps (40MHz,Dynamic)
- Up to 72.2Mbps (20MHz,Dynamic)
- Up to 36.1Mbps (10MHz,Dynamic)
- Up to 18.05Mbps (5MHz,Dynamic)
- Frequency 5.15~5.85GHz
- Transmit Power Max. 23dBm (Adjustable power by 1dBm)
