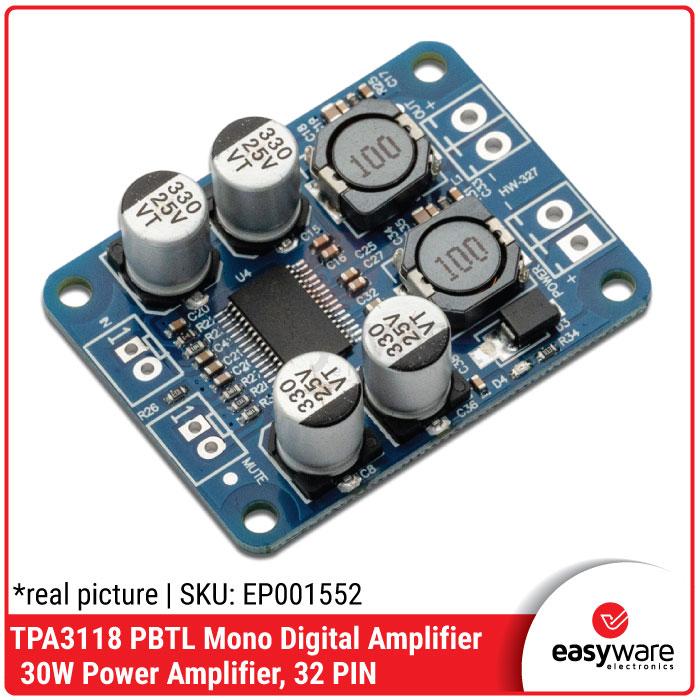

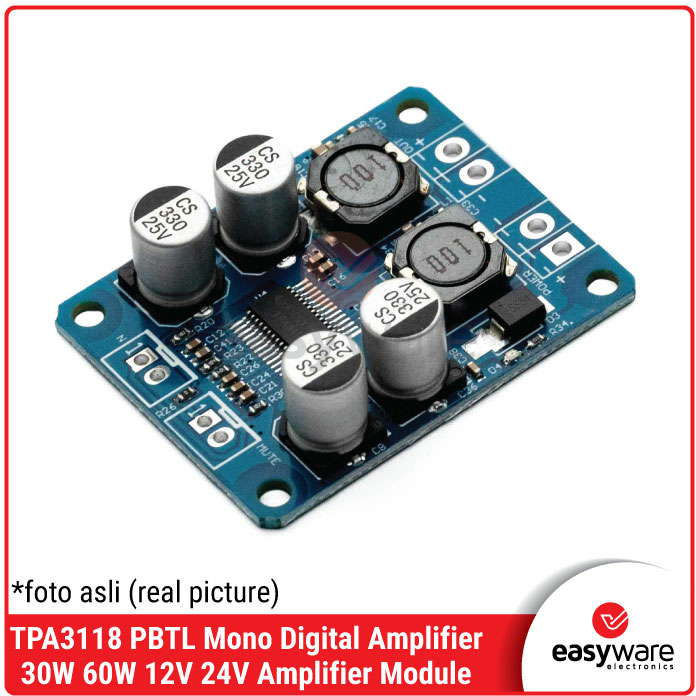

TPA3118 PBTL Mono Digital Amplifier Board

Detail TPA3118 PBTL Mono Digital Amplifier Board

Hi #RekanEasyWare ...
- EasyWare Part# [28P]: EP000389
- EasyWare Part# [32P]: EP001552

Note:
- Di pasaran, modul TPA3118 mempunyai 2 jenis, yakni ic 28pin dan 32pin. Untuk yang 28pin maksimal kisaran 30W dan 32pin itu 60W. Tapi banyak seller diluar sana yang menulis judul dan deskripsi itu 1x60W, padahal aktualnya itu 30W.
- Di toko kami, nanti akan mencoba mengadakan keduanya. Selama masih belum ada varian, itu berarti 30W dengan ic 28pin.
- Foto asli (real picture).

TPA3110 Mono Channel Digital Amplifier Board 30W Power Amplifier Module is useful in applications like DIY Bluetooth speaker, home and car audio system modification.

Fitur dan Spesifikasi:
- Amplifier Chip: TPA3110.
- Working Voltage: DC 8-26V.
- Output Power: 1 x 30W.
- Applicable Speaker Impedance: 4/6/8 ohm(8 ohms Best).
- PCB Board Size: 44 x 30 x 10 (LxWxH)mm / 1.65 x 1.18in.
- DC 8-26V TPA3110 PBTL Mono Digital Amplifier Board AMP Module 1x30W for Arduino.
- Single-channel digital power amplifier Board PBTL.
- Mono digital audio power amplifier chip.
- 30W output and low power consumption.
- Sound quality is very good by using this module.
- Applicable speaker impedance: 4/6/8 ohm(8 ohm is the best).
- Application: DIY Bluetooth speaker, home and car audio system modification.

Kelengkapan:
- 1x TPA3118 PBTL Mono Digital Amplifier Board 30W Power Amplifier Module

Gambar produk
