TPA3118 Class D 60Watt BTL Mono Digital Audio Power Amplifier Module 12v 24v class Xh-M313

Detail TPA3118 Class D 60Watt BTL Mono Digital Audio Power Amplifier Module 12v 24v class Xh-M313

Feature:
The sound quality is very good using this module.
Mono digital audio amplifier chip.
High output and low power consumption.
Applicable speaker impedance: 4-8 ohms (8 ohms is the best).

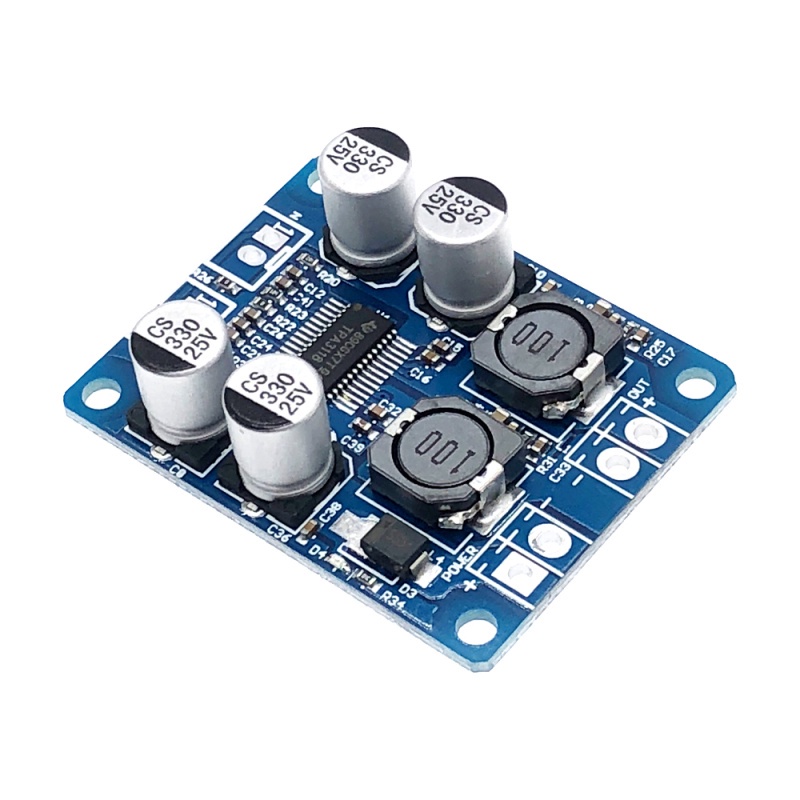

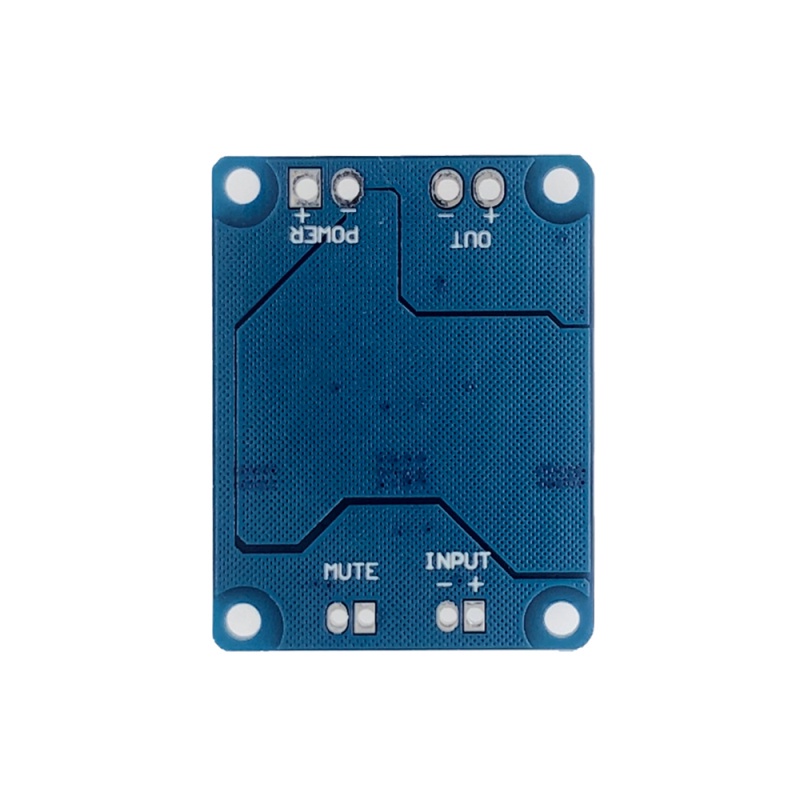

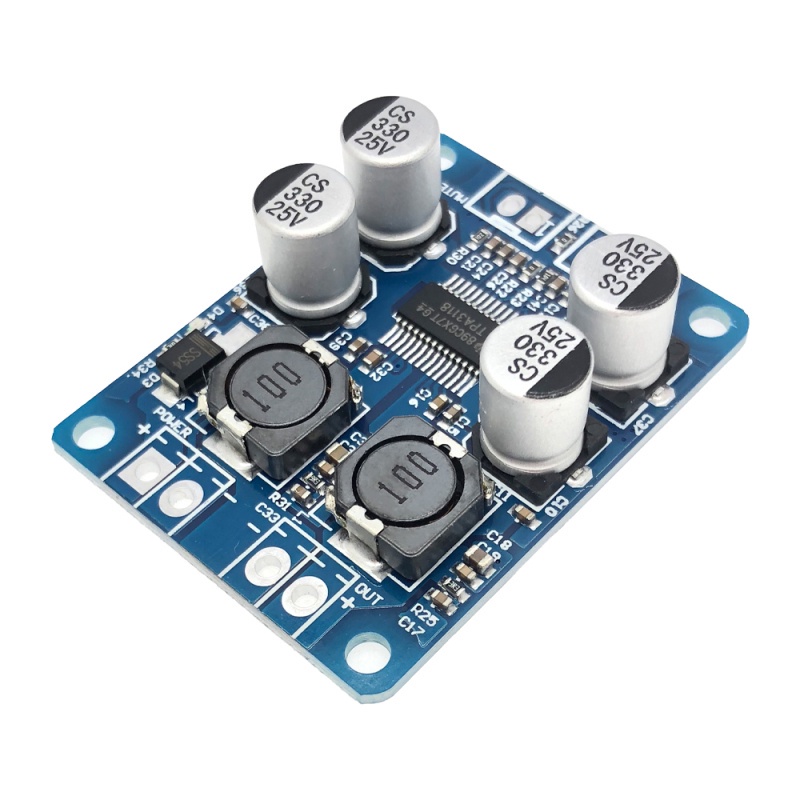

XH-M313:
Product specification:
Operating voltage: DC8-24V
Output power: 60W

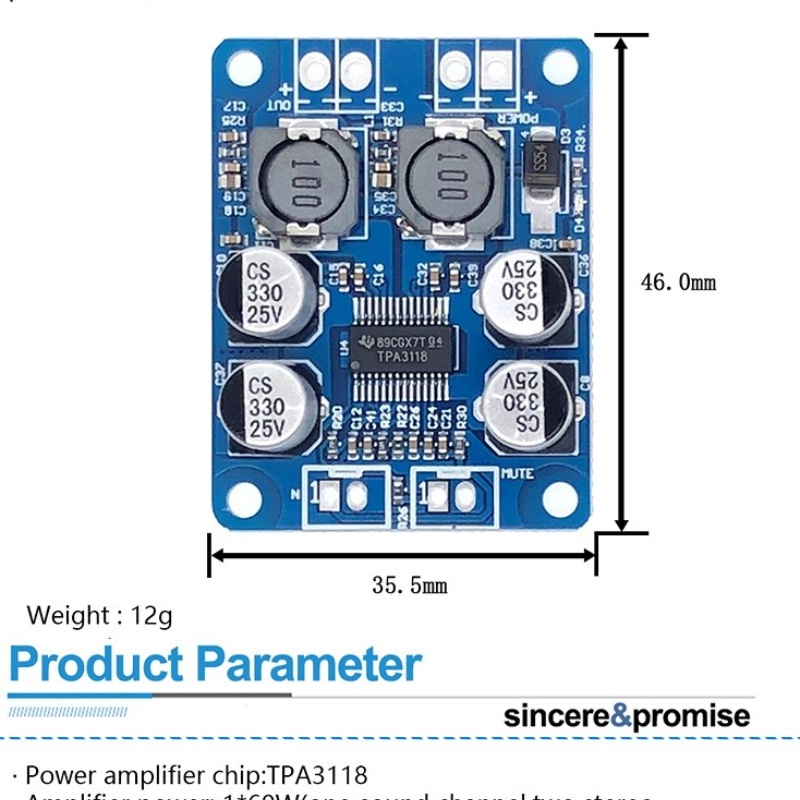

PCB board size: 45*35mm/1.77*1.4in
Weight: 12g/0.43oz
Size: 46 * 35 * 1.6mm (length, width and thickness)
Total height of board: 12mm
Packing list:
1 * Digital Amplifier Board


XH-M181:
Spesifikasi teknik:
1. Power Output : 2x10 watt (8 ohm) dan 2 x 15 watt (4 ohm)
2. Tegangan kerja : 6-15 Volt (recommended 12VDC)
3. Frekwensi range : 20-15 Khz
4. Quescent current : 20 ma
5. Eff : 90%
6. Speaker Impedance : 4-8 ohm
7. Low noise, low distorsion
8. PCB Size : 30 mm (Panjang) x 25 mm (lebar)
9. Proteksi : over load, over temperature, anti pop up protection.

XH-A232:
Application:Computer
Supply Voltage:DC8V-26V
Dissipation Power:30W+30W
Size:53*45*14mm
Channels:2 (2.0)
Output impedance:4-8ohm
Current: more than 3A
Signal to noise ratio: 100db

Gambar produk
