TPA3110 Class D Amplifier Dual Channel 30W + 30W dengan Heatsink
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > TPA3110 Class D Amplifier Dual Channel 30W + 30W dengan Heatsink
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail TPA3110 Class D Amplifier Dual Channel 30W + 30W dengan Heatsink
TPA3110 Class D Amplifier Dual Channel 30W + 30W dengan HeatsinkFeature:

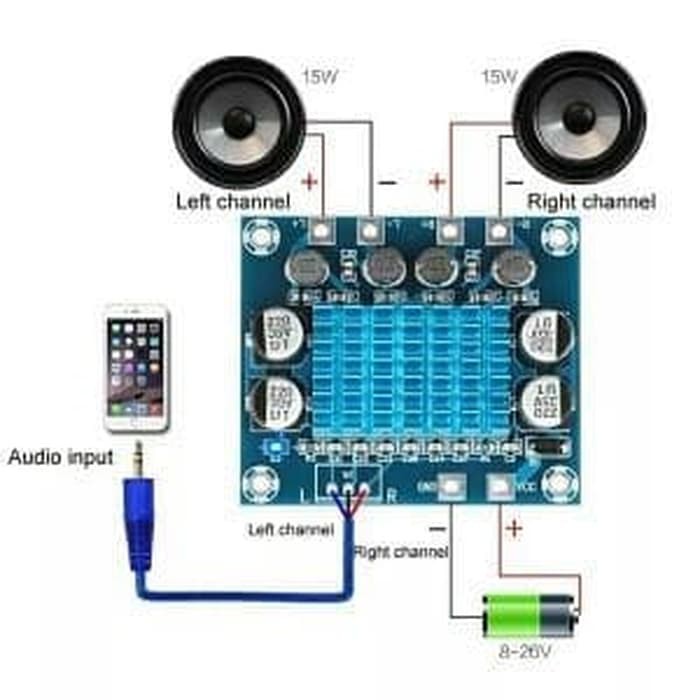

1. This power amplifier board must be powered by DC, requiring a good performance switching power adapter.
2. DC power supply: voltage DC12V-24V/current power greater than 2A, must distinguish positive/negative poles, do not exceed DC24V voltage to use, otherwise it will burn IC chips.
3. It can connect the speaker or speaker 4ohm or 8ohm, and the power is between 10W and 80W, depending on the size of the power supply, which determines the power of the speaker.

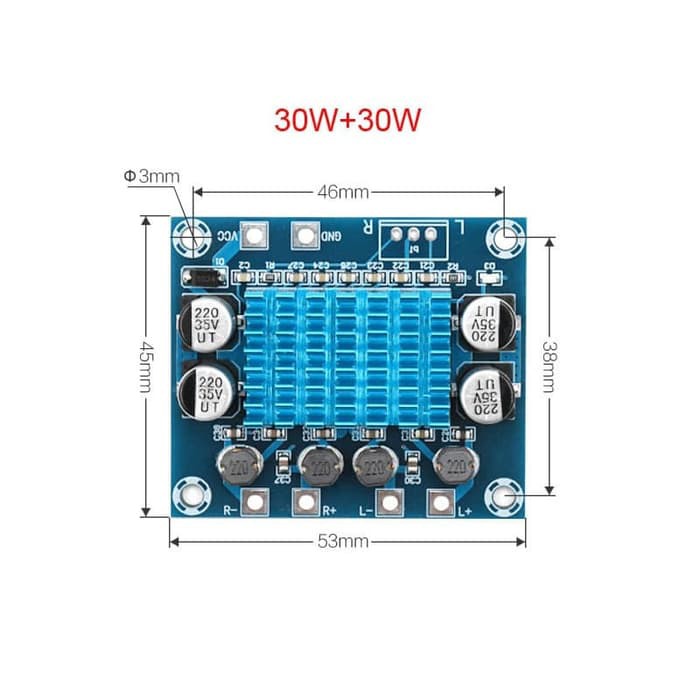

Size: 53*45*14mm
Package included:
1 x TPA3110 Class D Amplifier Dual Channel 30W + 30W dengan Heatsink

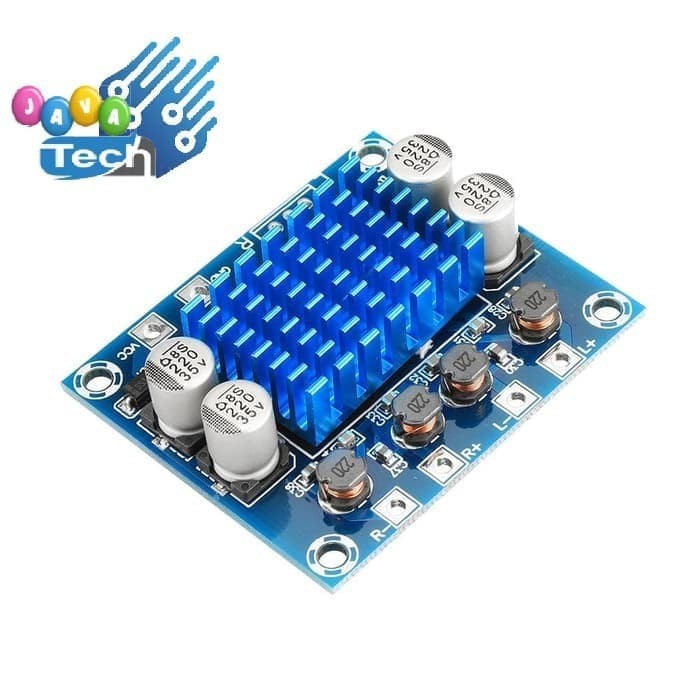

Gambar produk
