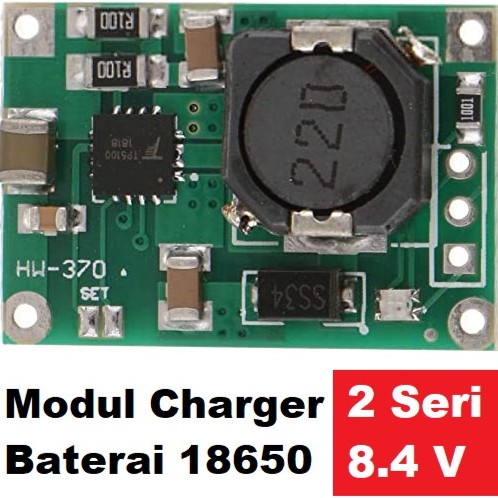

TP5100 Modul Charger 1-2 Cell Baterai 18650 1S/2S Battery Charging 2A

Detail TP5100 Modul Charger 1-2 Cell Baterai 18650 1S/2S Battery Charging 2A

Sebelum bertransaksi mohon diperhatikan Catatan Toko sebagai kesepakatan jual beli di Toko ini, karena pelanggan yang telah bertransaksi berarti menyetujui Catatan Toko tersebut.

Untuk informasi harga grosir termurah silahkan chat admin kami.

PENTING:
MOHON MENGIKUTI PETUNJUK INSTALASI PRODUK GAMBAR 3 DAN 4

Untuk aplikasi backup power supply UPS 2 baterai bisa dilihat pada gambar produk.

Features:
- Double 8.4v / 4.2v lithium rechargeable single
- Programmable charge current. 0. 1A-2A
- Programmable steady precharge current 10% -100%.
- Wide operating voltage, maximum reach 185
- Red and green LED charge status indicator
- Chip temperature protection, overcurrent protection, undervoltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
- Default settings: 4.2V 2A. The board has with LED, and LED's external reserve position.
- Size: 25 * 17 * 5mm ultra-small size
- Input voltage: 5-15V DC power supply
- Charge status: full and unloaded blue lights, charging red.

Maximum Ratings:
- Static input supply voltage (VlN): 20V
- BAI: -8.4V-20V
- BAT Short-Circuit Duration: Continuous
- Operating environment Temperature range: -40 -85
- Storage temperature range: -65 - 125

Gambar produk
