TP5100 Double Single Lithium Battery Charge 2A

Detail TP5100 Double Single Lithium Battery Charge 2A

Hi #RekanEasyWare ...
EasyWare Part#: EP000749

TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.

TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.

SPESIFIKASI :
- Static input supply voltage (VlN): 20V
- Input voltage: 5-18V DC power supply
- BAI: -8.4V-20V
- BAT Short-Circuit Duration: Continuous
- Operating environment Temperature range: -40 ° -85 °
- Storage temperature range: -65 ° - 125 °

APLIKASI :
- Portable equipment, various chargers
- Smartphone, PDA, mobile cellular telephone
- MP4, MP5 players, tablets
- HM
- Power Tools
- Walkie-talkie

KELENGKAPAN :
- 1pcs TP5100 double single lithium battery charge management compatible 2A rechargeable lithium plate

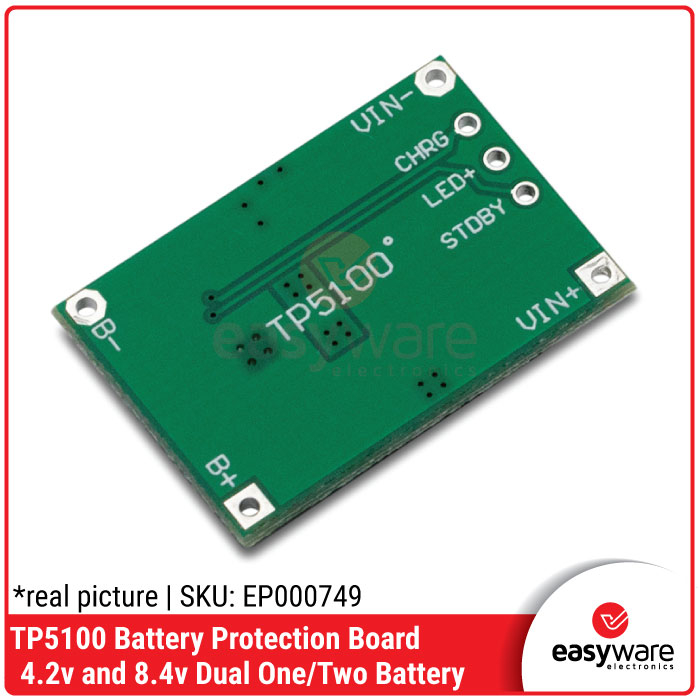

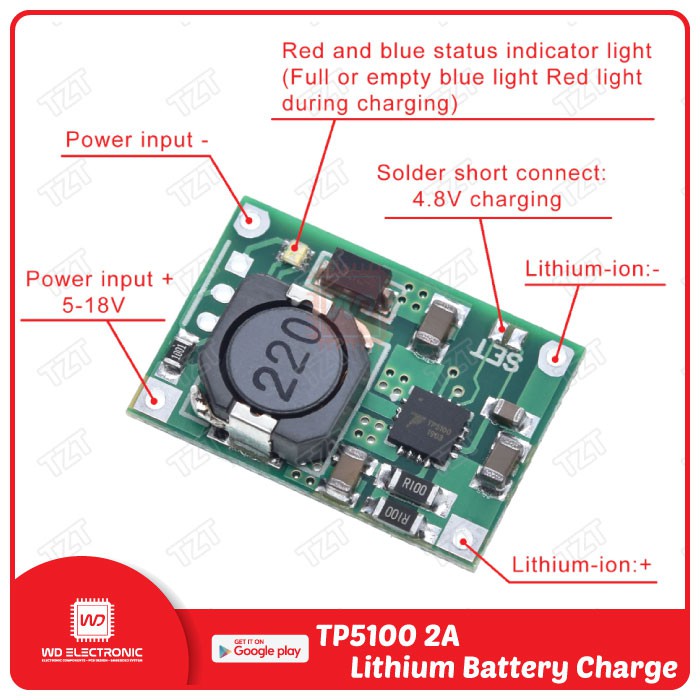

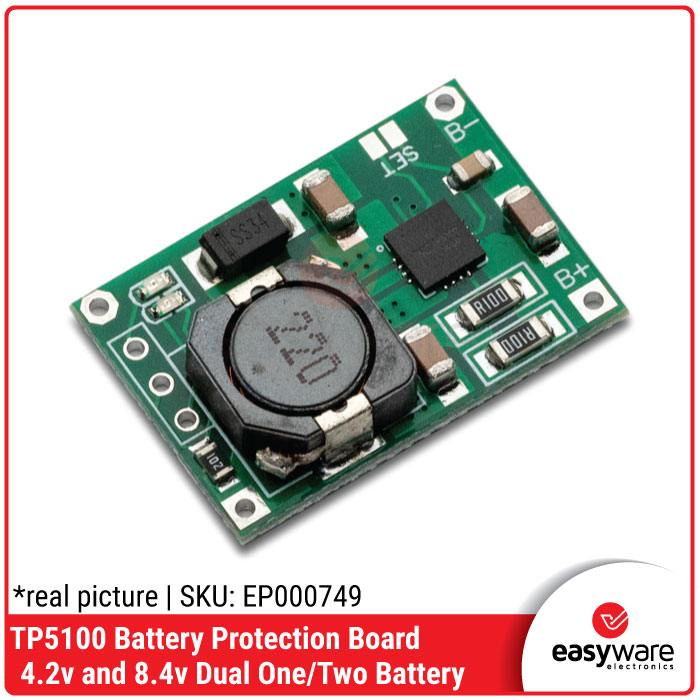

Gambar produk
