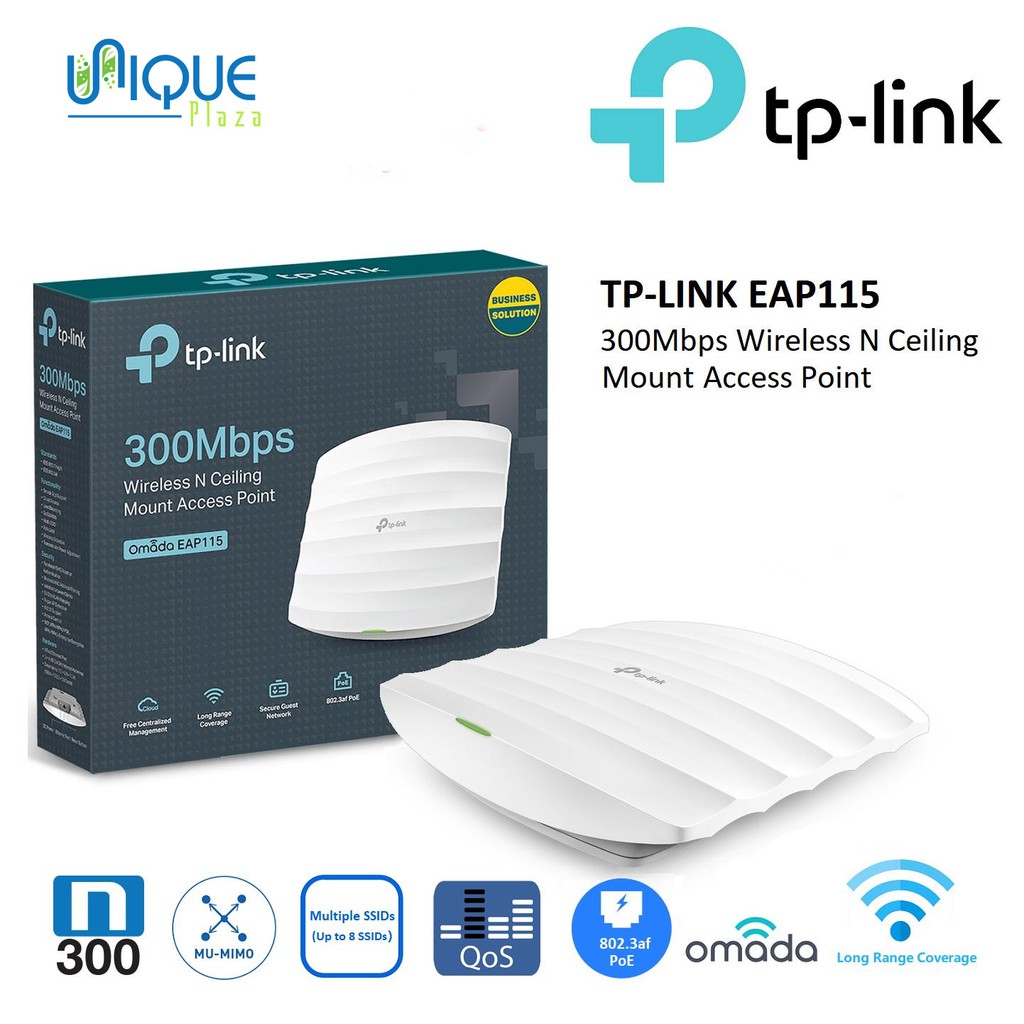

TP-LINK TPLink EAP115 : 300Mbps Wireless N Ceiling Mount Access Point

Detail TP-LINK TPLink EAP115 : 300Mbps Wireless N Ceiling Mount Access Point

HARDWARE FEATURES

Interface Fast Ethernet (RJ-45) Port *1Support IEEE802.3af PoE

Button Reset

Power Supply PoE or external 12VDC/1.0A power supply

Power Consumption 5W

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)

Antenna Type Internal 2* 3dBi Omni

Mounting Ceiling /Wall Mounting (Kits included)

Physical Security Lock Kensington Lock Slot

Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.4-2.4835GHz

Signal Rate 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 300M: -71dBm@10% PER

150M: -75dBm@10% PER

54M: -78dBm@10% PER

11M: -93dBm@8% PER

6M: -92dBm@10% PER

1M: -96dBm@8% PER

Wireless Functions Multiple SSIDs Up to 8 SSIDs

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control Adjust Transmit Power on dBm

QoS(WMM)

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power CE:

20dBm

FCC:

26dBm

MANAGEMENT

Auranet Controller Software Yes

Cluster Mode Yes

EAP Controller Software

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

Telnet Yes

Web-based Management HTTP/HTTPS

Management VLAN Yes
